Vividia UVW-K-6015 Joystick Articulation UV and White Light Video Borescope with 5" Monitor
Vividia UVW-K-6015 Joystick Articulation UV and White Light Video Borescope with 5" Monitor - 6mm diameter 1.5m long probe (Model: UVW-K-6015) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia UVW-K-6015 Joystick Articulation UV and White Light Video B...
UVW-K-8020 UVW-K-6015 joystick articulation video borescope has both white and UV light source.
- Joystick all-way articulation
- UV (365nm) lighting and white LED lights
- 8mm / 0.3" or 6mm / 0.24" Diameter heavy-duty metal-braided probe and camera head
- 1.5m /5ft, 2m / 6.6ft, or 3m/ 10ft long insertion probe
- Tungsten braided sleeve protected probe tube for durability and wear resistance
- 5" LCD display monitor with rechargeable battery
- HD camera resolution
UVW-K-8020 videoscope can be used for defect inspection in Non-Destructive Testing (NDT) and Fluorescent Penetrant Inspection (FPI) for remotely detecting surface flaws.
The probe length is customerizable from 1m to 30m, and probe / camera diameter can be either 6mm or 8mm. Conctact us for customerization discussion.
**********
- Both UV (365nm) and white illumination sources
- 1MP HD camera resolution
- 8mm diameter camera head and 2m / 6.6" long insertion probe tube
- 5" display screen and rechargeable battery
- Probes are exchangeable
|
Probe camera:
Camera Diameter(D): 8mm / 0.3" Carmera Head Length(L): 13±0.5mm View direction: Front view View angle(θ): 120° DOF: 10mm~200mm Pixel resolution: 1MP, 1280x720 Illuminating system: UV LED & White LED lights UV wavelength: 365nm Articulating: 360° full direction articulation Bending Angle(ɑ): 150°±10° for 1m long probe Waterproof IP grade: IP67 Working temperature: -20°C~70°C Insert tube length: 1m / 3ft Probe material: flexible tungsten braided sleeve |
|
|

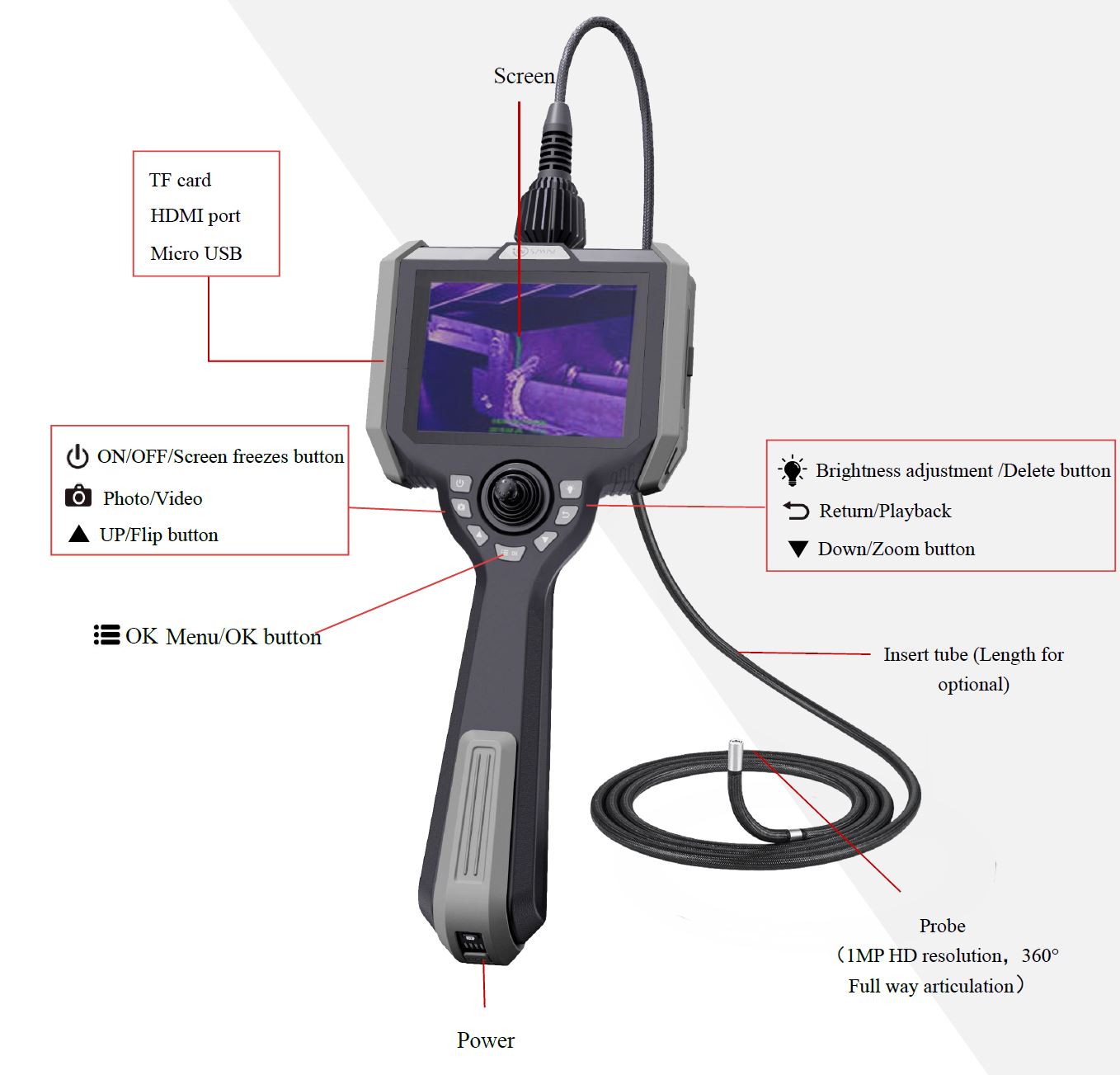

Monitor and control unit:
Dimension: 350*155*59mm Display: 5 inch industrial LCD screen Output ports: HDMI video output, Micro USB. TF card slot Storage capacity: up to 32G Power: rechargeable lithium battery pack, Work time: ≧4 hours Monitor IP grade: IP54 Working temperature: -10℃～50℃ Storage temperature: −20℃～60℃ Relative humidity: Max 95%，No condensation Operation System: Multifunctional operating system Operation method: navigation, snap and video button Support Function: freeze, zoom, photo, flip, video playback, analog ruler functions File Format: Image:JPEG（JPG)，Video:AVI Support Language: Chinese, French, English, German, Spanish, Italian, Japanese |
|
|
