Oasis Scientific  |  SKU: B-A-UV400

Vividia Ablescope UV-400 12mm Rigid One-Way Articulating UV Borescope

$599.98 USD
Shipping calculated at checkout.
UV-400 bundle options

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

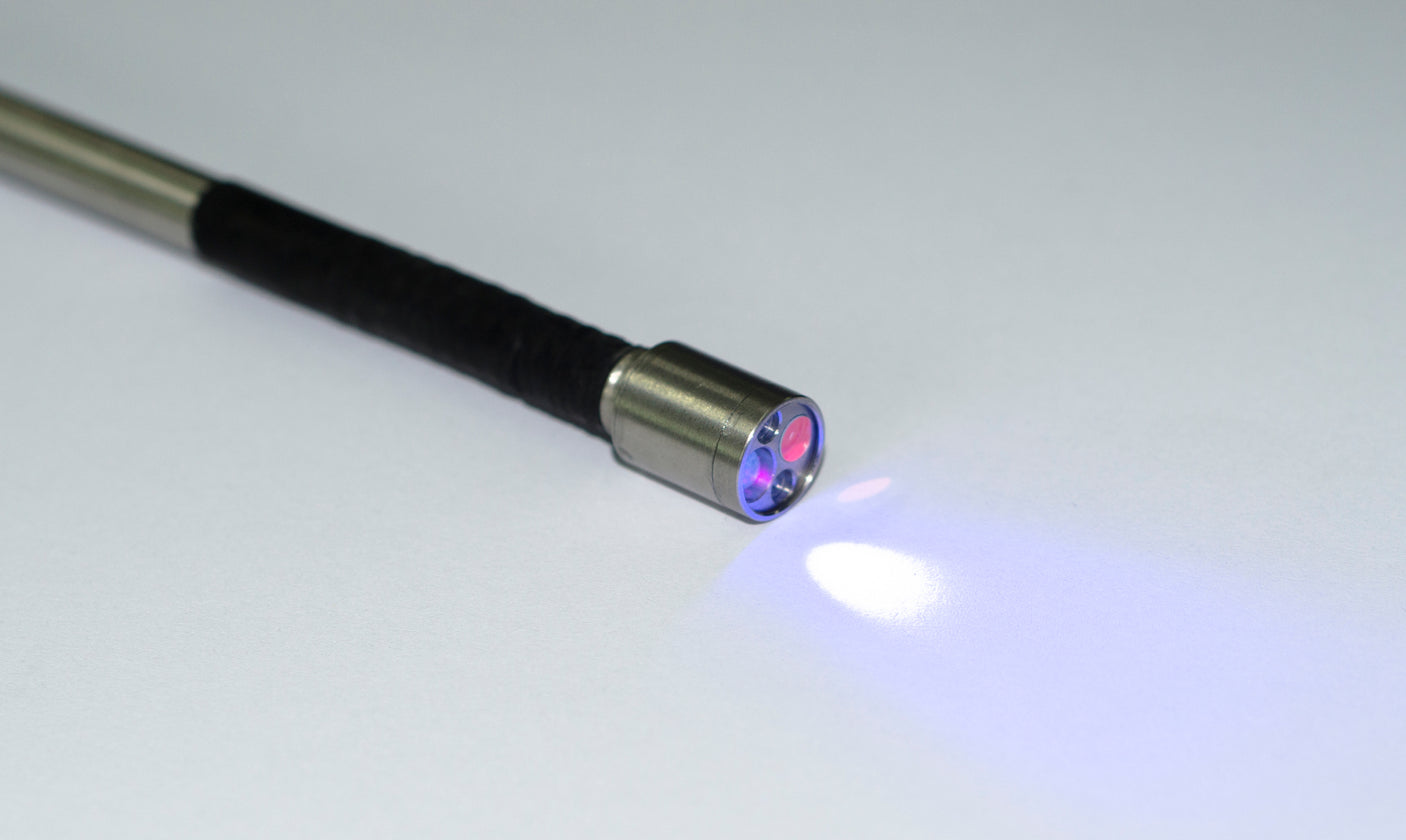

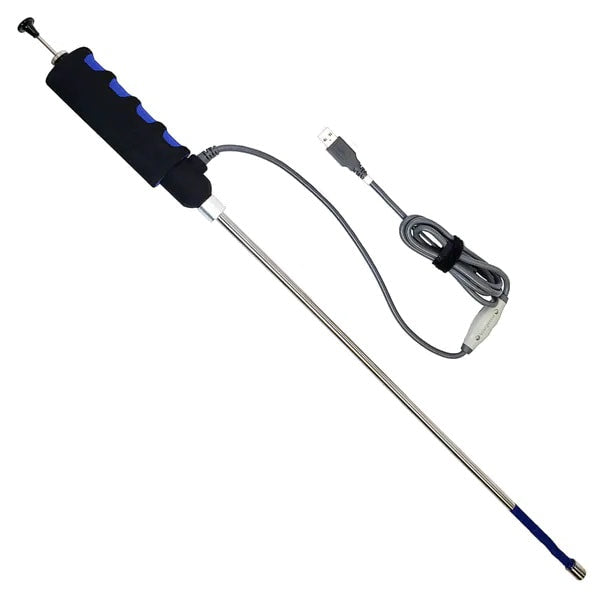

Vividia Ablescope UV-400 Articulating USB Digital Borescope With UV Light is designed to inspect hard to reach areas where both UV (Ultra-Violet) light and white light illumination are needed. Just like Vividia Ablescope VA-400, the probe camera tip can be bended from 0 to 180 degree to look back. One button to switch between white LED light and UV light, and white light intensity can be adjusted. The diameter of the camera probe is 12mm, and the rigid 400mm long stainless steel insertion tube has diameter of 8.5mm. This borescope inspection camera is suitable to check leaking, cracks, and defects inside industrial and medical cylinders, pipe and tubes, reactors, AC systems and containers.



Vividia Ablescope UV-400 Articulating USB Digital Borescope is designed to inspect hard to reach areas where both UV (Ultra-Violet) light and white light illumination are needed, especially one needs to see what is going on behind a wall and UV light can reveal more (with help of fluorescent leak detection dyes). This borescope inspection camera is suitable to check leaking, cracks, and defects inside industrial and medical cylinders, pipe and tubes, reactors, A/C systems and containers. This is a very handy supplement tool for AC technicians and mechanics using current leak detection kit.  ​

Features:
1, Articulation bendable angle: from 0° to 180° continuously
2, Easy one-hand operation to adjust  articulation angle
3, The articulation angle can be locked/unlocked at any degree by turn on/off locker (turn the wheel to lock, press to unlock; press and turn clockwise to put the locker in unlocked position)
4, Very small bending radius
5, Two pcs high intensity white LED lights illuminate more than 200 lumens at about 200mm distance
6, Ultraviolet light wavelength is a 375 nm LED,  switchable with white LED lights
7, Long depth of field from 30mm to 300mm
8, Work with: Windows XP, 7, 8, 10 and MAC and selective Android devices, plug & play


SPECIFICATION
​
1. Sensor: high-quality CMOS sensor
2. Resolution: 640X480
3. Interface: USB2.0.
4. Frame rate: 30 frames/sec (CIF and VGA)
5. Focal distance: 30mm - 300mm
6. Optical lens view angle: 60°
7. Photo format： JPG
8. Bright LED light: 2 pcs, white color
9. Brightness at 200mm distance: more than 200 lumens
10. Ultraviolet light LED: 1 pc, 375nm
11. Diameter of camera probe tip: 12mm
12. Diameter of metal tubing: 8.5mm
13. Length of insertion: 400mm
14. Articulation bendable angle: 0° to 180° adjustable
15. Angle locker: can be locked/unlocked at any angle
16. Articulation bendable radius: 40mm
17. Working temperature: 10° to 60°
18. Storage temperature: 0° to 50°
19. Manufacturer warranty: 1 Year
20. Software for Windows: Vividia Ablescope Viewer; Digital Viewer; ehe1
21. Software for Mac OS: Photo Booth; Digital Viewer for Mac; App for Androids: CameraFi, OTG View


With VA-B2 AirBox wifi converter and our free app "AirBox - Vividia Ablescope", ​this borescope can be used on iPhone/iPad.

Applications:
  • A/C Systems -- Evaporator/Condenser, Hoses, Compressor
  • EVAP System
  • Engine Oil, Transmission, and Power Steering Fluid
  • Coolant and Fuel Systems
  • Can use together with UV fluorescent dyes for leaking detection
  • Can use together with fluorescent dye penetrants for small crack inspection of welding or forging parts
The UV light has a peak at 375nm.
We can do custom design and manufacturing. Contact us if you have special needs to discuss.
