Vividia DV13-45PD-E300 Underwater Borehole Inspection Camera System with 360 Degree Rotation Dual-Camera Probe 300m Cable Electrical Winch
Vividia DV13-45PD-E300 Underwater Borehole Inspection Camera System with 360 Degree Rotation Dual-Camera Probe 300m Cable Electrical Winch is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia DV13-45PD-E300 Underwater Borehole Inspection Camera System...

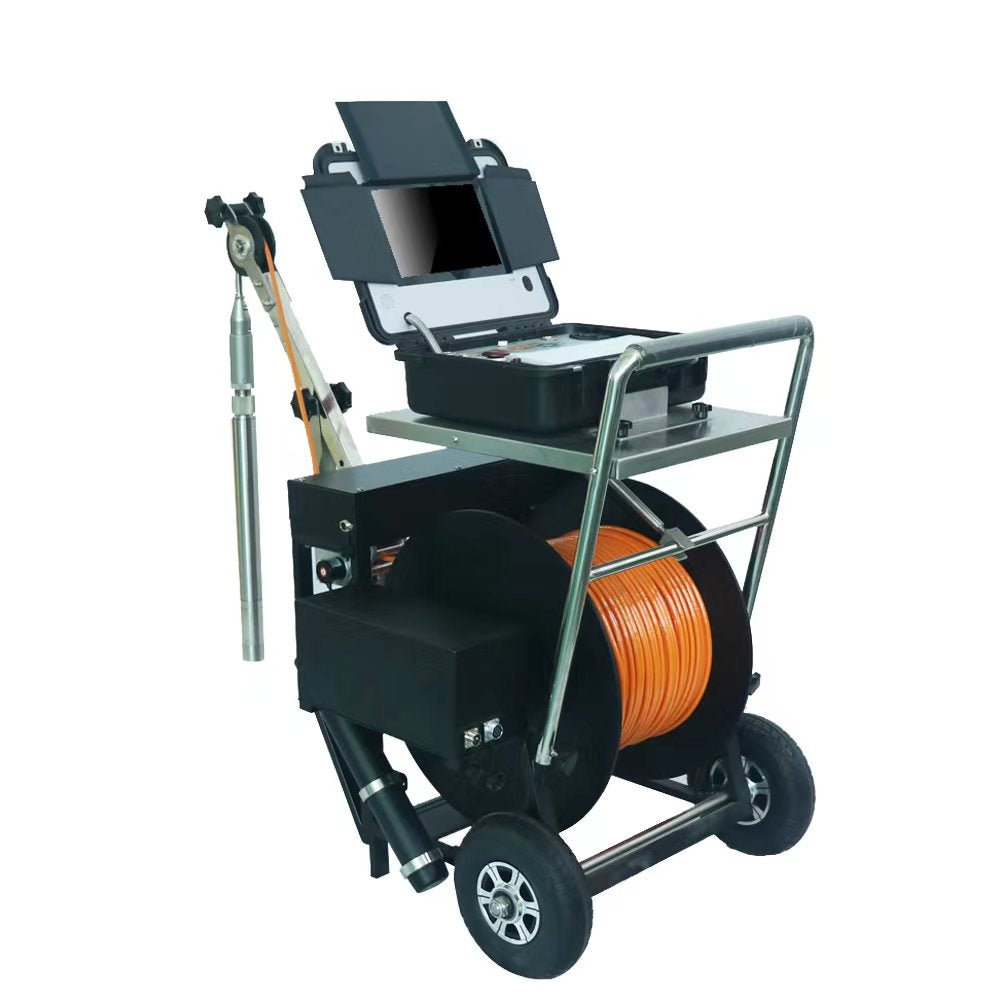

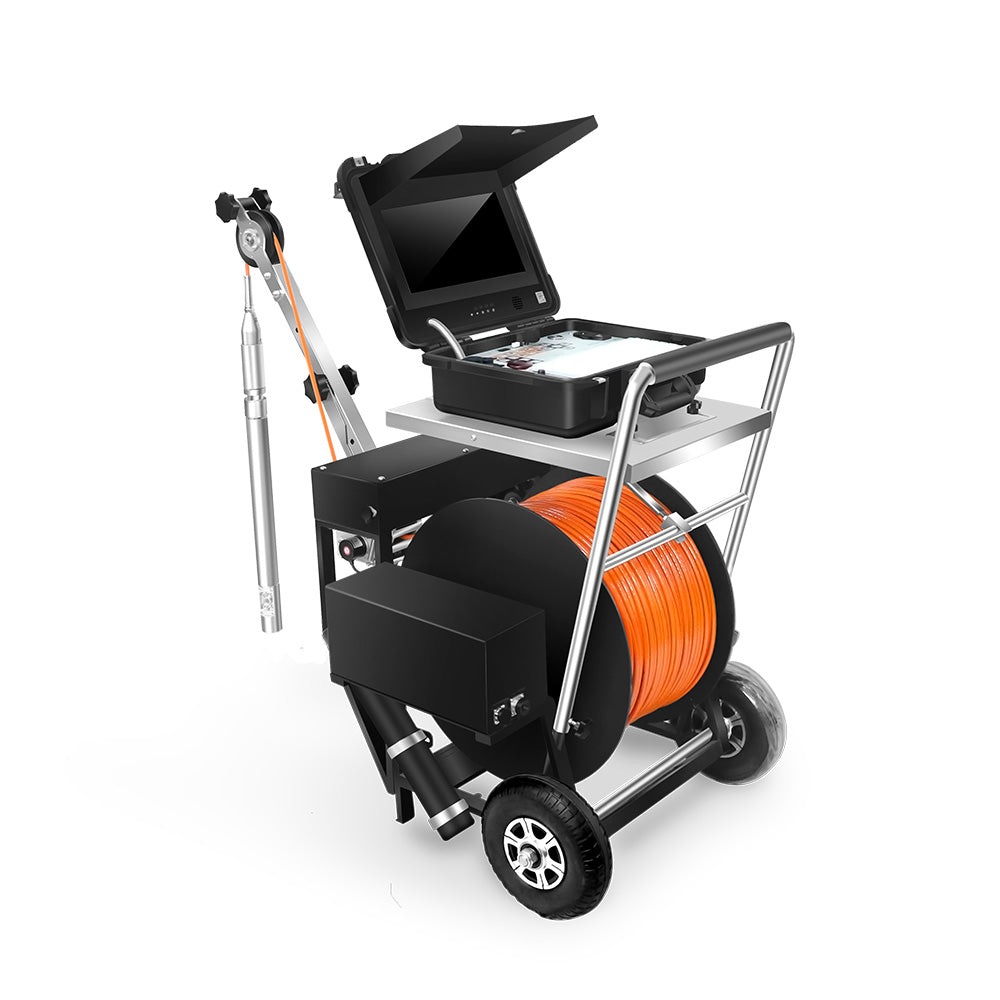

Vividia V13-45PD-E300 Underwater Borehole Inspection Camera System is a complete inspection camera system for water wells, boreholes and down hole examination. The DV13-45PD-E300 Inspection Camera System includes one 45mm diameter 360 degree rotation dual-camera probe head, one DVR control unit and one electrical cable winch. The power supply for the electric winch is AC110V-240V. The control unit is equipped with a built-in 8800mA battery. The probe head is 45mm diameter and 570mm long steel casing for underwater 50 bars (729 psi, underwater 500m) with two cameras, side-view and front view and 360 degree rotation.
The cable is 10mm in diameter and can be purchased in 100 meter, 300 meter, and 500 meter lengths. The standard model is 300m version with the model number as V13-45PD-E300.
- Weight for 300m model: 315 lbs gross weight
- Wood contruction box
- Heavy and bulky package!
|
Applications: Drilling hole, deep well, water well, borehole inspection, down hole
Cable length options: 100 meter to 600 meter.
Standard product is 300 meter long cable. Contact us if you need longer or shorter cable. |
|
|
|
Features:
1. Diameter 45mm dual (Side/down) camera 2. Waterproof up to 50 bars (725 psi); suitable for underwater 500 meter 3. 360 degree rotation camera probe 4. 10 inch LCD monitor, DVR control box 5. Cable length 300m (maximum can be 500 meter, customization needed) 6. Electrical winch cable reel 7. Depth counter |
|
|

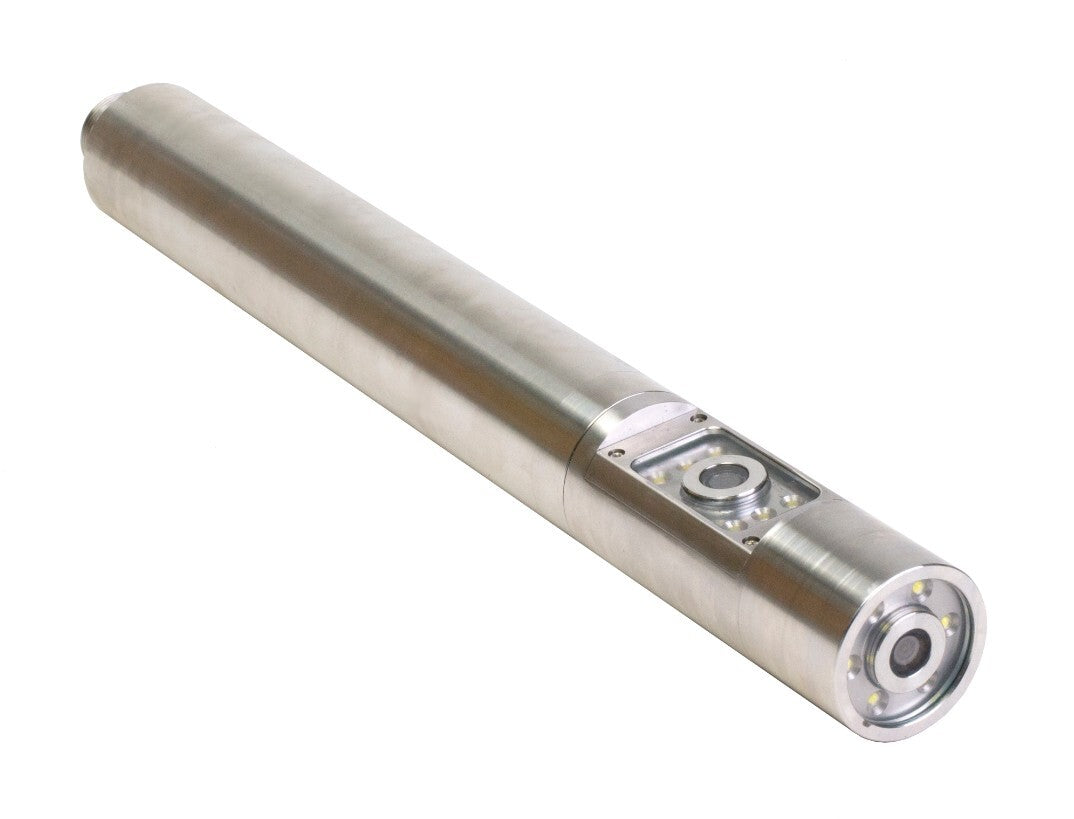

Main Part 1: 45mm dual view camera probe head
Φ45mm L570mm Stainless steel casing Waterproof IP68 with operating depth pressure 50 bars (725 PSI) Dual Camera Down & Side viewing Pan 360° rotation Field of view angle 120° Sensor resolution PAL 720H×576V NTSC 720H×480V Horizontal resolution 700 TVL 6 pcs high light LED (down view) 6 pcs high light LED (side view) Camera weight: 6KG |
|

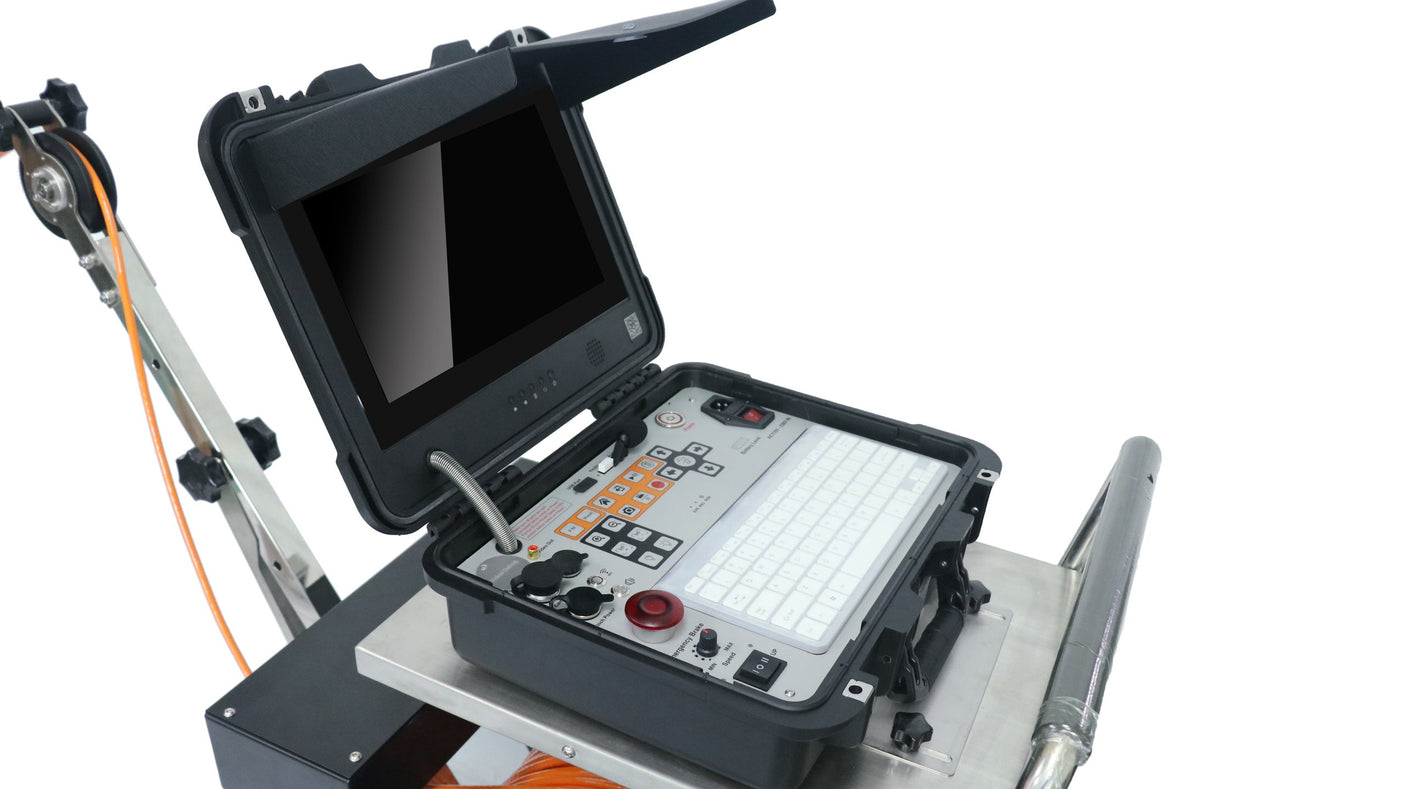

Main Part 2: DVR control unit
13" industrial LCD color monitor Display model 4:3 Resolution 1024*768 Menu language 9 languages optional Control Panel Video input option: Borehole Camera or Pan & Tilt Camera Winch operating knob（adjusting speed, cable up and down, brake） Camera rotation control button (clockwise and counterclockwise) Down and side camera select button and LED brightness control button HD DVR Audio/Video recording & playback Video storage Medium: Built in 128GB SSD or USB device On-screen depth encoder, temperature and direction Built in WIFI transmitter Using intelligent terminals as display and recording device Transmitter distance 30m Through WIFI wireless transmit video to Android, Apply OS or MID terminal |
|
|

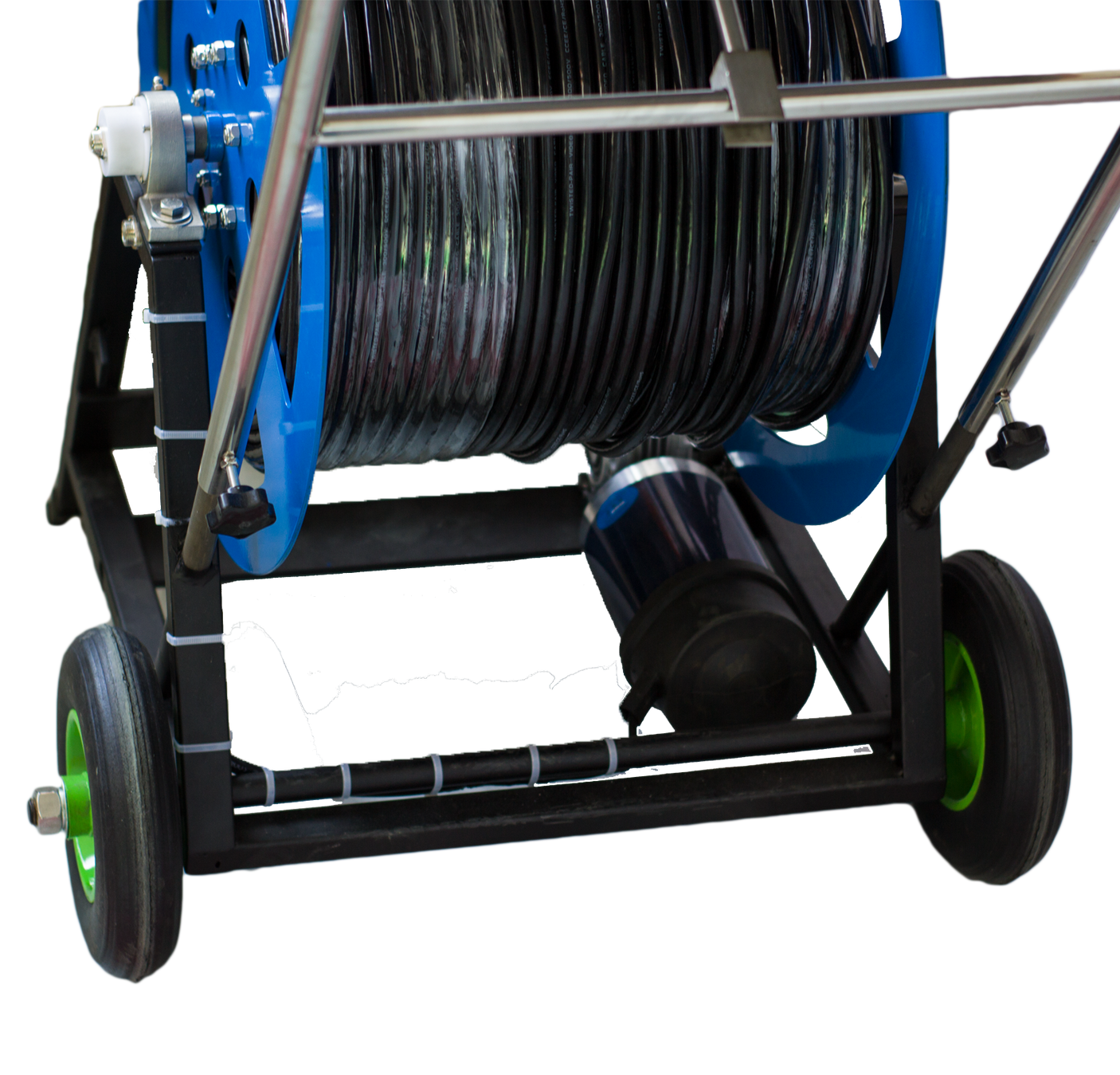

Main Part 3: Electrical cable winch
Winding speed：0~20m/min Cable speed adjustable Φ10mm twisted pair cable (100m-500m option) 300 meter long cable Power supply AC 110V to AC230V, DC12~24V On screen depth encoder Electric cable rolling
|
|
|
Shipping package size and weight: Gross weight: 315 lbs Dimension (LxWxH): 36x36x33 inch Package: Wooden box Heavy and bulk, ground shipping by freight only. |
 |
