Vividia YB Series Heavy Duty High Clarity Videoscope Borescope Endoscope with 4-way or 2-way 2.8mm to 6mm Articulating Camera Probe and 3.5" LCD Monitor
Vividia YB Series Heavy Duty High Clarity Videoscope Borescope Endoscope with 4-way or 2-way 2.8mm to 6mm Articulating Camera Probe and 3.5" LCD Monitor - 3.9mm diameter 3m long probe is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia YB Series Heavy Duty High Clarity Videoscope Borescope Endo...

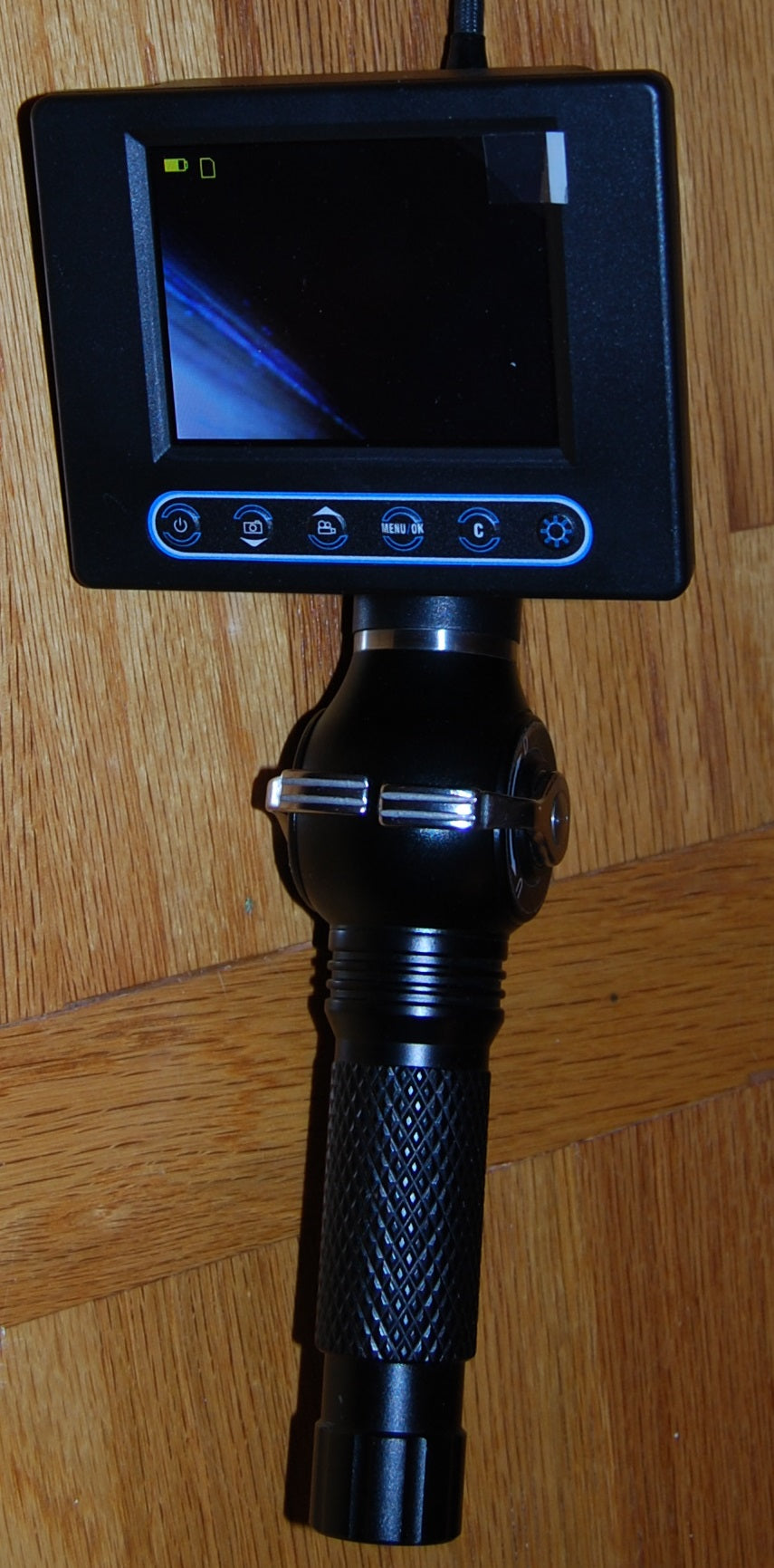

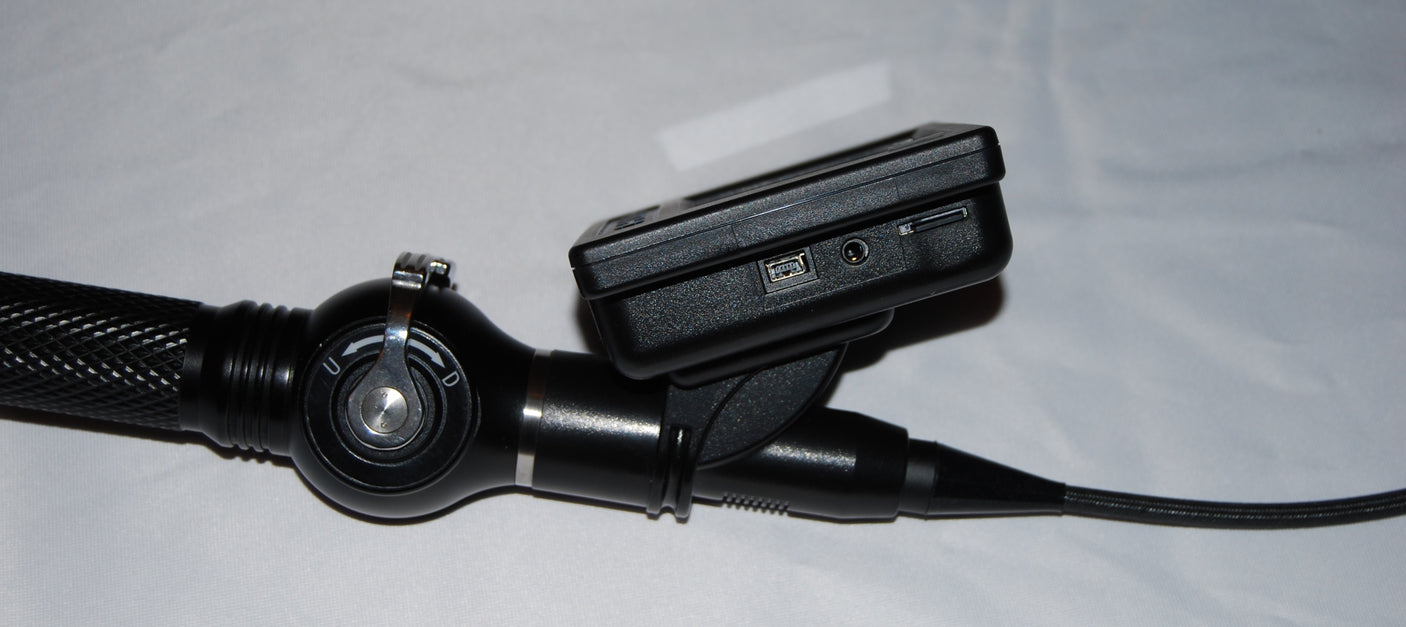

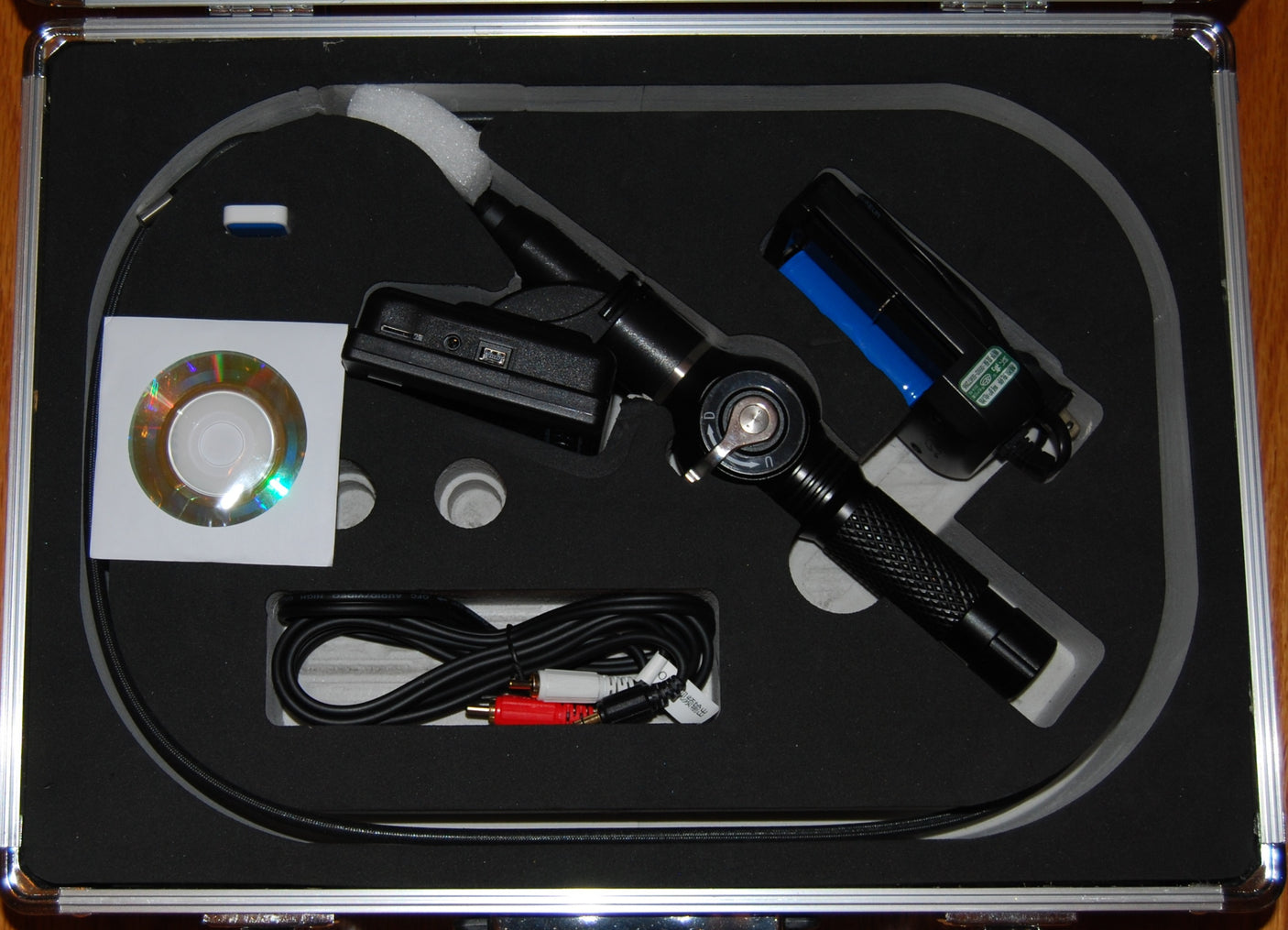

Ideal for industrial detailed visual inspection in hard-to-reach places with 4-way or 2-way articulating 2.8mm to 6 mm diameter probe, 4.1 ft (1.2 meter) to 9ft (3 meter) long flexible cable, 3.5" LCD monitor, and photo & video capture capability. The cable outside sleeve is made from tungsten mesh for maximum wear resistance. The cable camera is water proof, oil proof, acid proof and alkaline resist. The handle and monitor are heavy duty metal construction for durable use. The package comes with a heavy duty metal tool box, high quality lithium rechargeable battery.

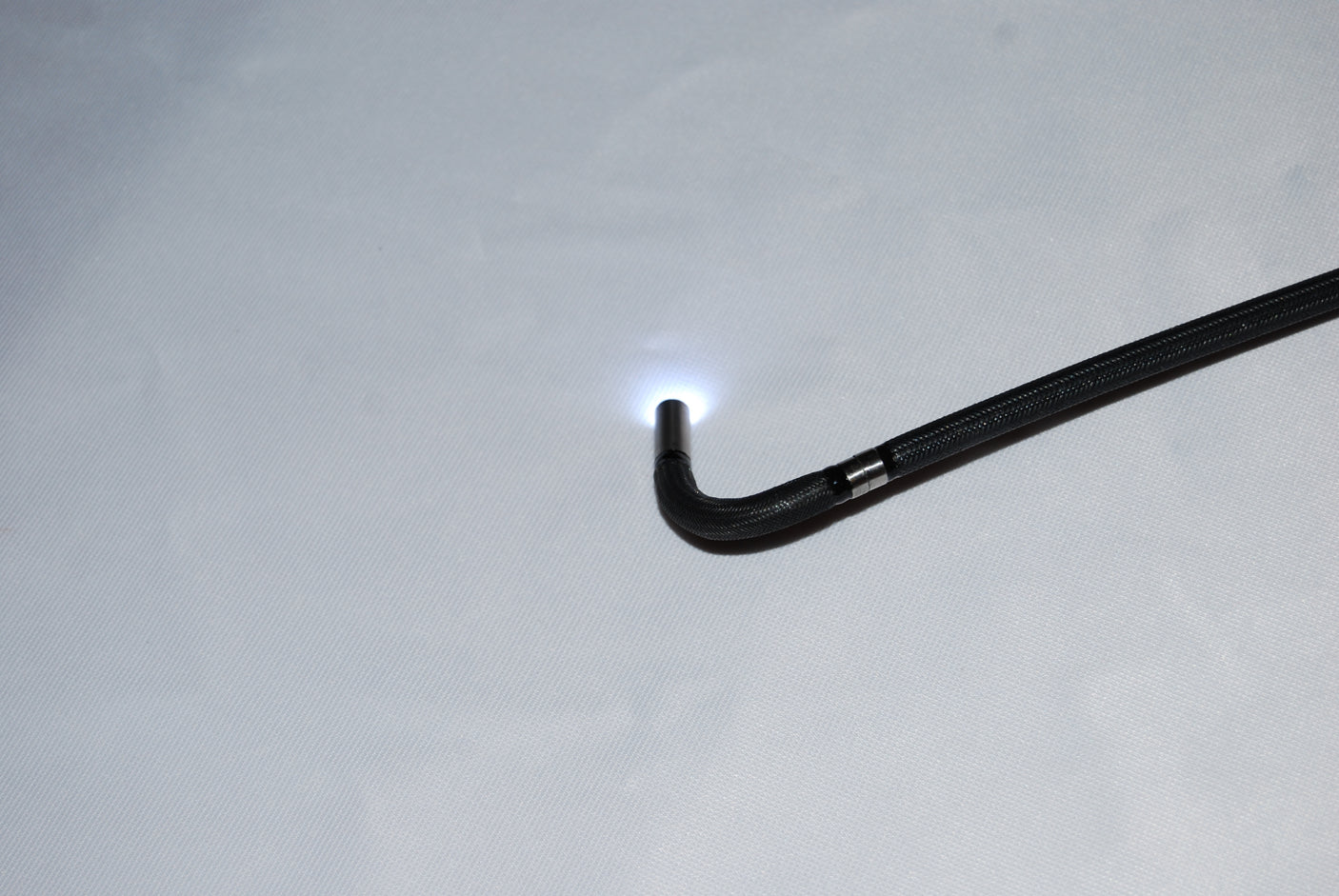

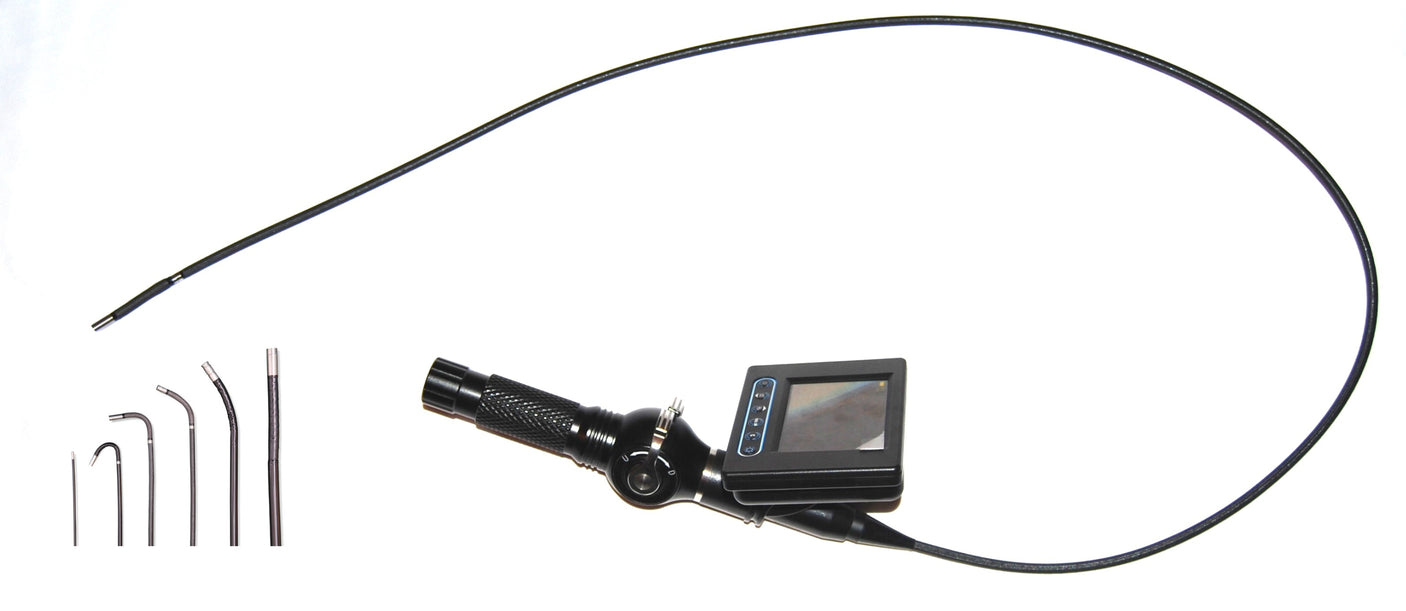

The borescopes with 2.8mm and 3mm diameter probe cameras are 2-wat articulating (up and down). While other borescopes with 3.9mm or 6mm diameter probe cameras are 4-way articulating (up and down, left and right)
All Vividia YB series borescopes are water proof (IP65 or better). The insertion tube is protected with either tungsten braided mesh or polyurethane layer.
The borescopes with 2.8mm diameter probe cameras have PVC
|
|
1. Vividia YB series industrial videoscope has ultra light weight, and the weight of the entire equipment is less than 0.7kg.
2. All the operations can be finished with just one hand, such as tip bending and image processing, etc.

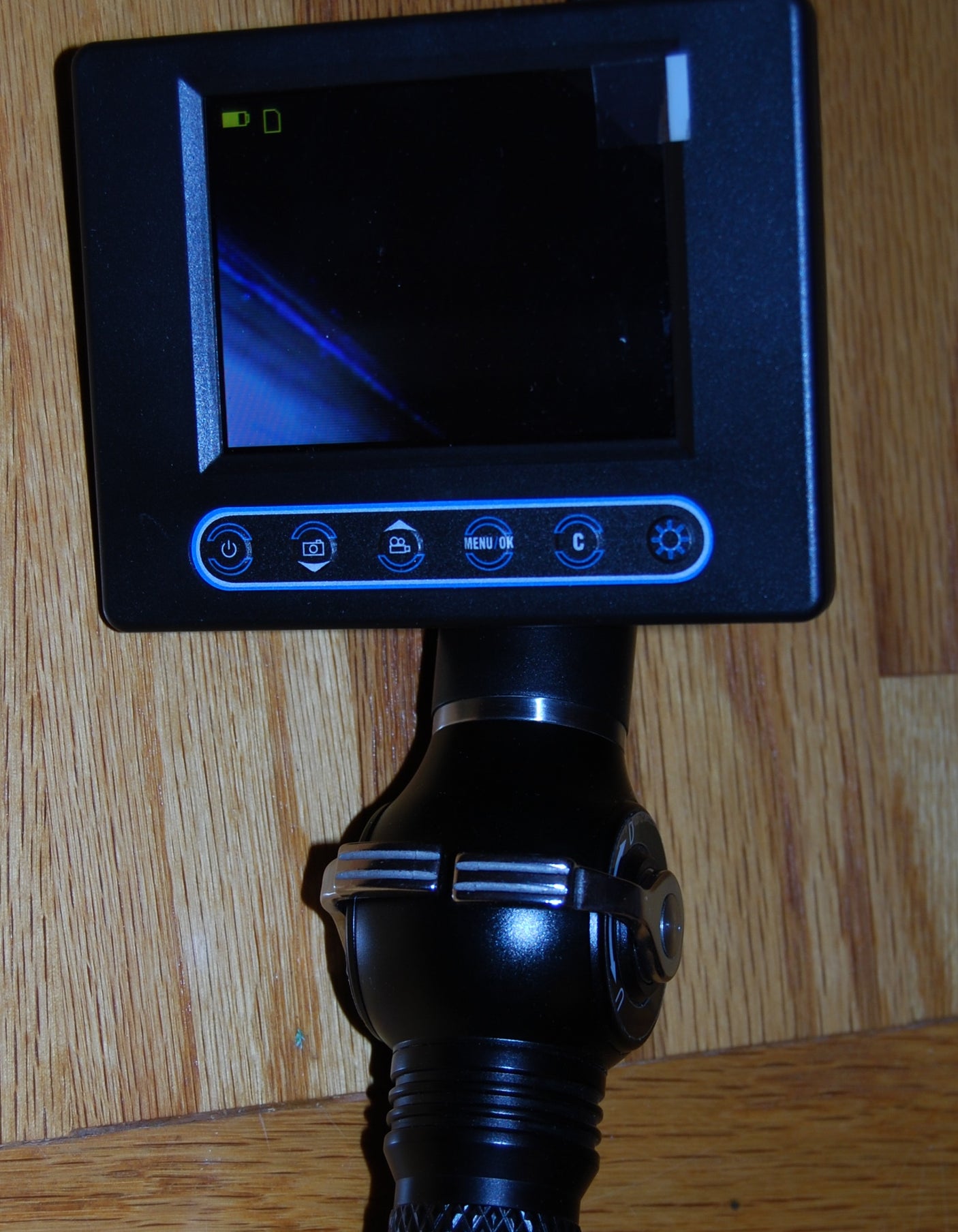

3. Clear color images can be displayed by the 3.5-inch high resolution (800x600) LCD.
4. Metal body construction for tough handlings and environments
5. The products have only 5 buttons, and the operation is simple and convenient.
6. DC power supply is achieved by lithium battery which is easy to change.
| Outer Diameter | Forward View | Φ2.8mm/3.0mm | Φ3.9mm | Φ6mm | |||
| Forward View / Side View | - | Φ4.0mm | - | ||||
| Camera | Pixel Count | 160,000 pixels | 300,000 pixels | ||||
| Lightness | Normal / dark | ||||||
| White Balance | Auto / manual | ||||||
| Optical System | Field of View | 50° | 90° | 50° | 90° | 50° | 80° |
| Depth of View | 50mm~∞ | 8mm~150mm | 50mm~∞ | 8mm~150mm | 50mm~∞ | 10mm~100mm | |
| View Direction | Forward | Forward | Forward / side | Forward / side | Forward | Forward | |

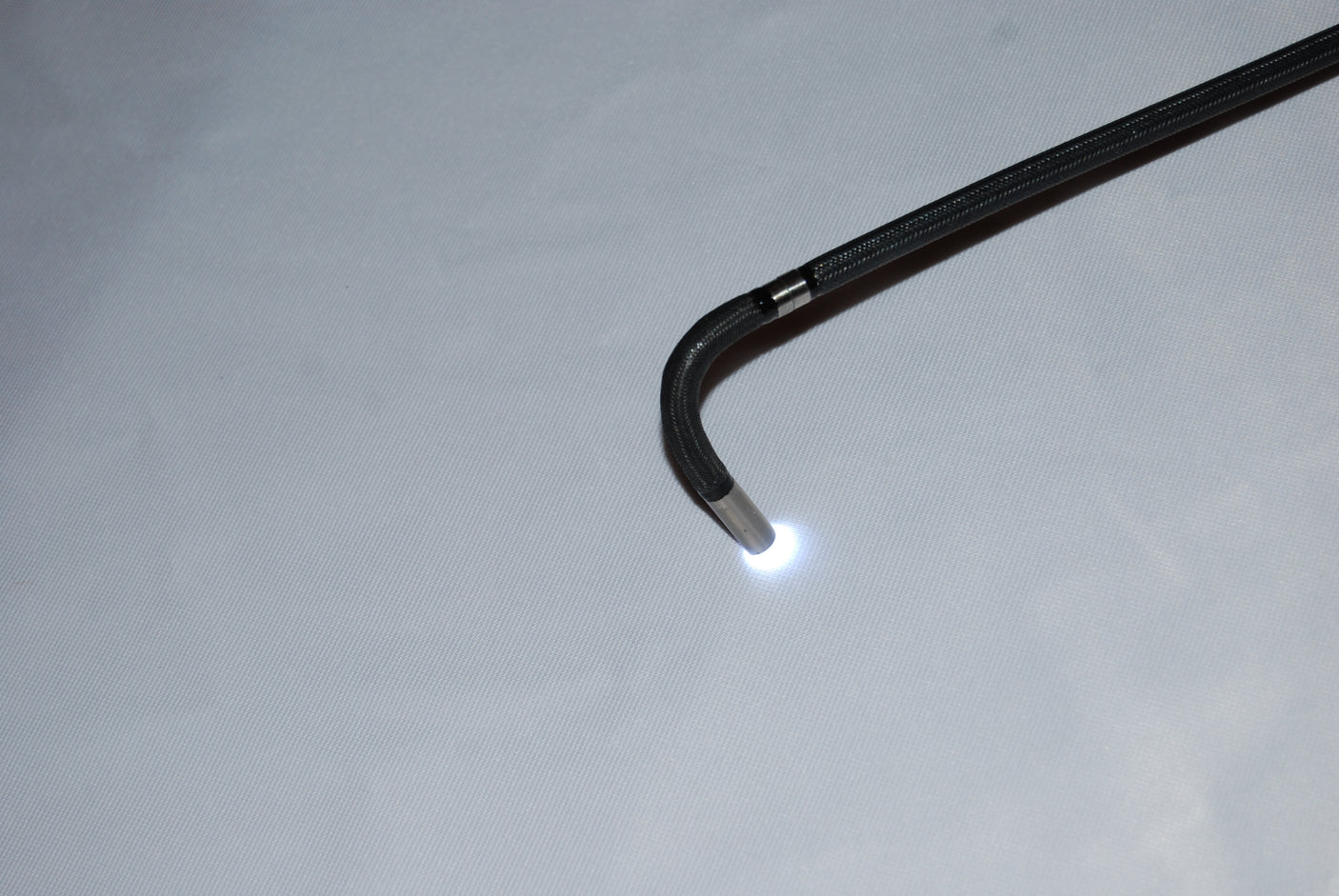

| Articulation Angle | 2-way, up / down ≥120° | 4-way, up / down / left / right ≥120° | |||||
| Length of Distal End | ≤8mm | ≤8mm | ≤8/11mm | ≤8/11mm | ≤16mm | ≤16mm | |
| Insertion Tube | Polyurethane | Polyurethane / tungsten mesh | |||||
| Working Length | 1000mm | 1200mm | |||||
| Handset | |||||||
| Monitor | 3.5-inch high resolution 800x600 color LCD | ||||||
| Control | Brightness adjusting and image processing | Tip bending, brightness adjusting, and image processing | |||||
| System | |||||||
| Power Supply | DC (battery) | Lithium battery: working time ≥1.5 hours | |||||
| Charging time: 8~10 hours | |||||||

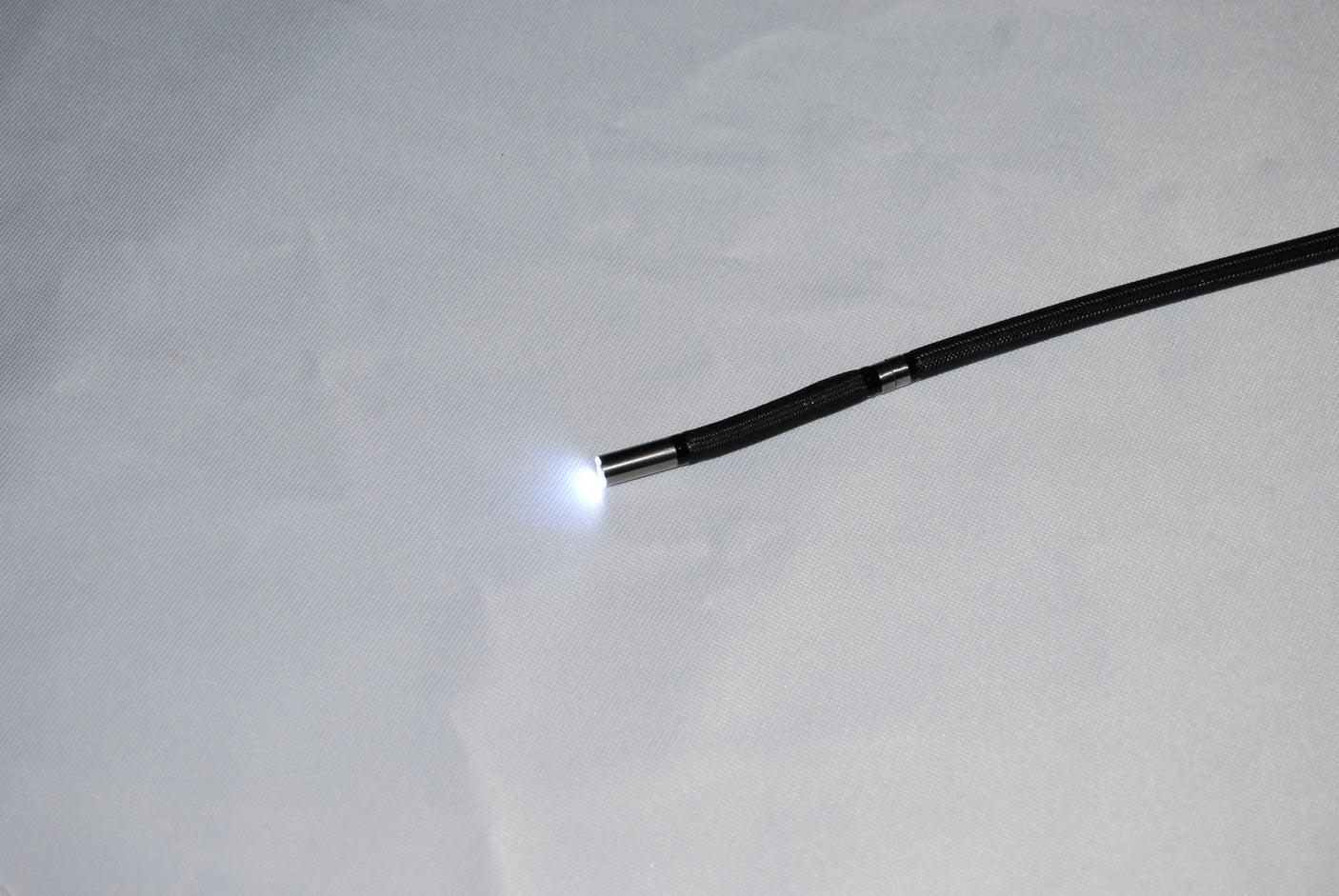

| Illumination | High-power LED with fiber light guide | ||||||
| Max. Visual Range | ≥330mm | ≥330mm | ≥330mm | ≥330mm | ≥330mm | ||
| Memory Card | 2G TF card (provided), max. 16G (optional) | ||||||
| Memory Capacity | JPEG: 60KB. 1G TF card is able to record video for 4 hours. | ||||||
| Video Output | Composite | ||||||
