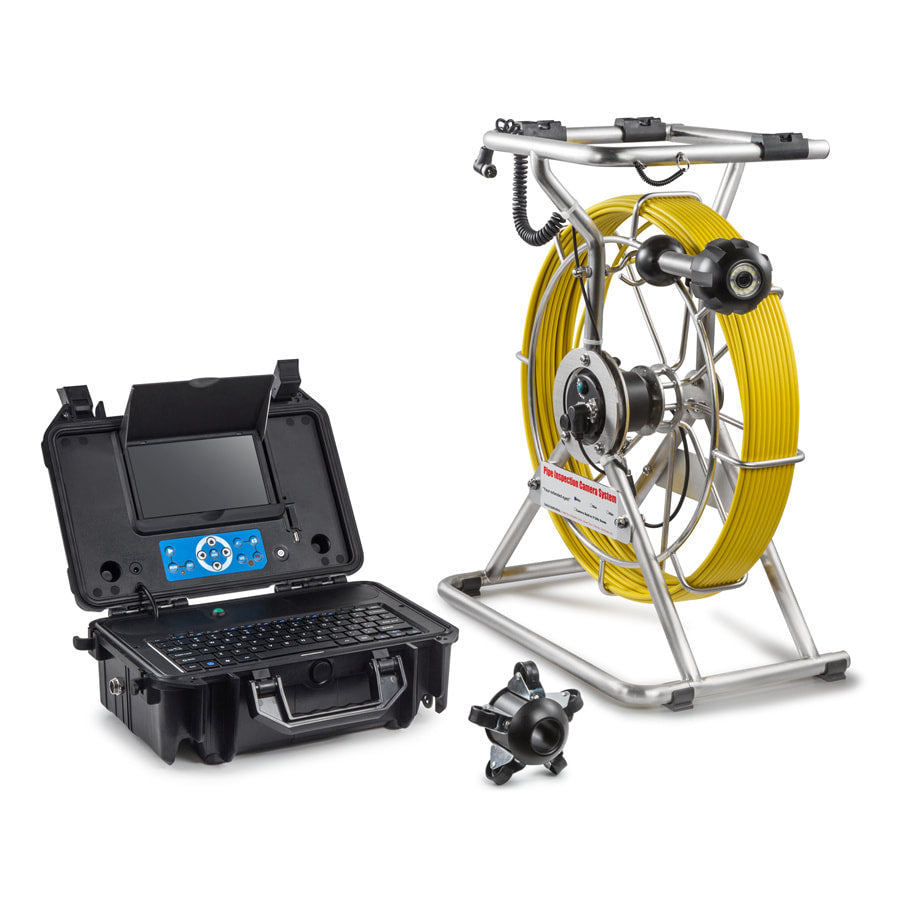

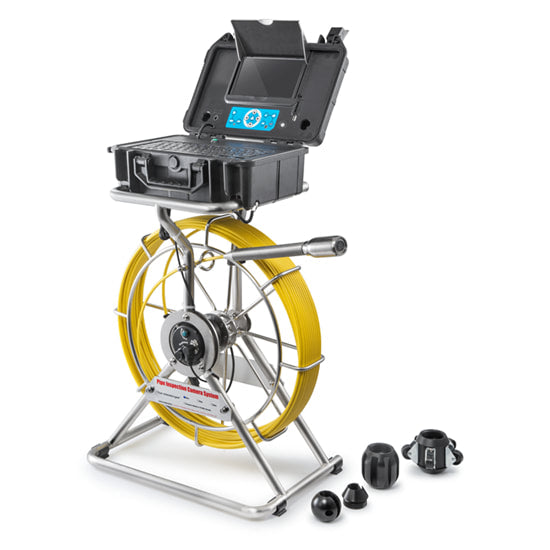

Vividia VS-739 All-in-One Sewer Drain Pipe Video Inspection Camera with 7" Portable Screen and Max. 60m / 197ft Long 9mm Diameter Push-Rod and 38mm Diameter Waterproof Self-Leveling Camera and Built-in 512Hz Sonde

Vividia VS-739 All-in-One Pipe Sewer Drain Inspection Camera is a professional video inspection camera designed for inspection of sewer, pipe, air ducts, underground cable pipes, etc..

VS-739 Pipe Sewer Inspection Camera is equipped with a 38mm Sony CCD camera head, 40/50/60m, 131/164/197 ft (selectable) fiberglass cable and 7'' LCD monitor with SD card recording. The camera has self-leveling feature and built-in 512Hz sonde. On-screen meter counter (meter or feet) is displayed on the monitor.

Key Features of VS-739 pipe inspection camera:

• 1/3" Sony CCD camera, 120°wide vision angle, 752H * 582V pixels

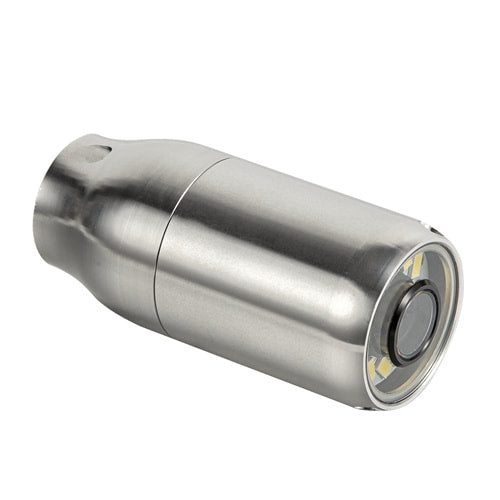

• Camera Size Φ38mm×81mm (camera head). Optional 23mm camera

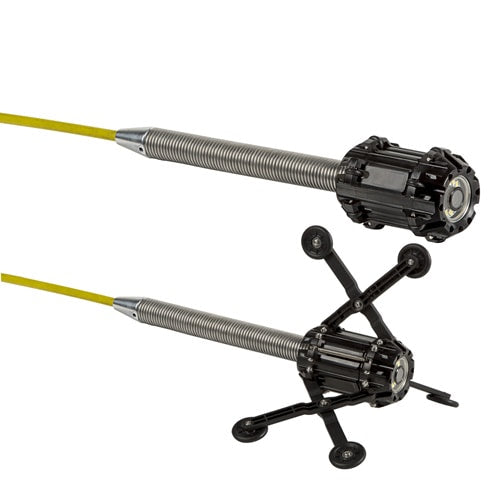

• Two roller skids, mini one dia.72mm, universal skid at dia.115-250mm
• Sapphire glass lens cover, 12 white LEDs
• Focus Distance ~12cm
• Water proof level, 20m underwater (camera fix on cable)
• Push cable dia. 6.8mm

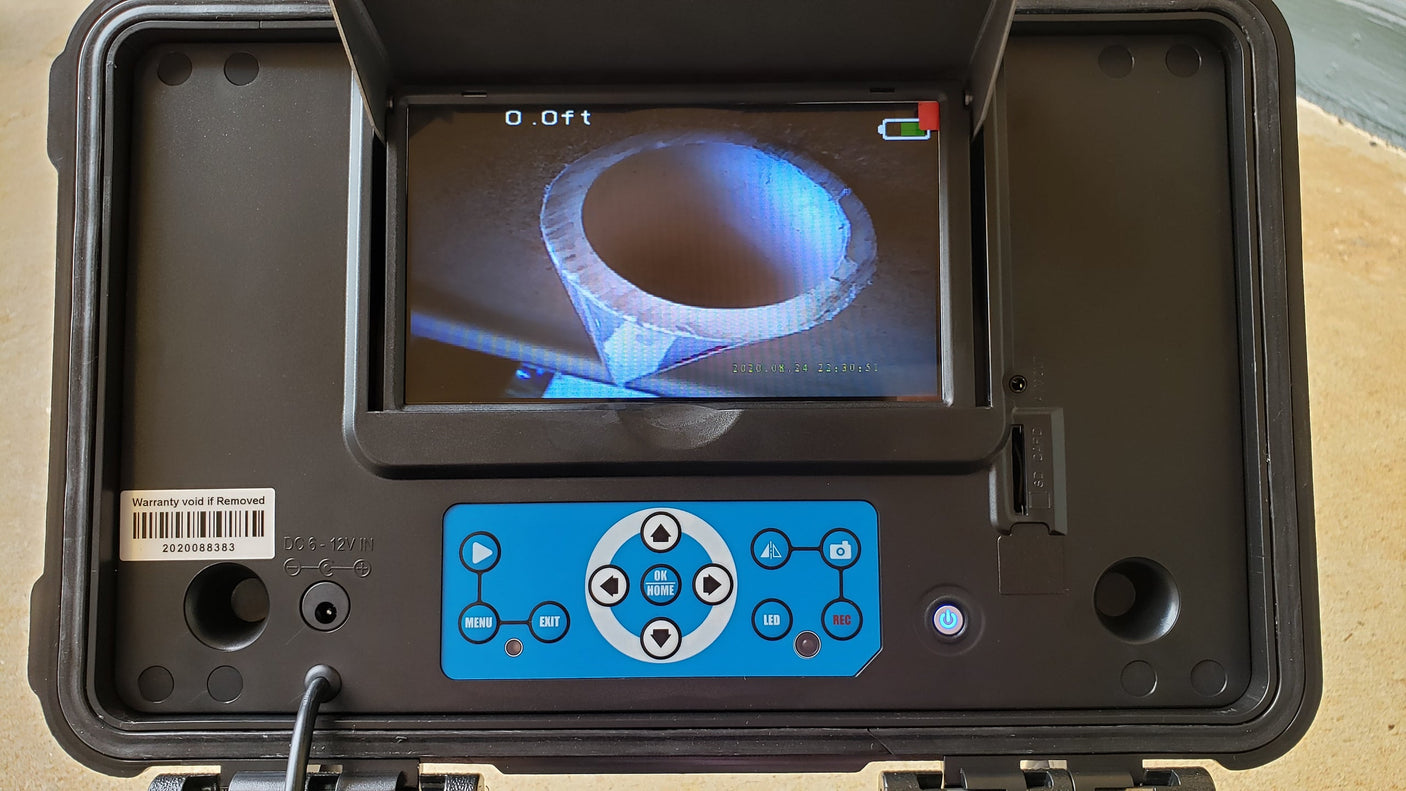

• 7” LCD color monitor
• Support SD Card slot to store still pictures or videos
• One push record button with microphone for audio recording
• LED brightness control buttons
• Video image rotate button
• Built-in rechargeable battery lasts up to 5 hours
• On-Screen date and time
• With self-leveling feature for 38mm diameter camera and 23mm diameter
• On-screen meter/ft. distance display

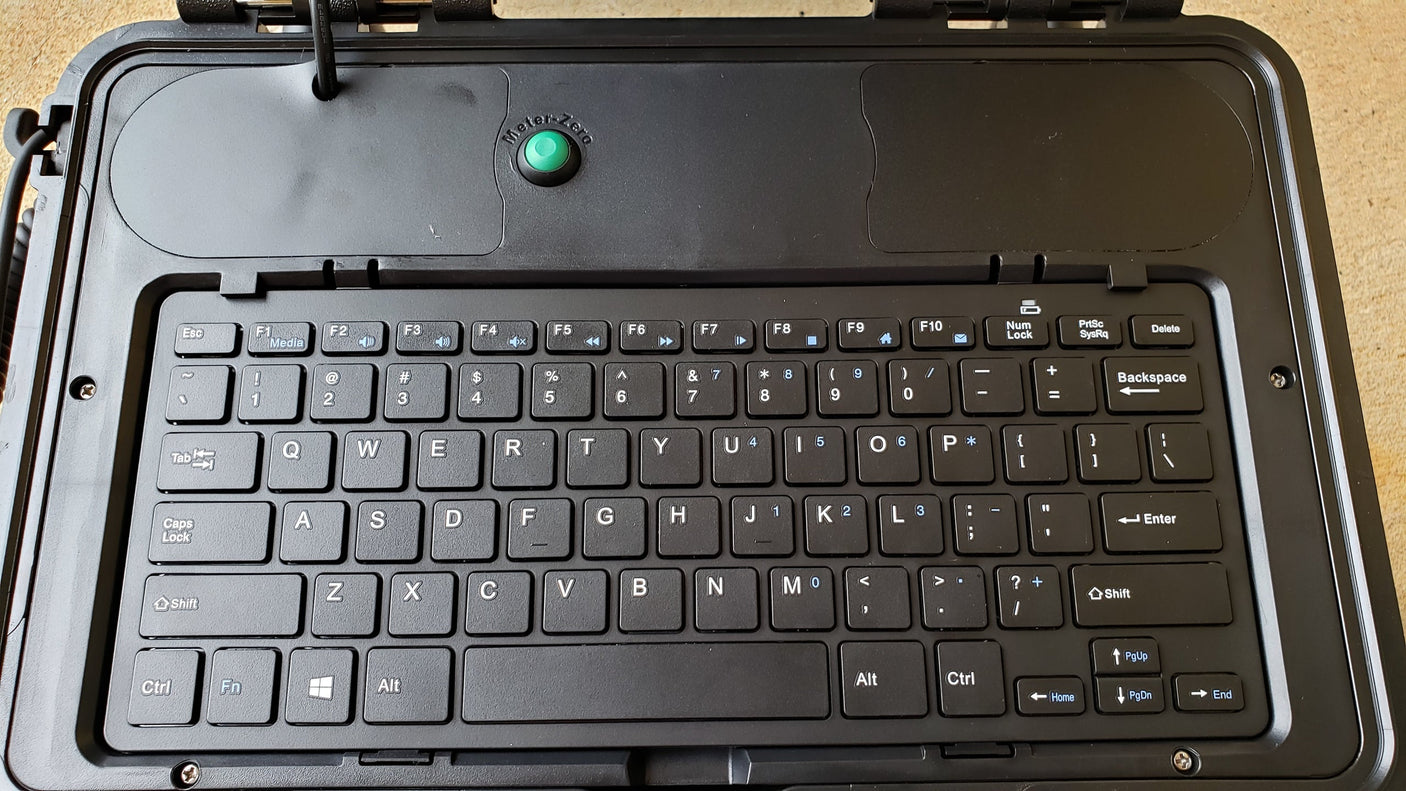

• With wireless keyboard for text input
• 200 ft / 60 meter fiberglass push rod
• Built-in 512hz sonde included for 38mm and 23mm camera
• With universal installation brackets

Two sizes of camera head are available:

• Diameter 38mm / 1.50" camera head with self-leveling and built-in 512Hz sonde (Model: VS-739-60-38)​
• Diameter 23mm / 0.91" camera head with self-leveling and built-in 512Hz sonde (Model: VS-739-60-23)

Operation Manual Link
