Oasis Scientific | SKU:
UW-DV8-50PT
Vividia DV8-50PT-20 Professional Portable Underwater Pan-Tilt-Focus Inspection Camera 20m Flexible Cable 50mm Diameter PTF Camera Head 8 Inch Monitor
$2,699.98 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Vividia DV8-50PT-20 Professional Portable Underwater Pan-Tilt-Focus Inspection Camera 20m Flexible Cable 50mm Diameter PTF Camera Head 8 Inch Monitor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia DV8-50PT-20 Professional Portable Underwater Pan-Tilt-Focus...
$2,699.98 USD
Unit price
/
Unavailable

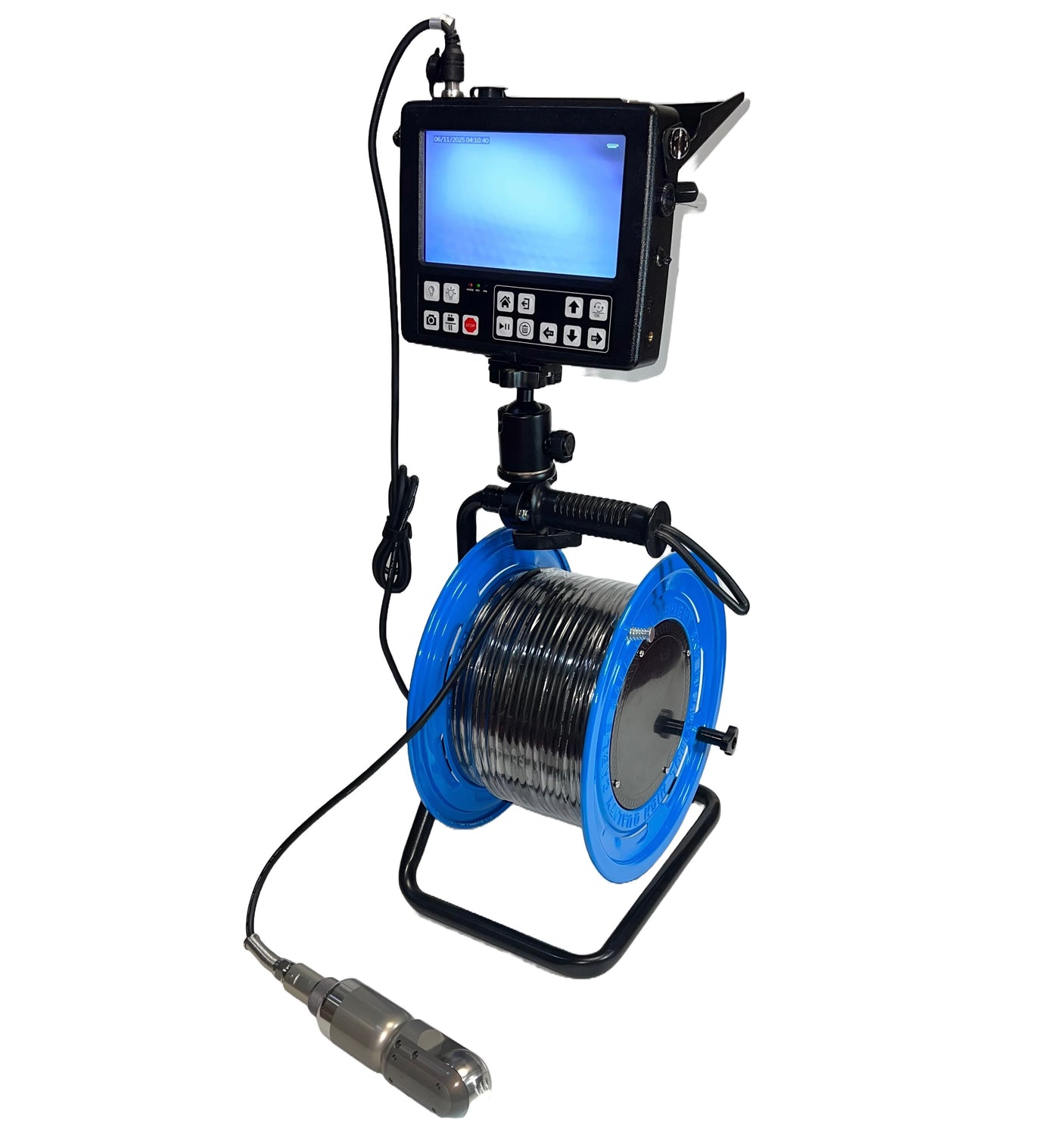

Vividia DV8-50PT-20 Pan-Tilt-Zoom PTF Inspection Camera:
- 50mm / 2" diameter waterproof IP68 (max. 10 bar) pan-tilt-zoom PTF camera.
- 1.3MP resolution and bright LED lights
- Switching between pan-tilt and manual focus
- Flexible 20m / 66ft long soft and stong cable
- 8" LCD IPS monitor
- USB port for image and video file storage
- 7000mAh rechargeable lithium battery for >6h work time
DV8-50PT-20 camera is good for inspection of manhole, borehole, well, chimney, silos, pipe, underwater, etc.
|

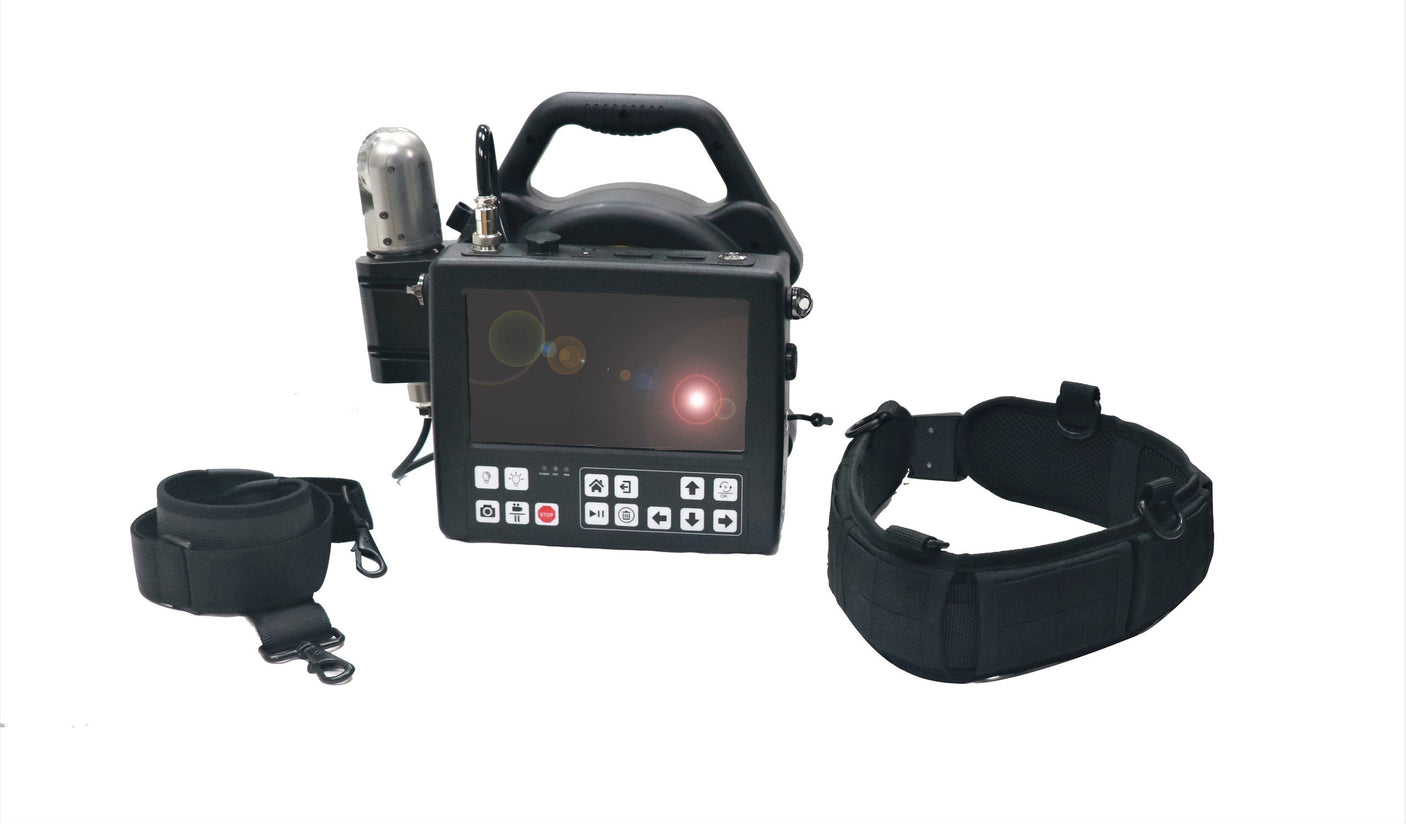

Vividia DV8-50PT-20 Professional Portable Pan-Tilt Inspection Camera

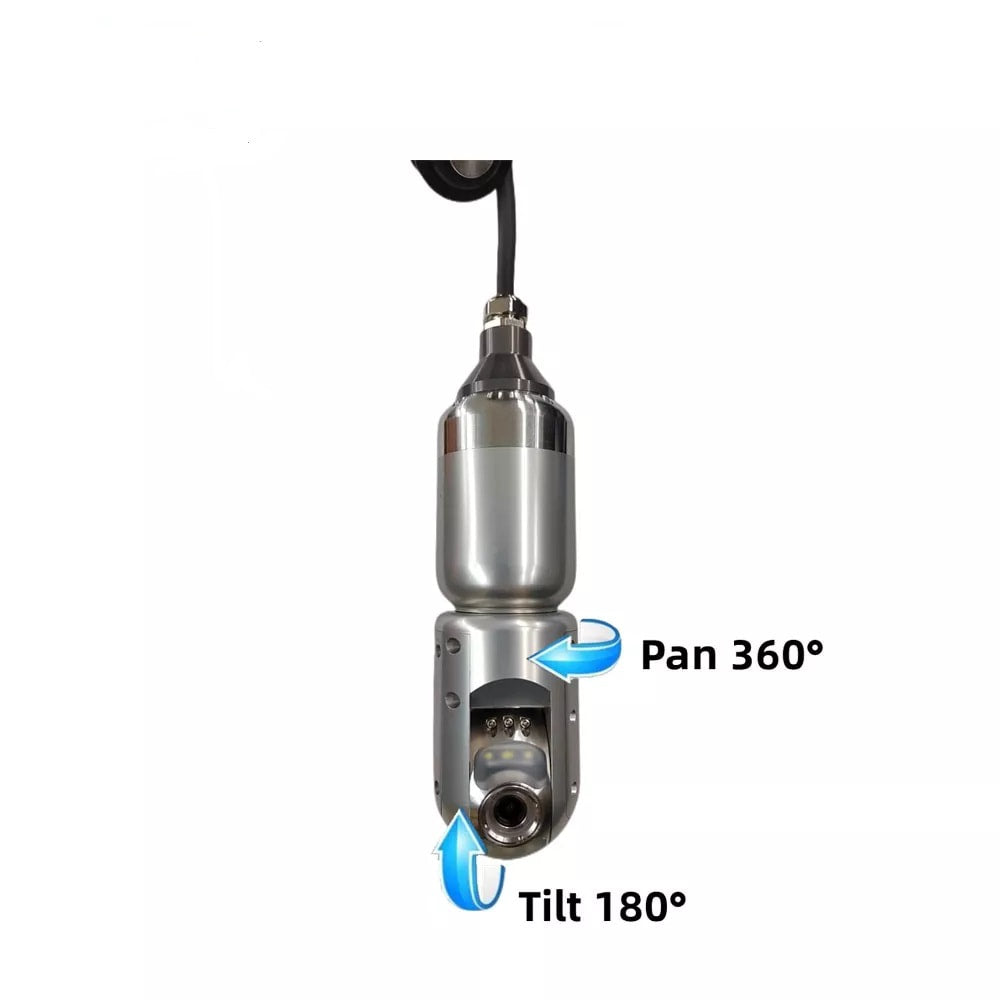

PTZ Camera meaning:
P: pan, 360 degree rotate T: tilt, 180 degree tilt up and down F: manual focus from near to far This unit does not have digital zoom in and out functions. |
|
Technical Specs:
|

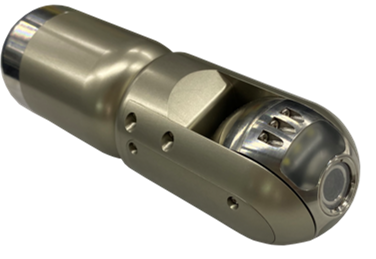

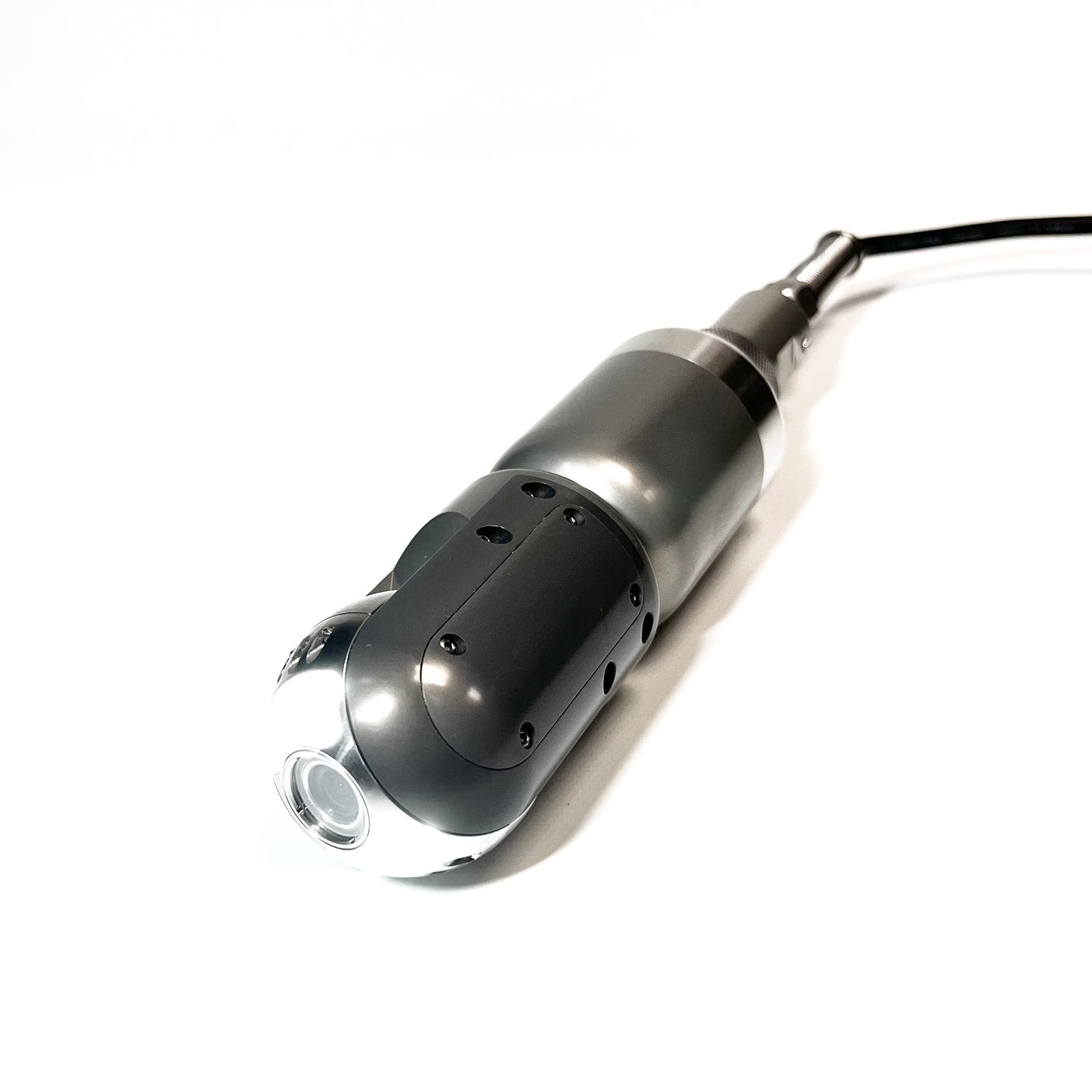

50mm PTF Camera Head

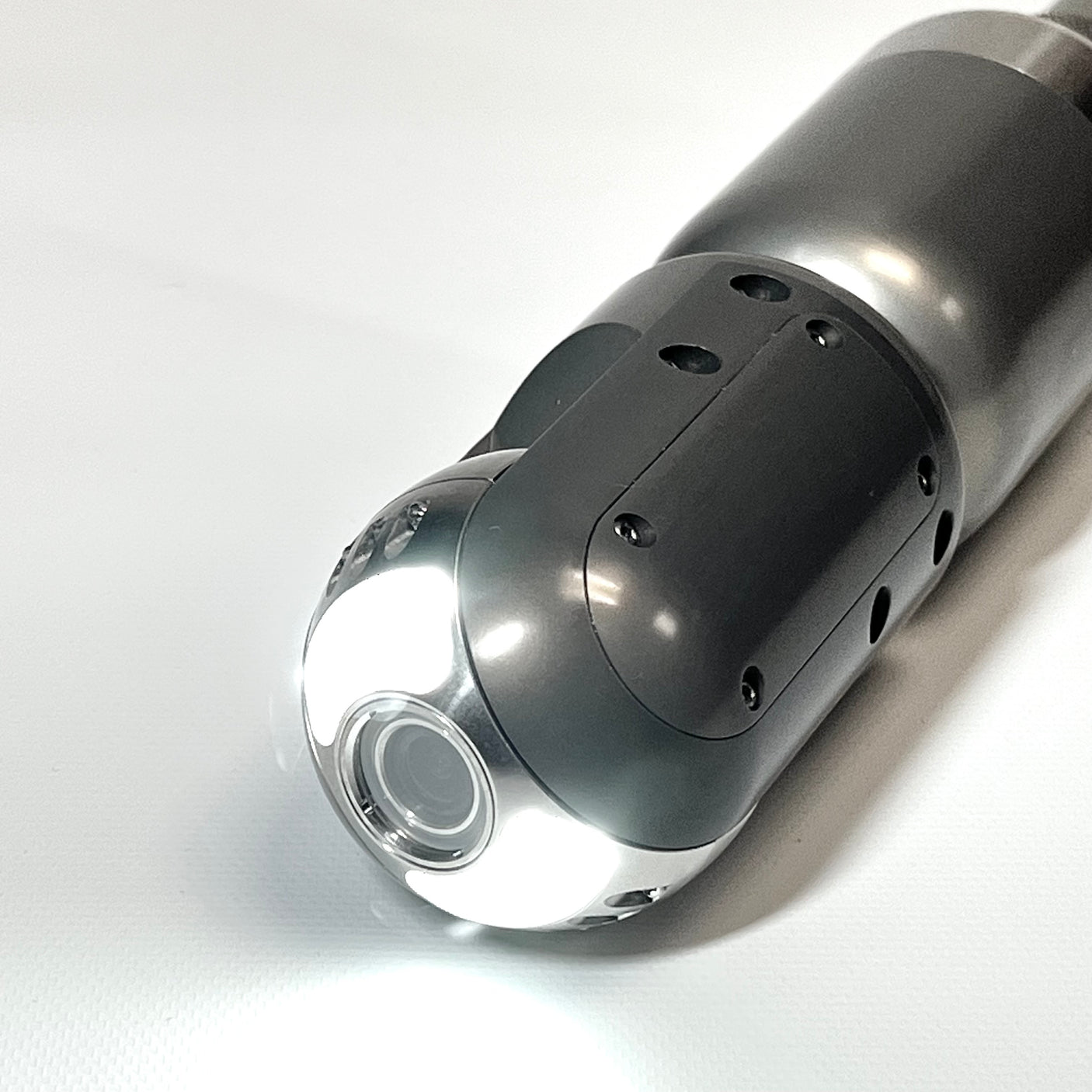

* Camera head size 50mm x 154mm, / Diameter 1.97" x L 6" * Sensor 1/3" CMOS ,1.3MP pixel, * Waterproof IP68 up to 10 bar (underwater 100m) * View range 120° * Rotation: Pan 360°, Tilt 180° * Manual focus from close to far; from ~0.5" to infinity. * lens position automatic reset * 6pcs high power LED lights with brightness adjustable * With the maximun light, see more than 20ft far in total darkness * Detachable connection to Cable Reel * Lens window sapphire glass * stainless steel body, anti-scratch |
|
|
|

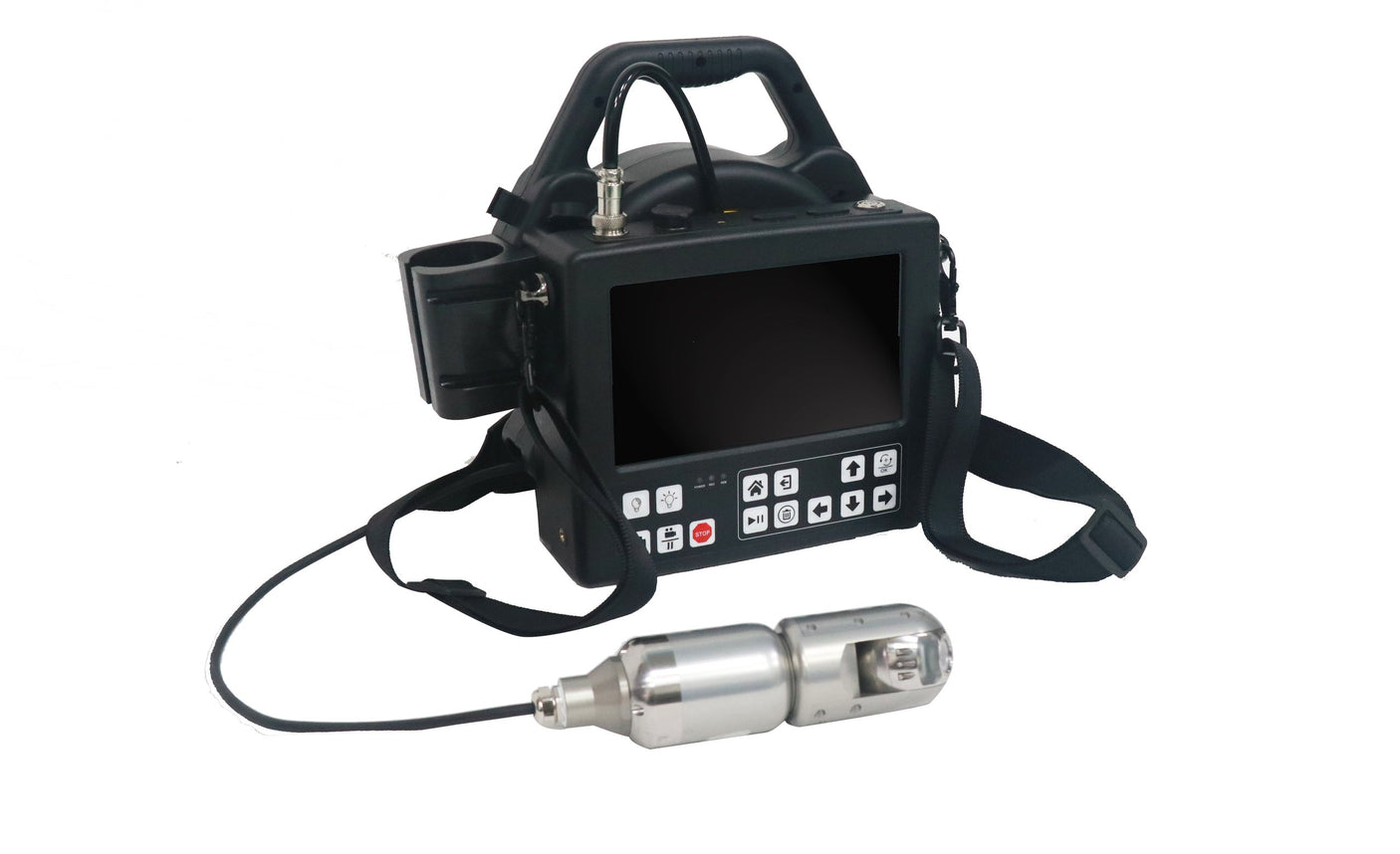

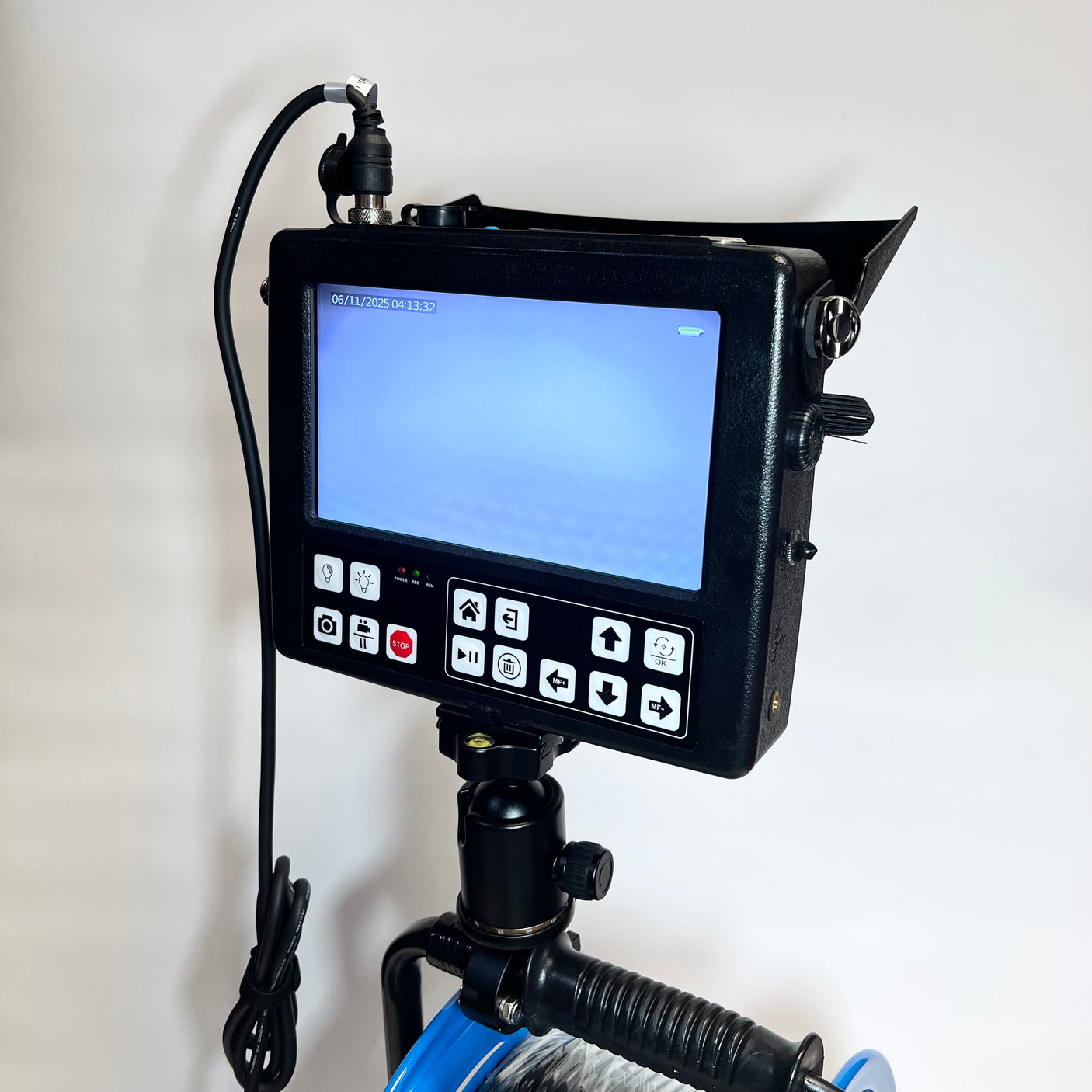

8" IPS Monitor with rechargeable battery
* 8"HD IPS LCD Screen, waterproof panel * 1280X720 screen resolution * Waterproof keys for DVR function * 720P AVI format video, auido and photography function * Video input port (Compatiable different camera head) * SD card for file storage. Max. 128G capacity * 7000mA rechargeable Li-ion Battery Pack. >6h work time * Battery level indicator

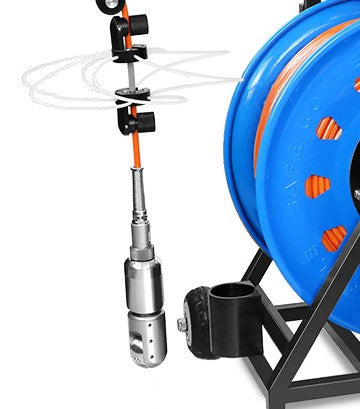

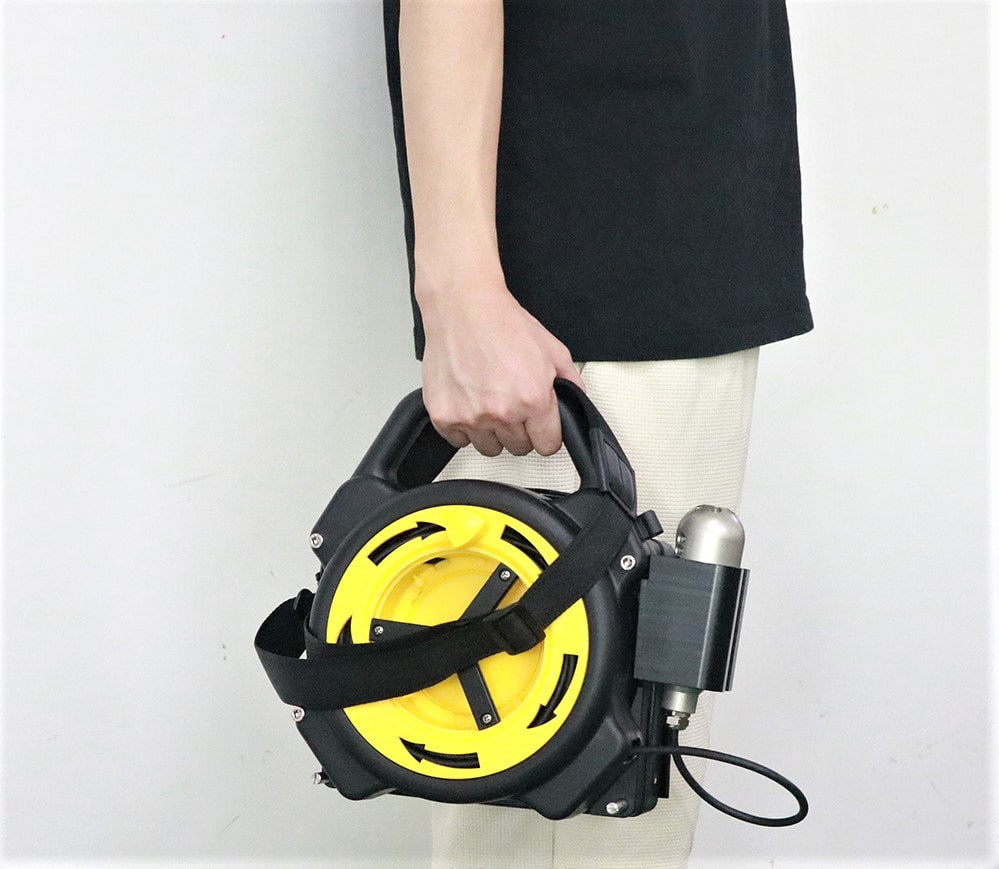

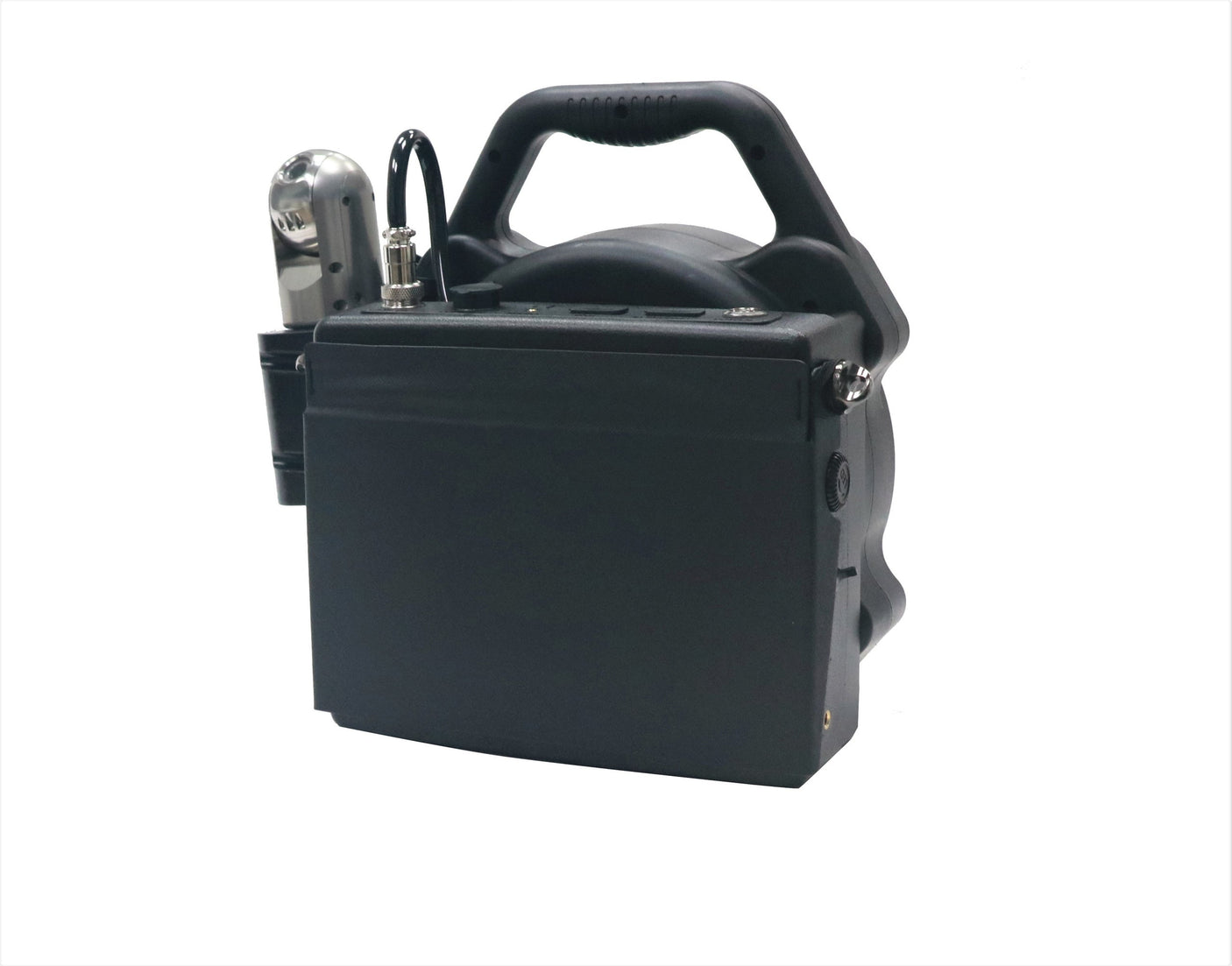

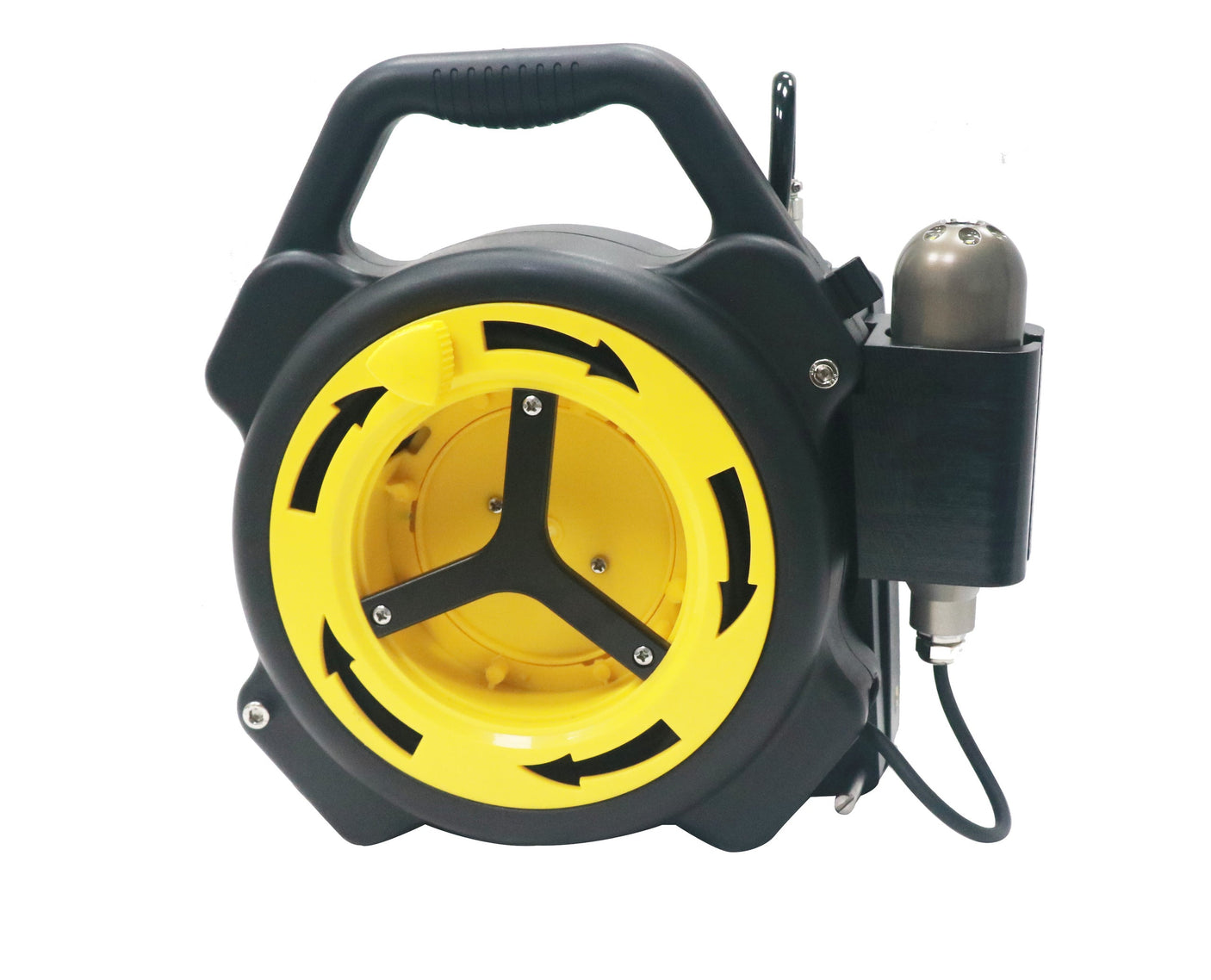

Flexible soft cable and reel
* 20m / 66ft soft flexible cable with plastic cable reel * Cable diameter ø5mm * Meter mark on the cable( 1m, 2m...20m)
|
|
Pictures taken with DV8-50PT-20 camera in total dark room with LED lights brightness adjustment from level 0 to level 5, then with the room lights on
|
|
Replacement parts:
CH-50PT pan-tilt camera head
|
AC charger
|
