Oasis Scientific

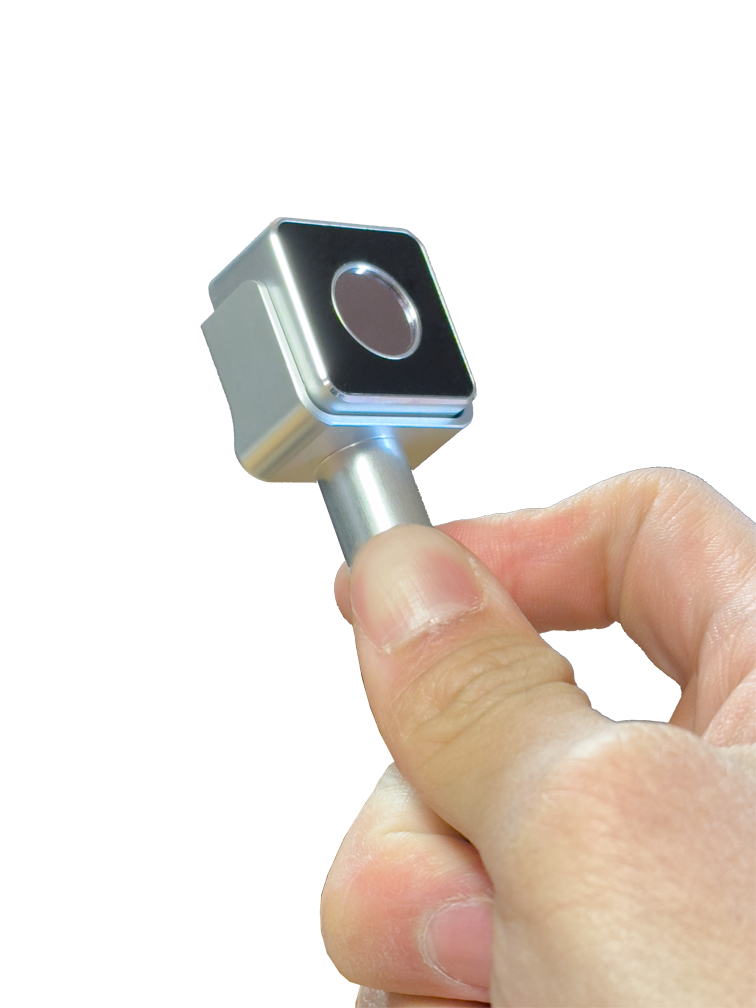

Vividia TC-256 Handheld Rod Smartphone Infrared Thermal Imaging Camera

$549.98 USD
Shipping calculated at checkout.
Bundle Options

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

TC-256 Mobile Phone Infrared Thermal Imager is a state-of-the-art infrared thermal camera that brings high precision and quick response to your fingertips. This device is equipped with an industrial-grade infrared detector with a small pixel spacing and high-resolution ratio, ensuring detailed and accurate temperature readings.

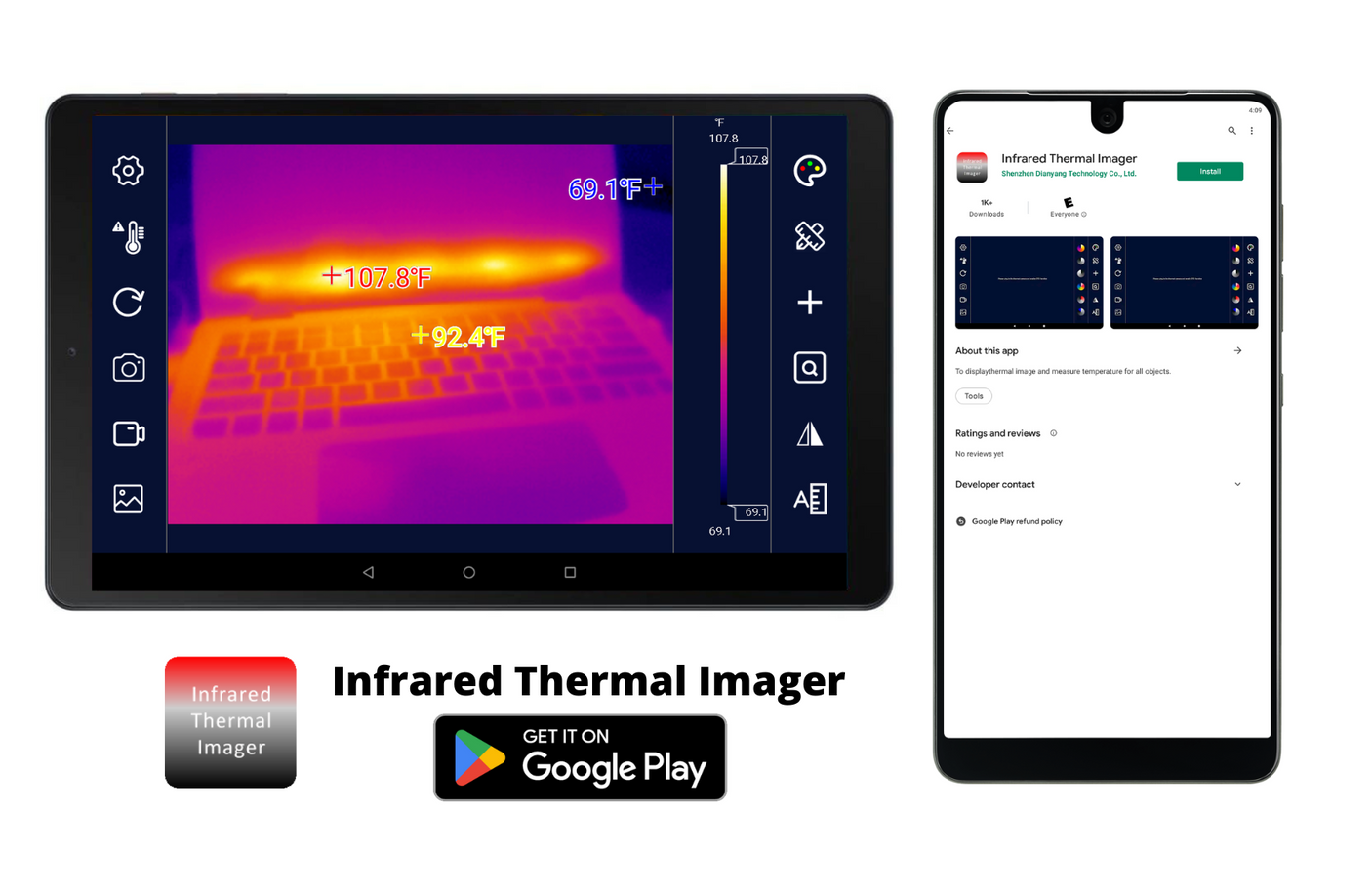

The free app “Infrared Thermal Imager" is available exclusively on Google Play for Android devices that makes it easy to capture, analyze, and share thermal data right from your mobile device.



Vividia TC-256 Infrared Thermal Imager is a high thermal resolution, quick-response infrared thermal camera. It features an industrial-grade infrared detector with small pixel spacing and high resolution, ensuring detailed and accurate temperature readings.

Main Features:
  • Android Compatibility: The free app “Infrared Thermal Imager" is available exclusively on Google Play for Android devices only, making it easy to capture, analyze, and share thermal data right from your mobile device.

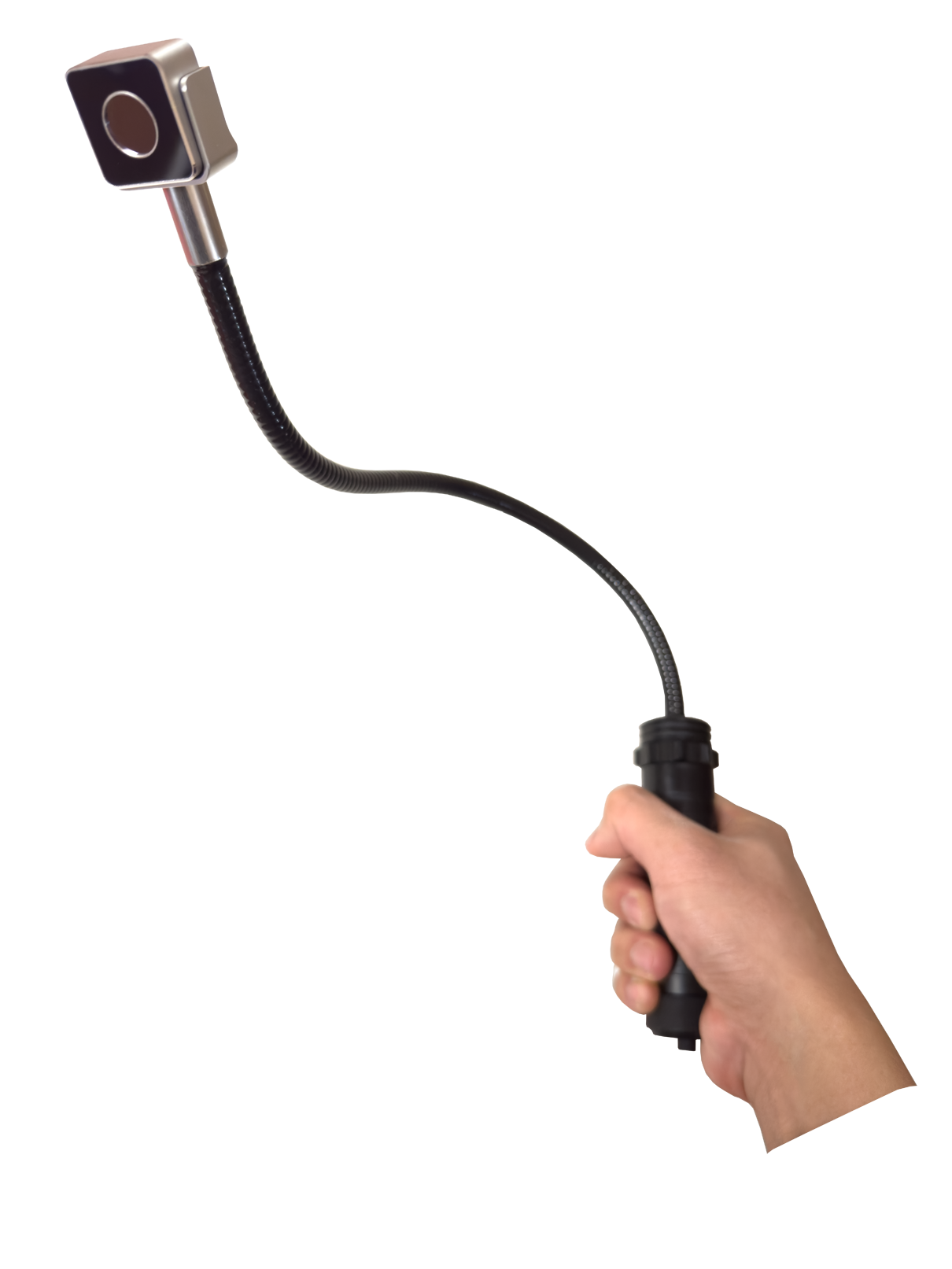

  • Semi-Rigid Gooseneck Rod: Easy and flexible positioning of the camera, enabling you to capture thermal images from various angles and distances.
  • High Precision: Industrial-grade infrared detector with small pixel spacing and high-resolution ratio, ensuring detailed and accurate temperature readings.
  • Quick Response: High precision and quick response to your fingertips, providing real-time thermal imaging.
  • Wide Temperature Measurement Range: Capable of measuring temperatures ranging from -15°C to 600°C.
  • Multiple Color Palettes: Supports various color palettes including Iron, white hot, black hot, rainbow, red hot, and cold blue for different thermal imaging needs.

Tech Specs:
  • Model: TC-256
  • Resolution: 256x192
  • Wavelength: 8-14 μm
  • Frame Rate: 25Hz
  • NETD: <50mK @25°C
  • FOV: 56° X42°
  • Lens: 3.2mm
  • Measurement: -15°C~600°C
  • Accuracy: ± 2 ° C or ± 2%
  • Temperature Measurement: Supports highest, lowest, central point and area temperature measurement
  • Color Palette: Iron, white hot, black hot, rainbow, red hot, cold blue
  • Language: English
  • System Compatibility: Android devices only
  • Working Temperature: -10°C - 75°C
  • Storage Temperature: -45°C - 85°C
  • IP Rating: IP54
  • Net Weight: 0.75 lbs
​
TC-256 Package Includes: TC-256 Thermal Imager, OTG Cable, Charging Brick, Lens cleaning cloth, User Manual.



tc-256_tc-256t10_user_manual.pdf
Download File

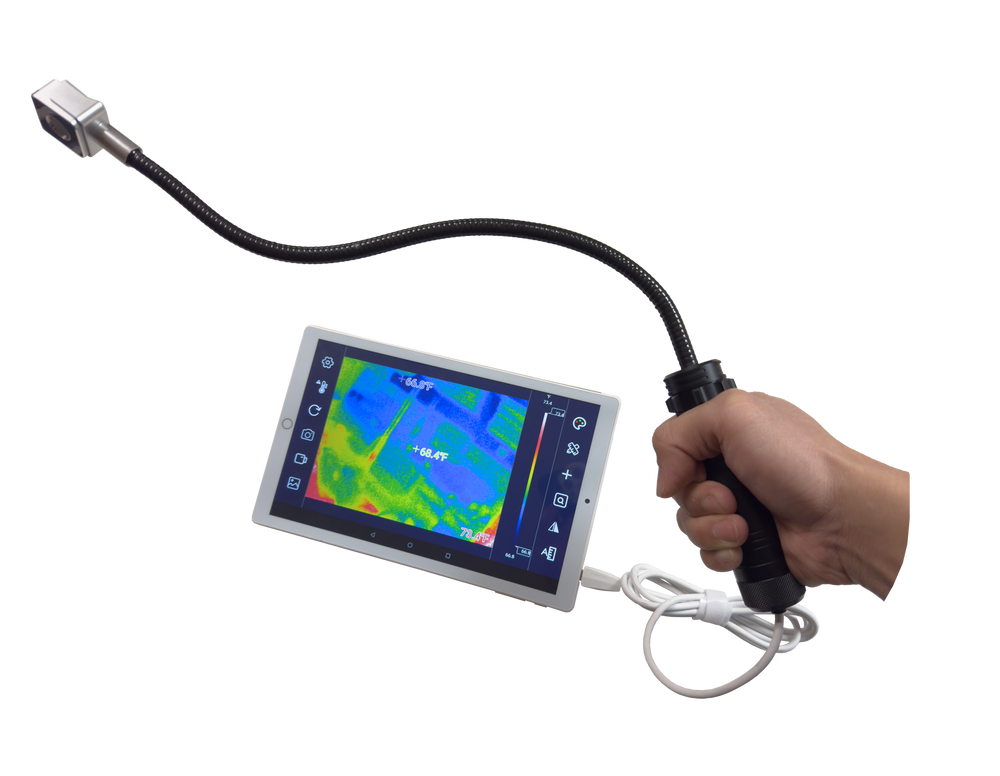

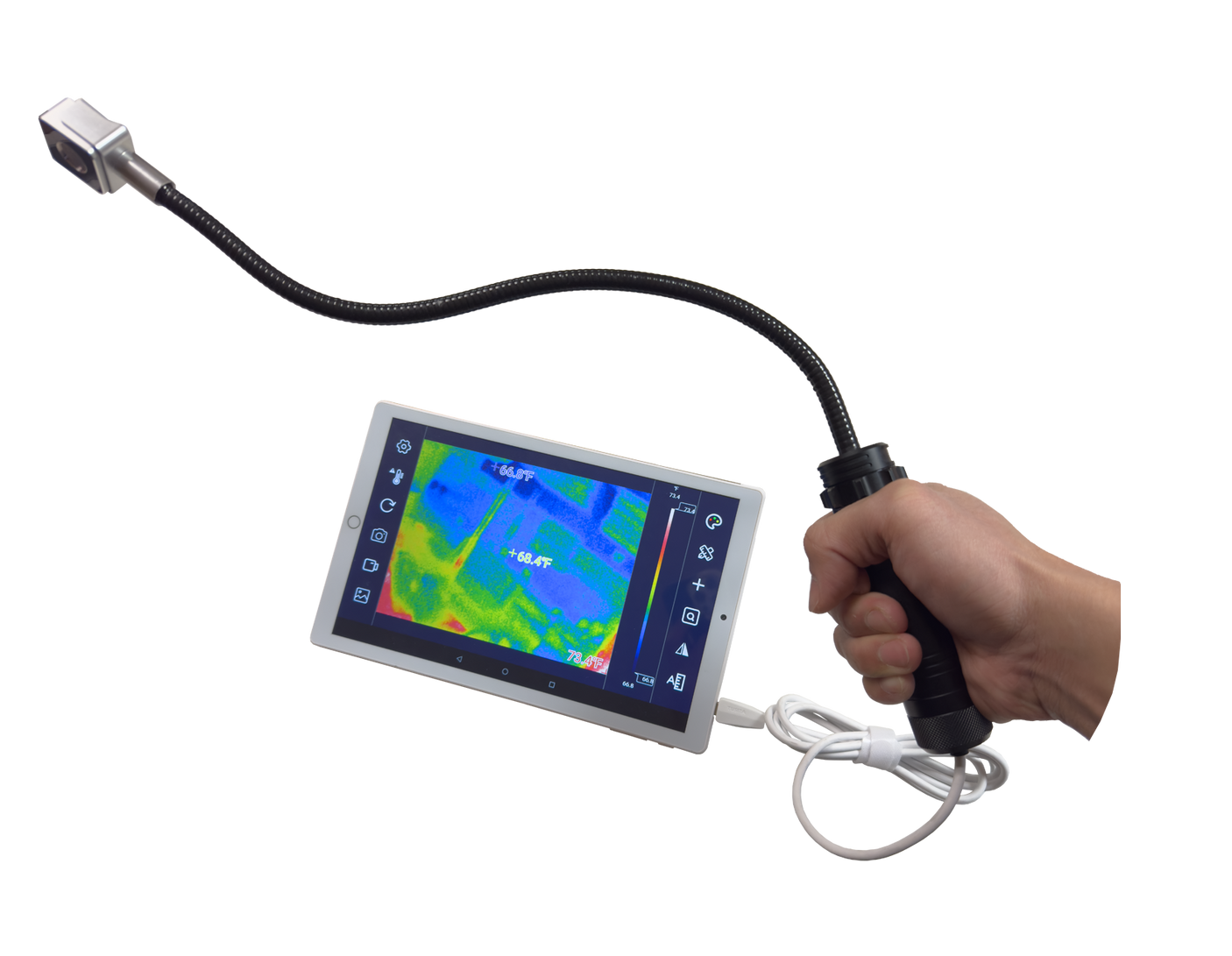

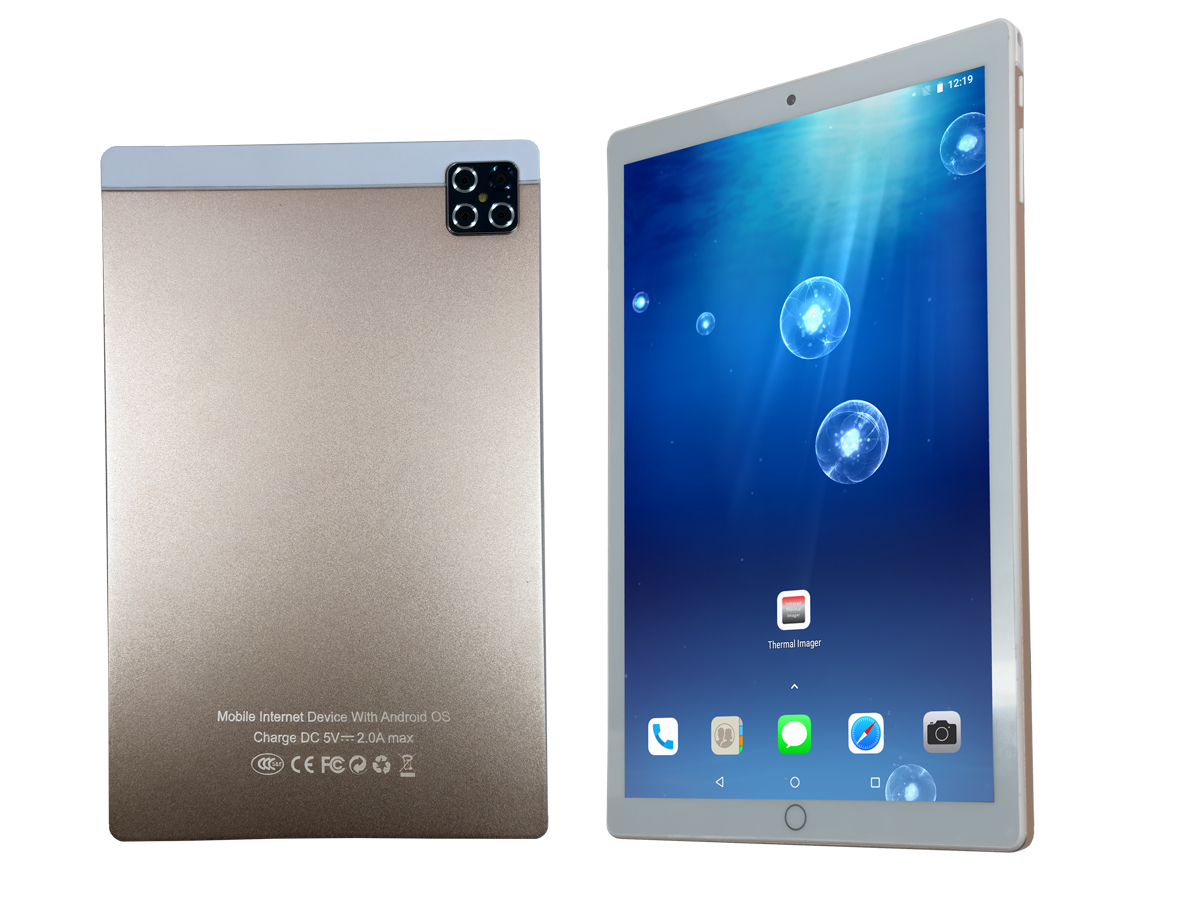

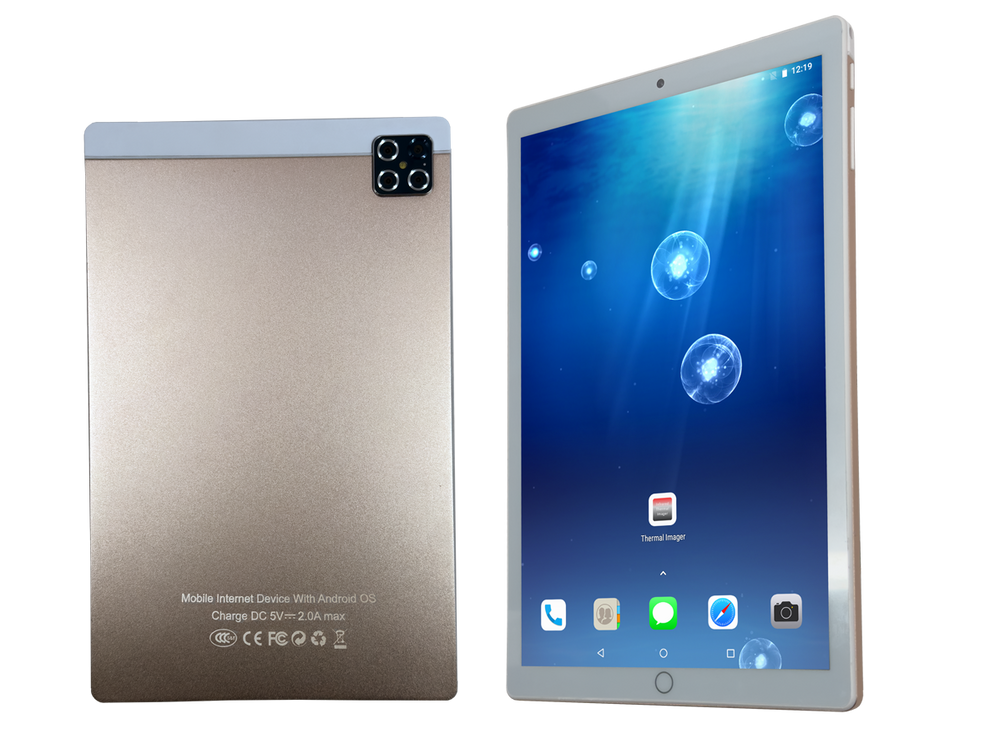

TC-256T10 Bundle Package Includes: TC-256 Thermal Imager, OTG Cable, Charging Brick, Lens cleaning cloth, User Manual, 10" Android tablet with pre-loaded thermal camera app.

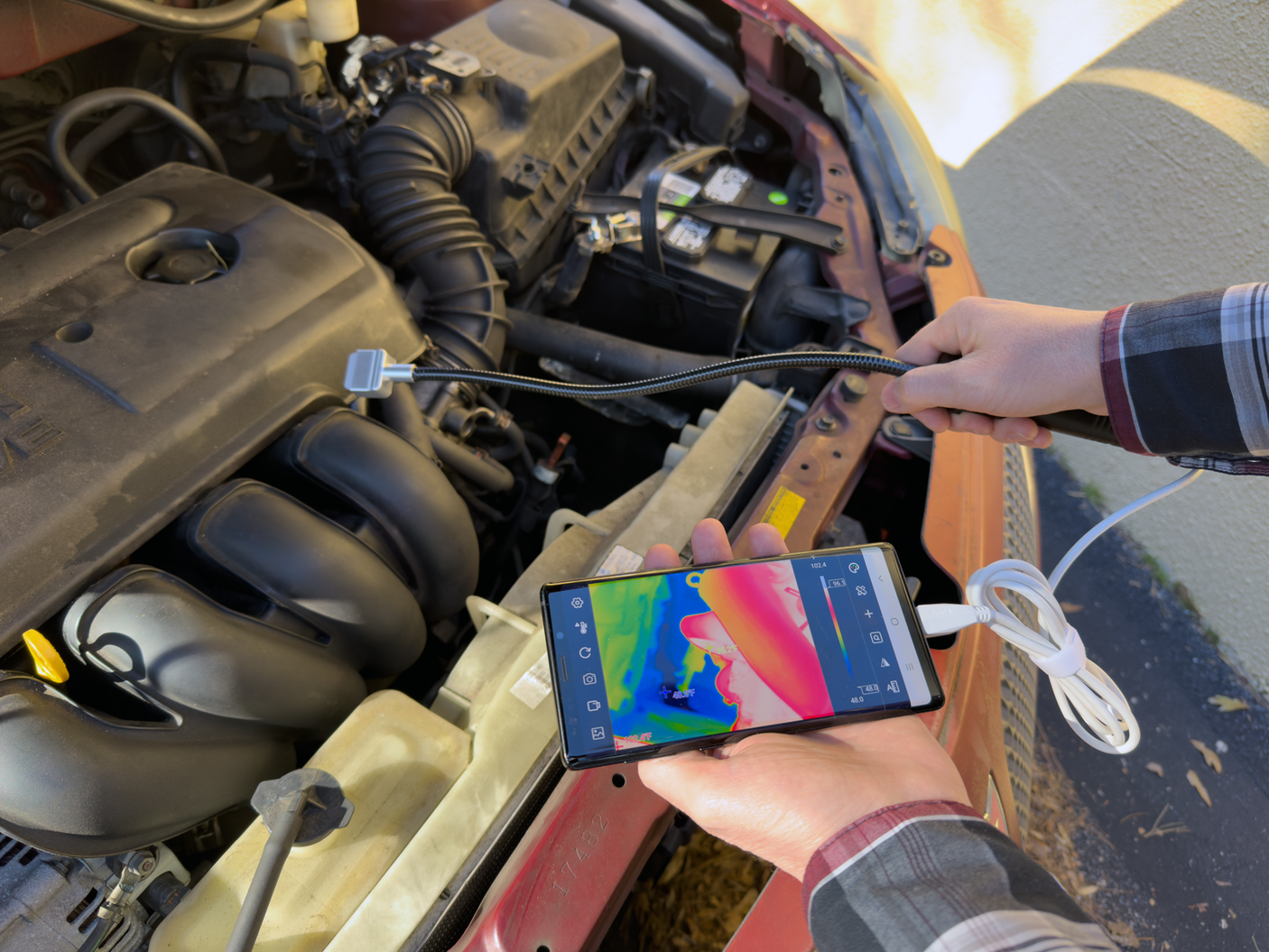

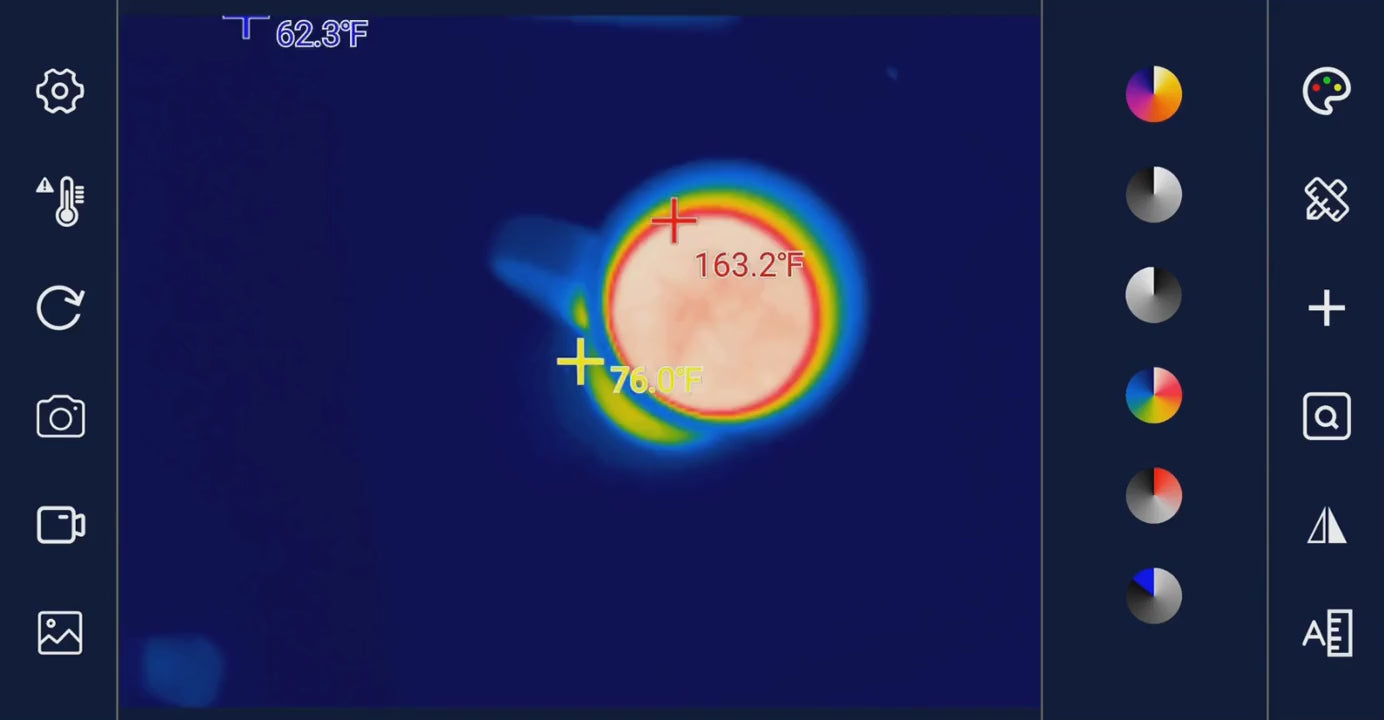

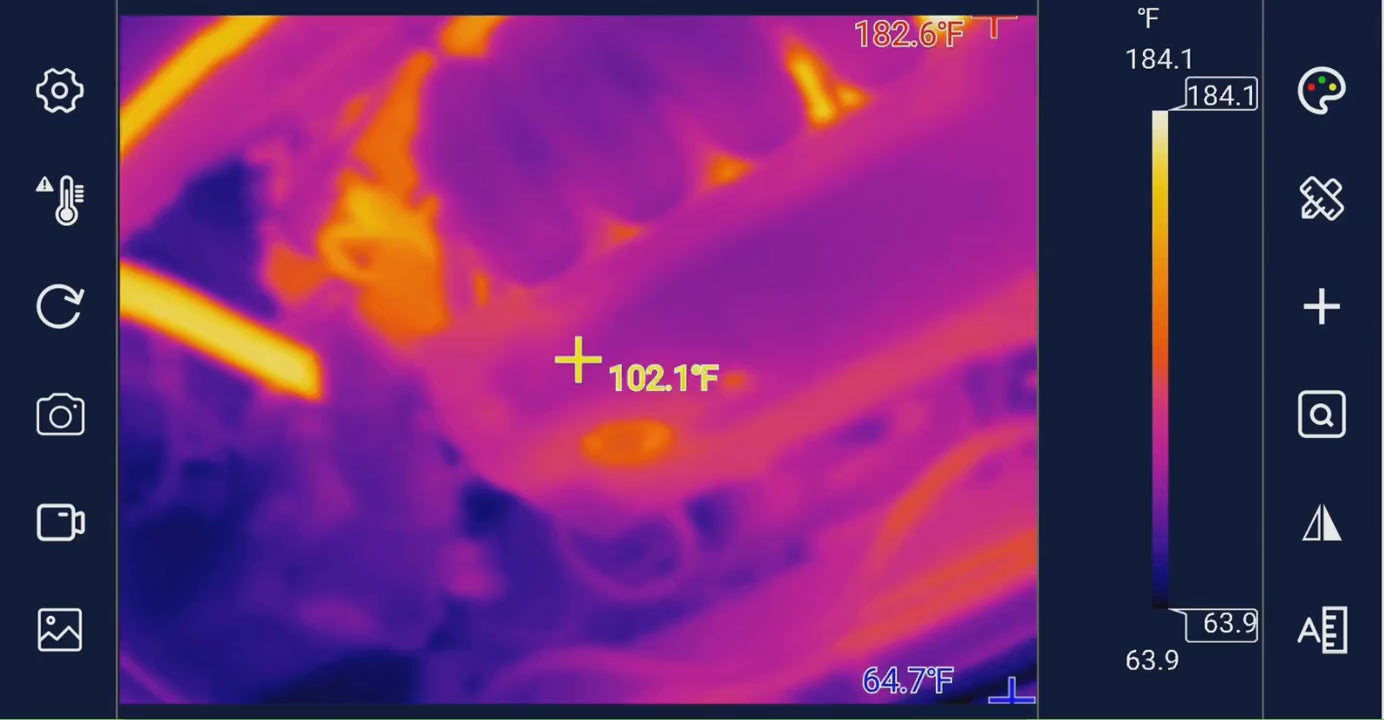

Sample Pictures taken with TC-256:
