Vividia UWC-3405 Underwater Inspection Monitoring Camera 5MP Resolution for Max. 200m Underwater Depth
Vividia UWC-3405 Underwater Inspection Monitoring Camera 5MP Resolution for Max. 200m Underwater Depth - 100m long cable (Model: UWC-3405-100) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.
Vividia UWC-3405 Underwater Inspection Monitoring Camera 5MP Resolu...

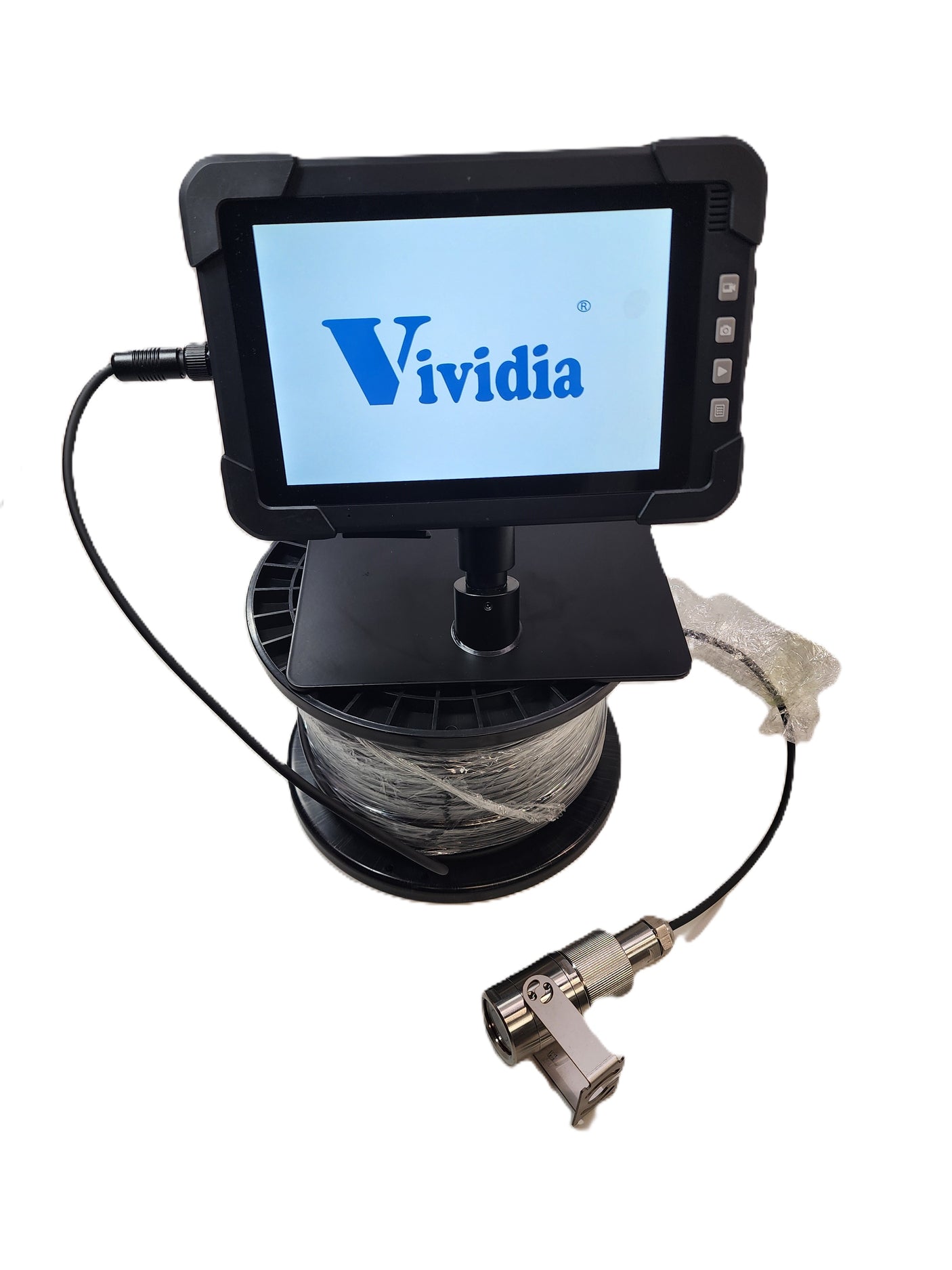

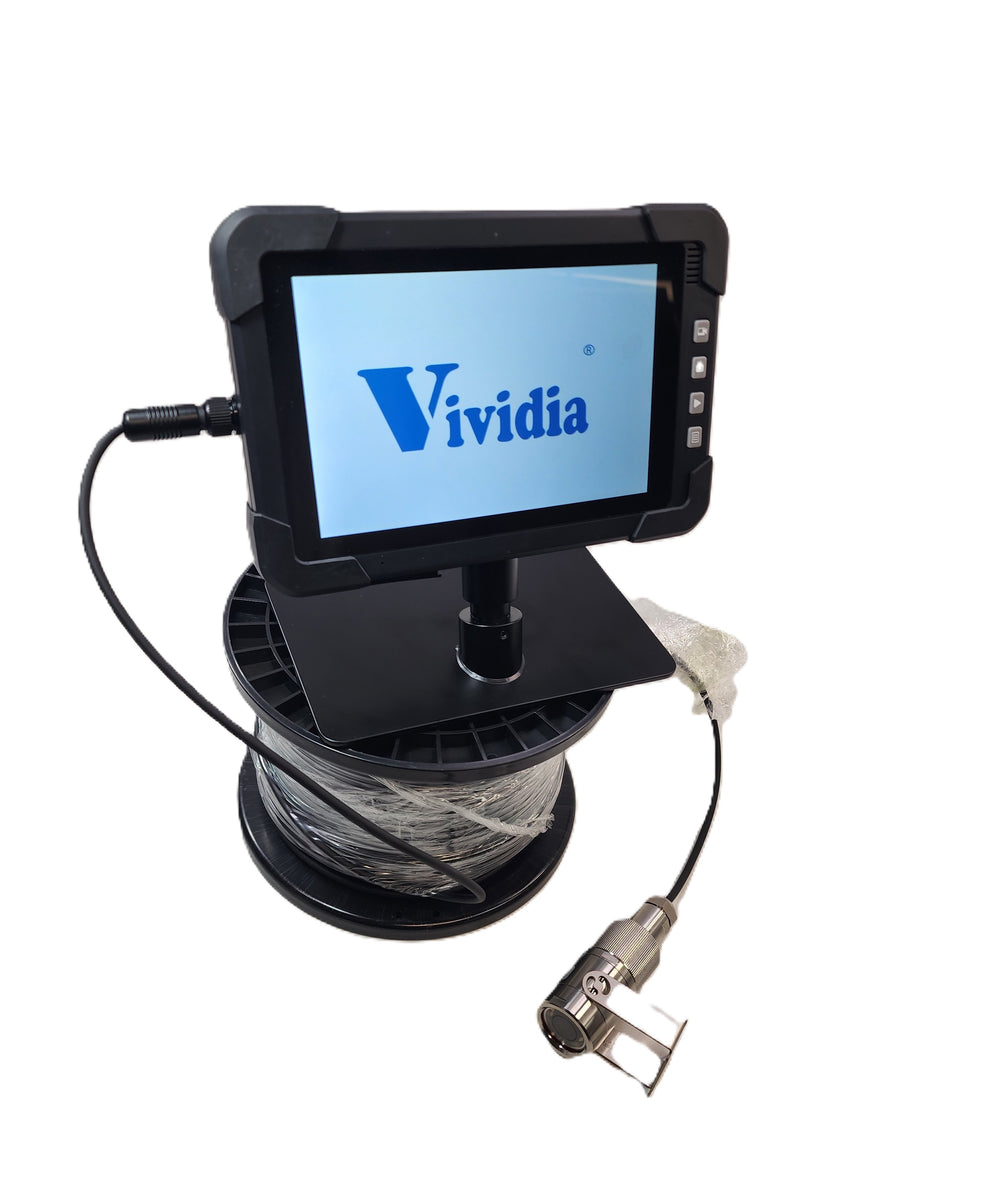

Vividia UWC-3405 Underwater Camera System includes two parts:

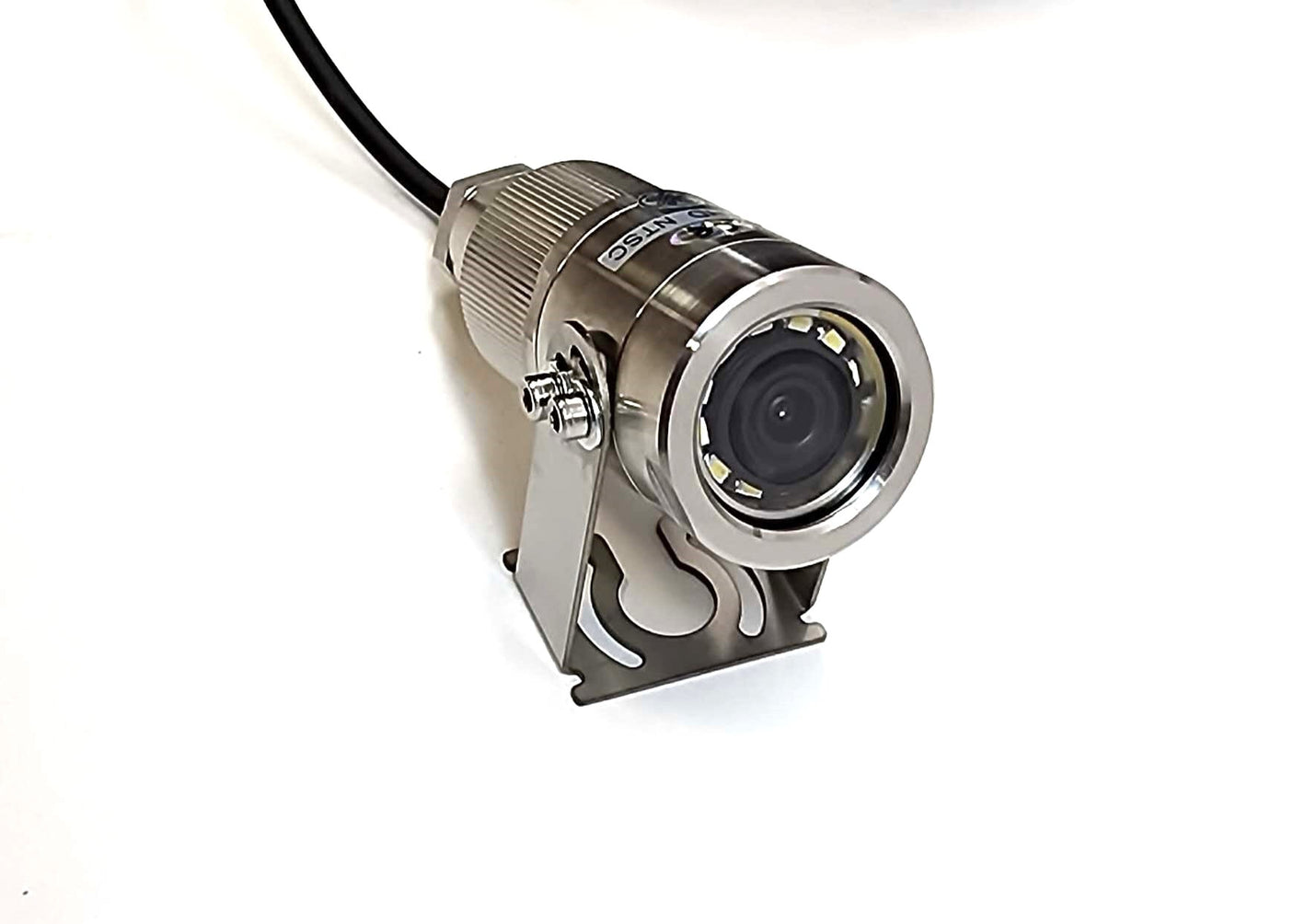

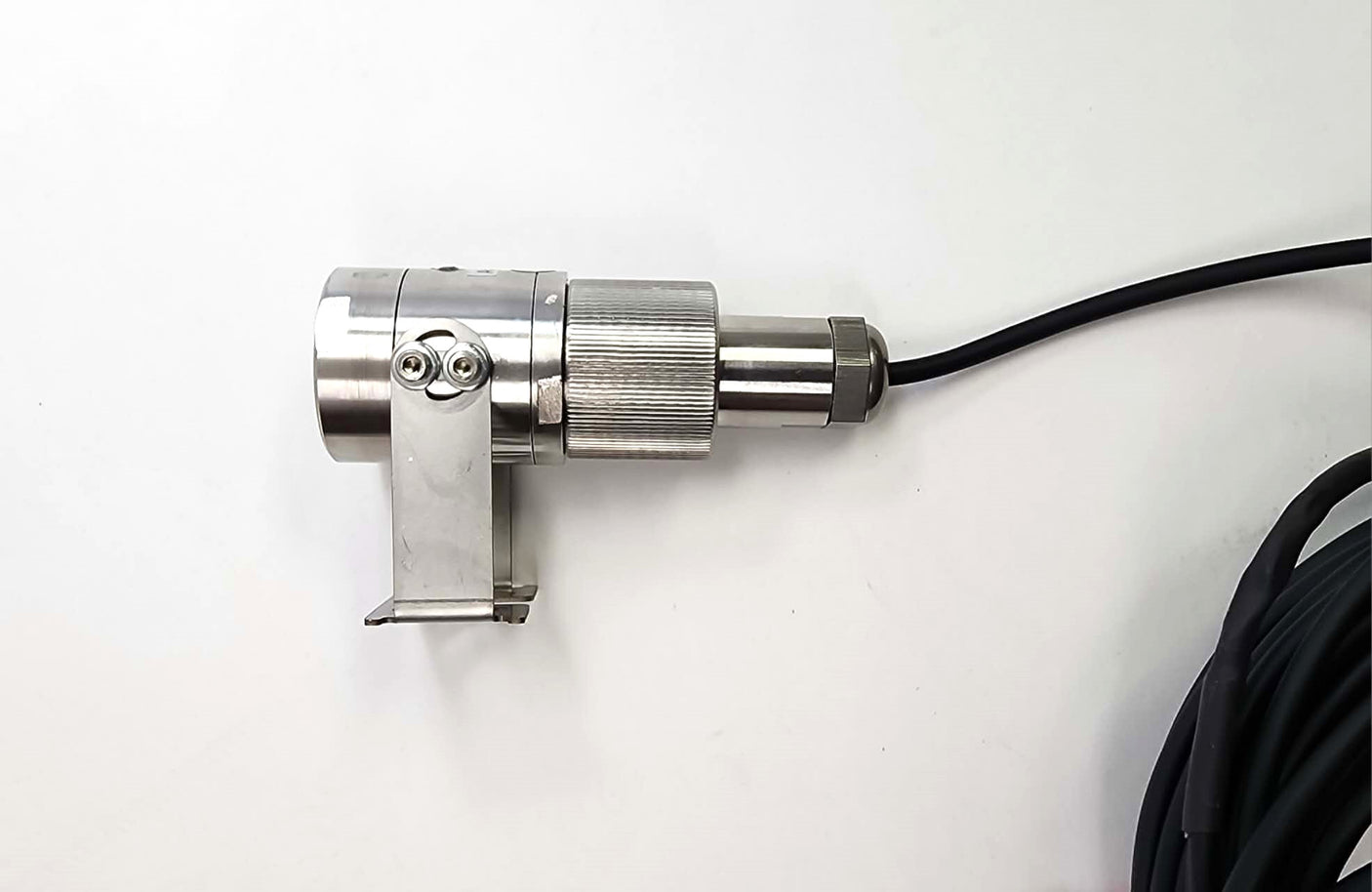

- UWC-3405 underwater inspection camera with drop-down cable
- HD 7 inch touchscreen diplay monitor
UWC-3405 can be used for permanent underwater installation and it can stand maximum underwater 200 meters.
Display Resolution 1024 X 600 Pixel
View angle 170 °
Brightness 500 cd/㎡
Video input Full HD-TVI、AHD、CVI、CVBS 4 in 1 video balun , Provides 12VDC output for camera
Response <0.1s
Power output 12V 300 mA
Video LED control output LED On/Off
Video aspect ratio（16：9） Depends on cameras 1080P(1920*1080),480P(720*480)
Video compress H.264
Video storage Format AVI
Audio Frequency Range 20HZ-20KHz AAC
Audio Compression Format AAC
Photo storage Format JPG 5.0mp,3mp,2mp,1.3mp,VGA for option
Storage External SD cardTF card 2-128GB (Optional)
128GB Recording time about 18 hours
Power working voltage DC :5-12V
Working Current 2A
Battery Built-in Li Battery7500Mah
Working time ≥5hours
Dimension：（LxWx H） DVR main part178mm x 122mmx 32mm
Weight DVR main part 350 gram
- UWC-3405 can withstand 200m waterpressure (20Bar)
- Sensor 5MP sapphire crystal lens window

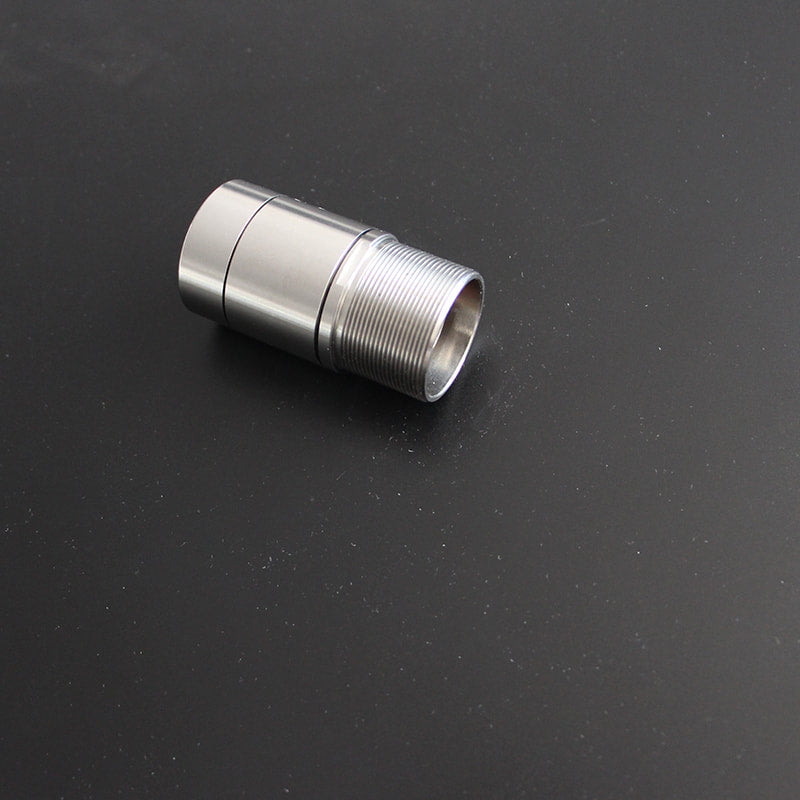

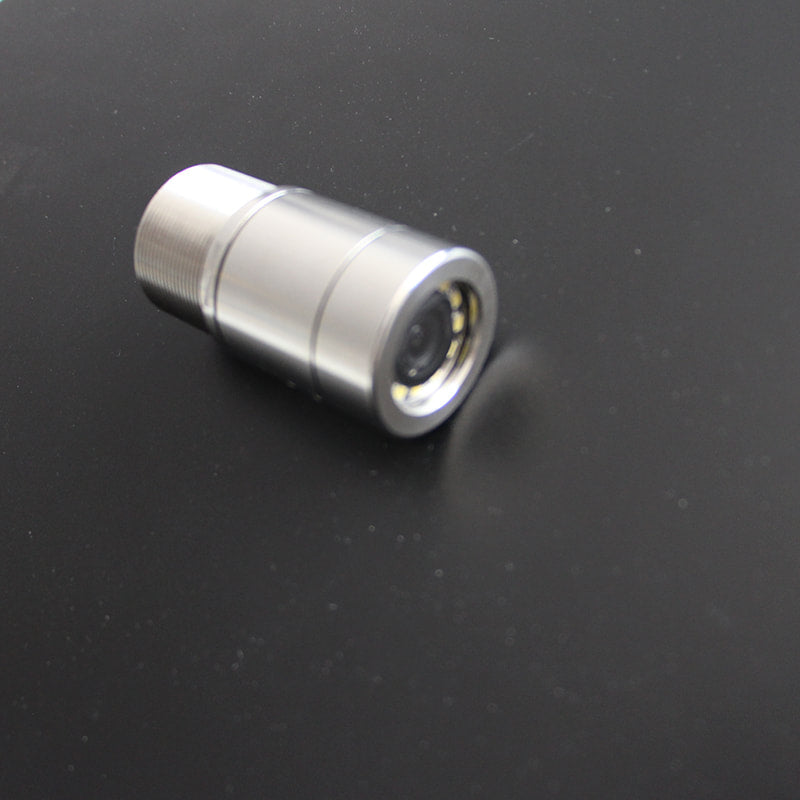

- Camera housing: 316L stainless steel
- SONY Image Sensor
- Signal System: NTSC
- Output: CVBS video out, AHD
- Effective Pixels 2560 x 1920, 5MP
- Min. Illumination 0.0001Lux@F1.2
- Shutter Time: 1/25(1/30) s to 1/50,000 s
- Angle of View: 120 °lens 12pcs light
- Focus distance: 5cm-1000cm
- Video Frame Rate: AHD PAL: 1080p@25fps AHD NTSC: 1080p@30fps
- Video Output:1080P HD-AHD Default, other format contact us.
- Video Output: 1.1Vp-p Composite Output(75Ω/BNC)
- S/N Ratio 65dB
- Support AGC,Auto White Balance, Auto D/N Mode

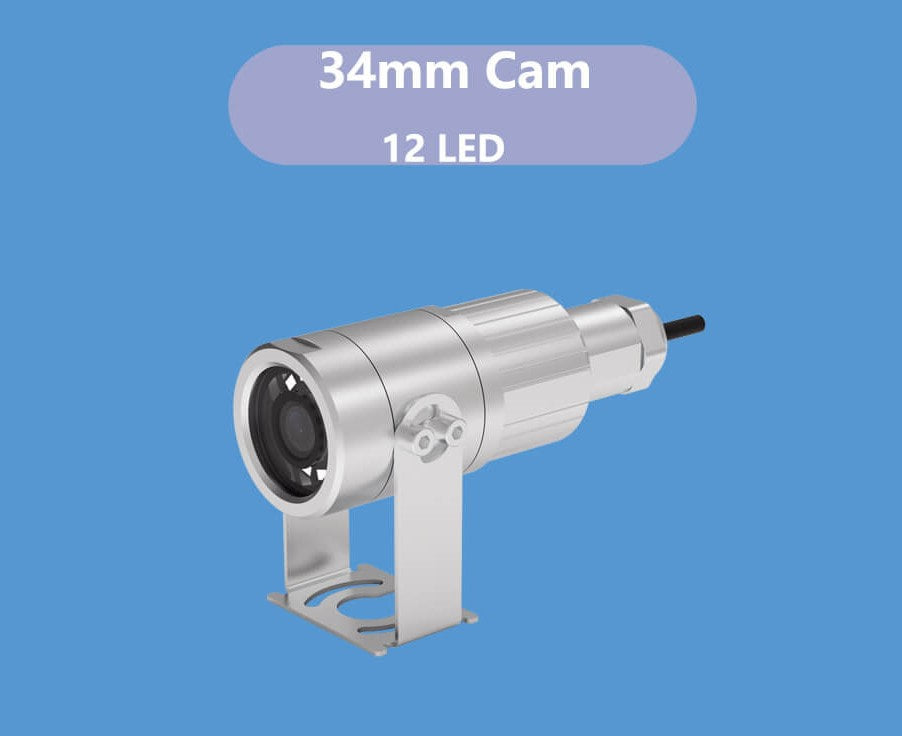

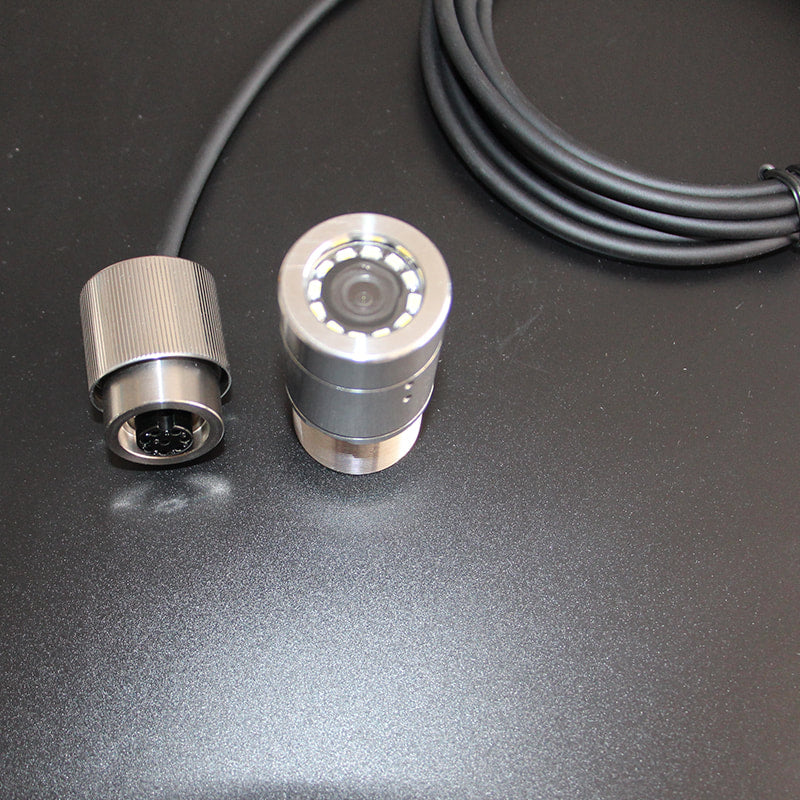

- LED lights: 12 LED lights
- Operating Conditions: -20 °C - 60 °C
- Power Supply: DC12V
- Power Consumption: 1W MAX
- Dimension: Φ34*59mm（end with connector）

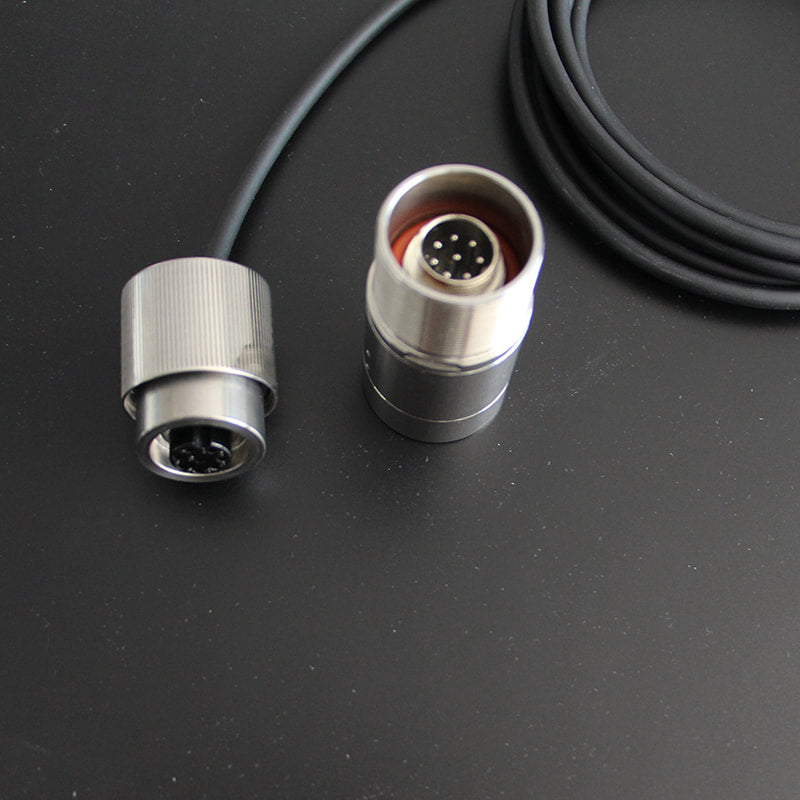

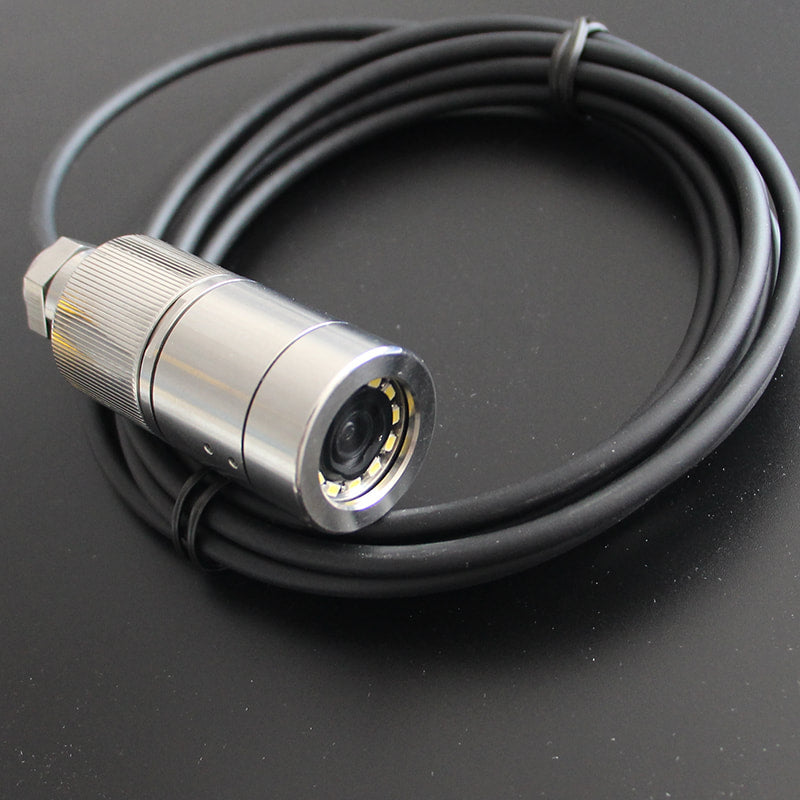

- Cable :20m standard (Customizable up to 200m. Contact us for customization)
Pictures taken with UWC-3405 camera:
In total darkness with the built-in LED lights on
