Vividia NP-0 Series 0.95mm to 2mm Flexible Small Diameter Video Borescope 5" Monitor

$3,499.00 USD ~~$4,999.98~~

Shipping calculated at checkout.

Probe diameter and length

2.8mm diameter 1.1m long probe (Model: NP-0-2811) 2mm diameter 1.1m long probe (Model: NP-0-2011) 1.8mm diameter 1.1m long probe (Model: NP-0-1811) 1.4mm diameter 1.1m long probe (Model: NP-0-1411) 0.95mm diameter 1m long probe (Model: NP-0-09510)

Product variants

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

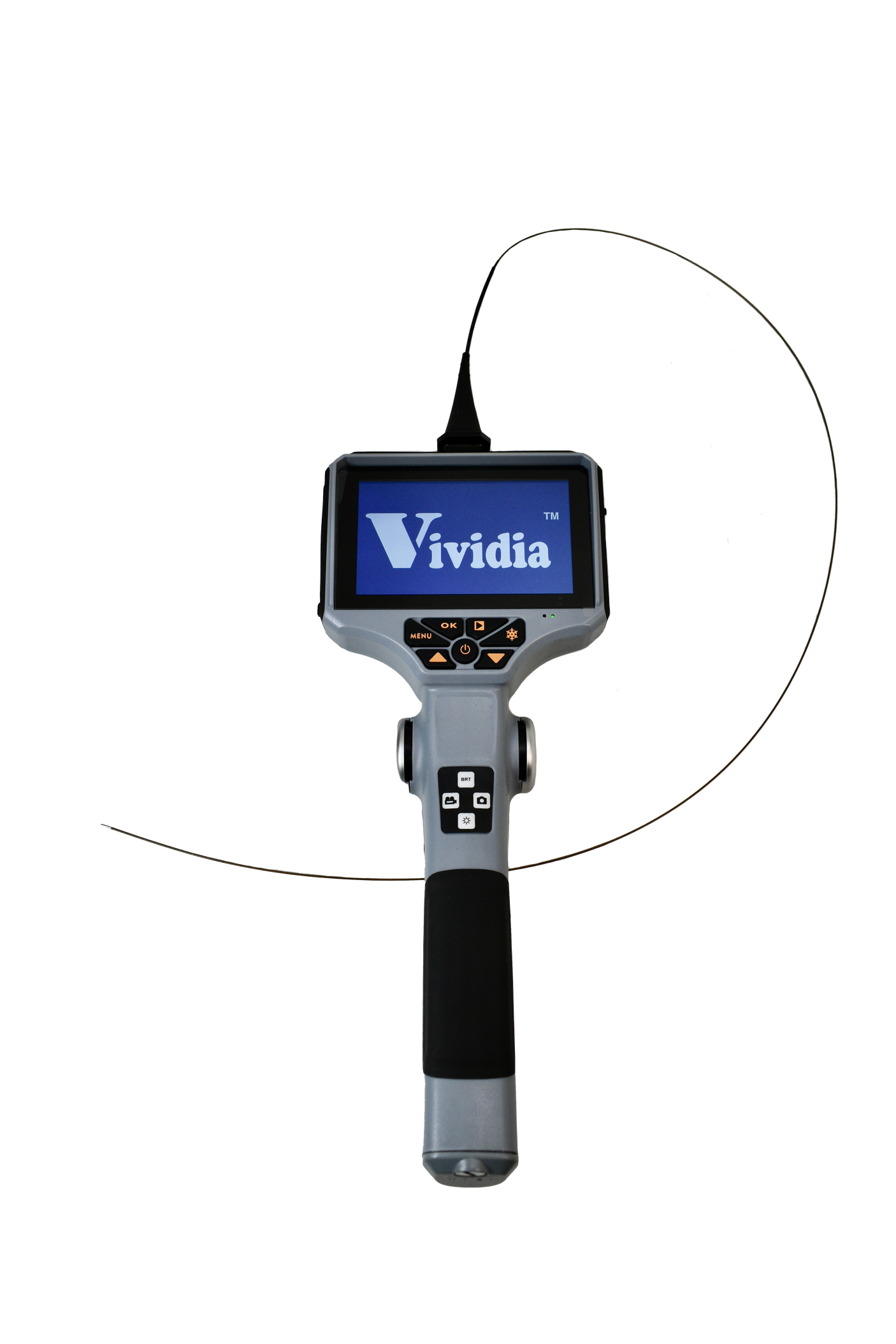

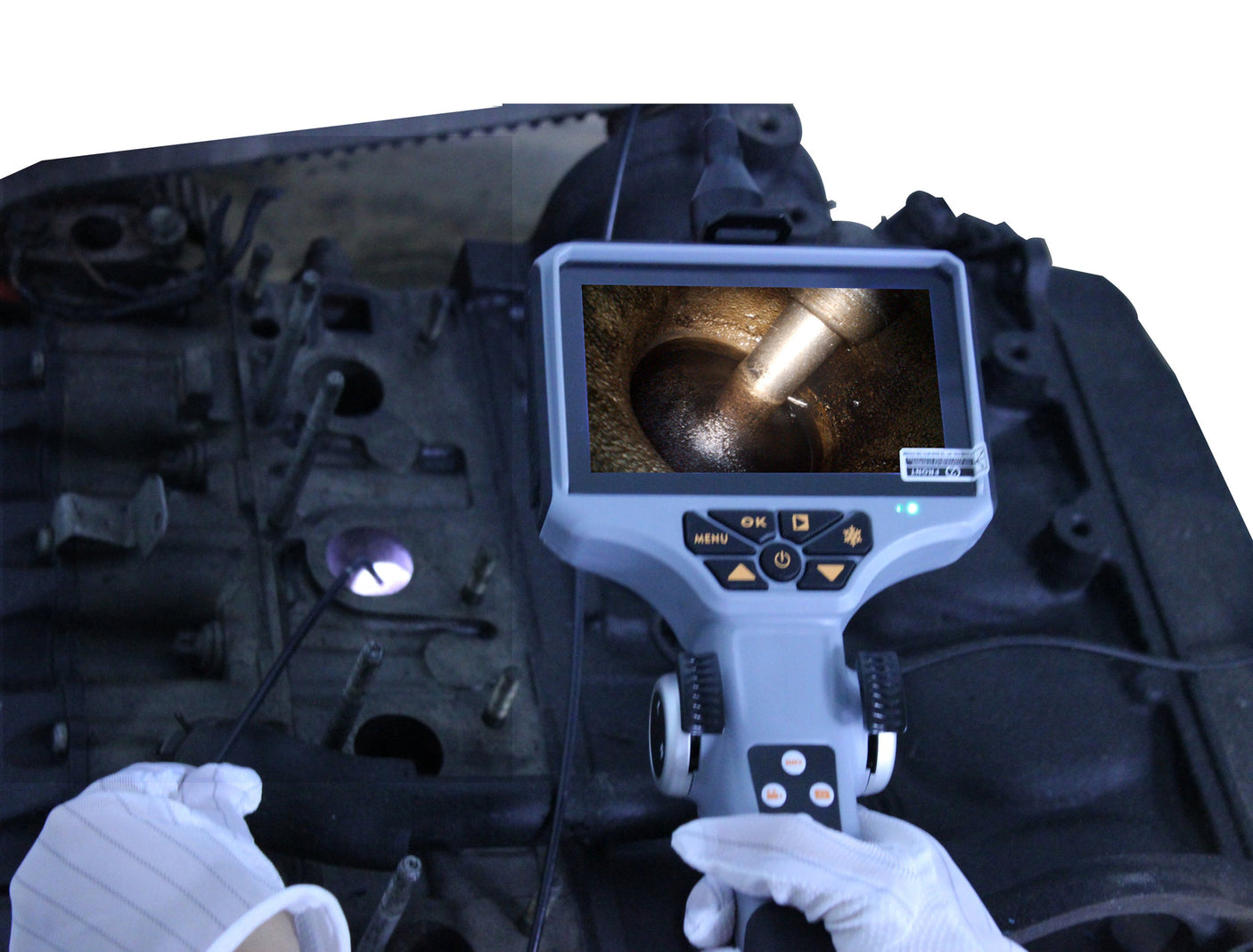

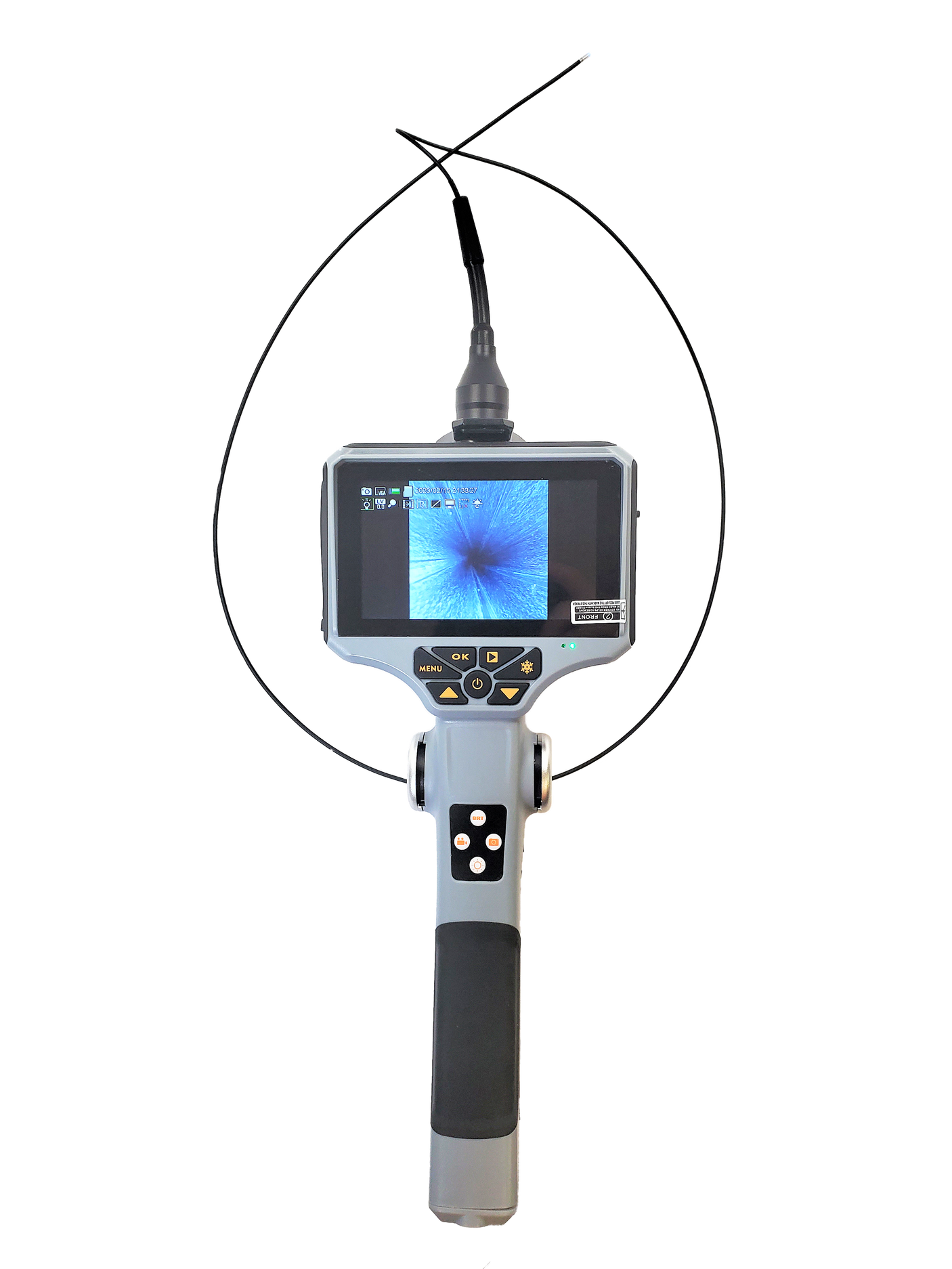

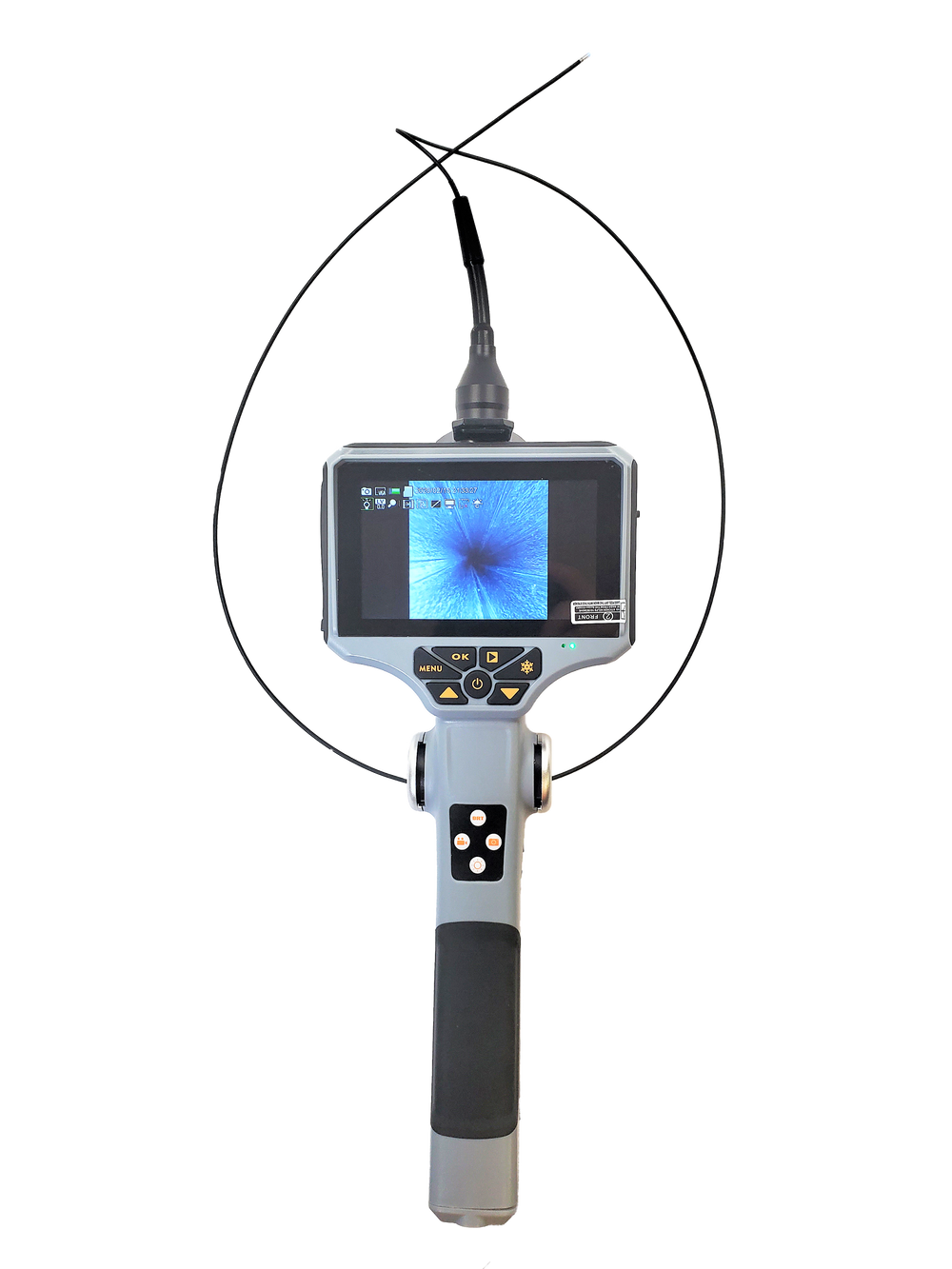

Vividia NP-0 Non-Articulation Flexible Borescope is a flexible non-articulation videoscope with 0.95mm, 1.4mm, 1.8mm, 2mm and 2.8mm diameter probe head and 1.1 meter long probe insertion tube. NP-2020 has 2 meter long probe. The camera resolution is from 400x400 to 1080x720 (depending on the camera head size) and the LCD monitor has 5" screen with snapping and recording functions. The photos and videos are saved on a SD card. The probe is waterproof and protected with metal braided mesh layers for wear and tear in harsh industrial environments. Vividia NP-2011 borescope is a good choice for applications where articulation feature is not required, but small diameter camera is essential.

NP-0 Series small diameter video borescopes have the following models:

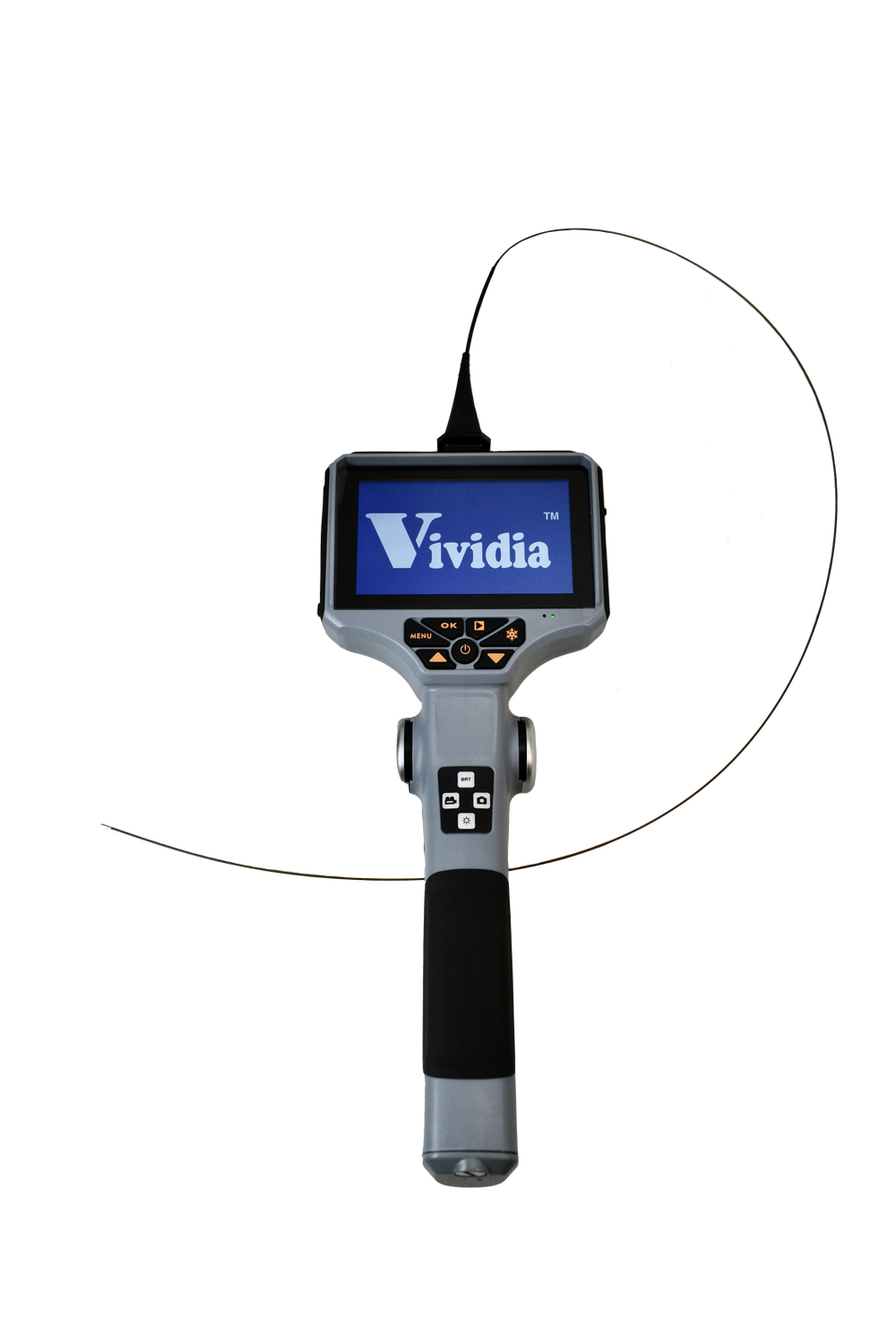

NP-0-09510, 0.95mm / 0.037" diameter, 1m long flexible probe covered with polyimide tube
NP-0-1411, 1.4mm / 0.055" diameter, 1.1m long flexible probe with tunsten braided layer and PTFE protective tube
NP-0-1811, 1.8mm / 0.071" diameter, 1.1m long flexible probe with tunsten braided layer and PTFE protective tube
NP-0-2011, 2.0mm / 0.078" diameter, 1.1m long flexible probe with tungsten braided layer
NP-0-2811, 2.8mm diameter, 1.1m long flexible probe with tungsten braided layer

* All probes are exchangeable. And replacement or spare probes are available for purchase.

* Larger the camera head diameter, brighter the lighting, higher the image resolution, stronger the probe, and more durable the insertion tube. So choose the largest diameter video borescope that can meet your application requirements.

* If you need a shorter or longer probe, contact us for customerization. It is possible to make much longer probe as needed.

* For USB output options, choose the CX-0 series. The CX-0 series non-articulaiton flexible borescopes has no display, can be connected to a PC, tablet or phone. NP-0 series has a 5" monitor.

Main features of NP-0 series small diameter video borescopes:

From 0.95mm diameter to 2.8mm diameter
1m long flexible probe
Camera resolution from 400x400 to 720x720
Built-in light source and optical fiber light guide

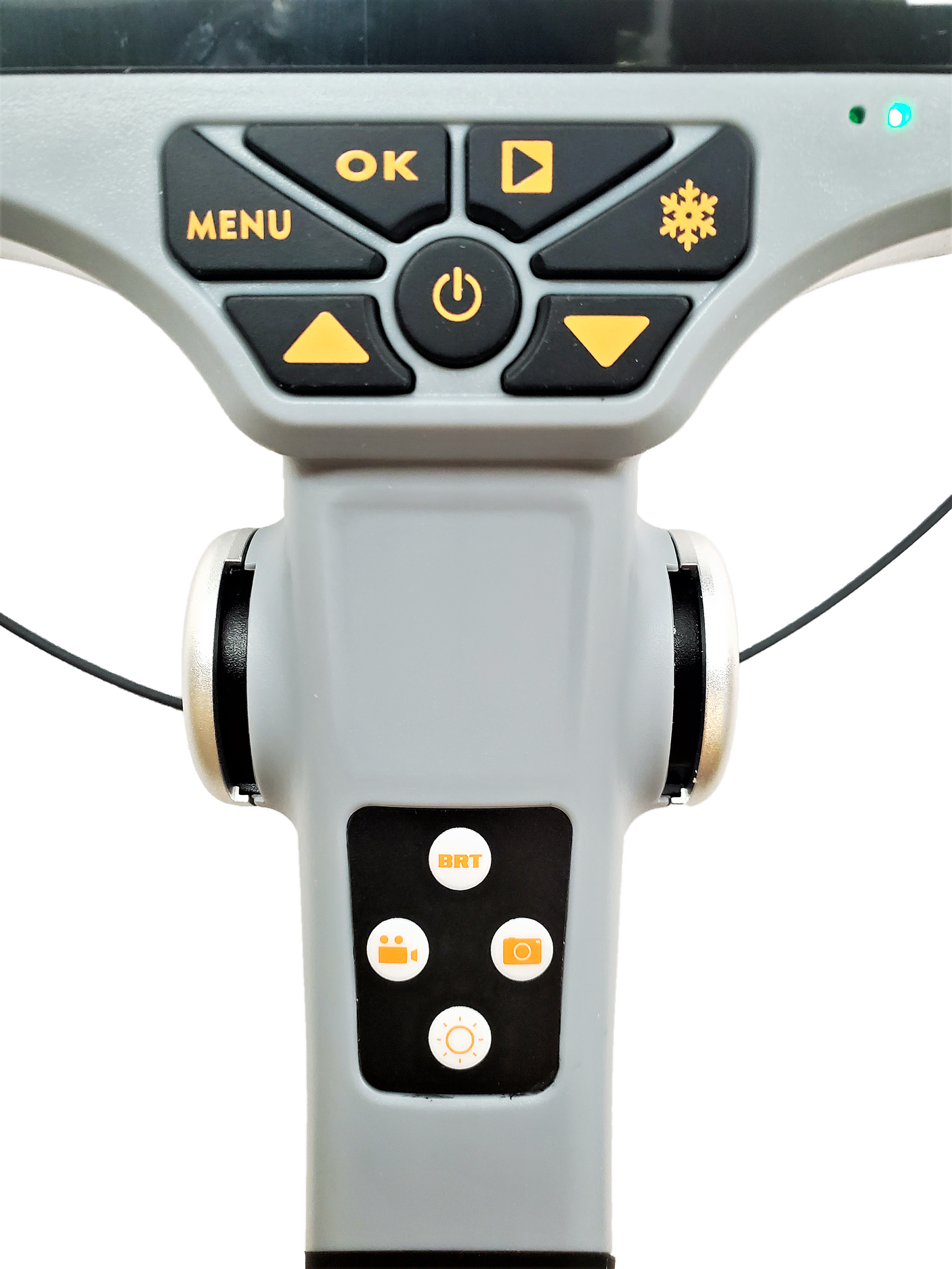

5" LCD monitor for preview, picture and video

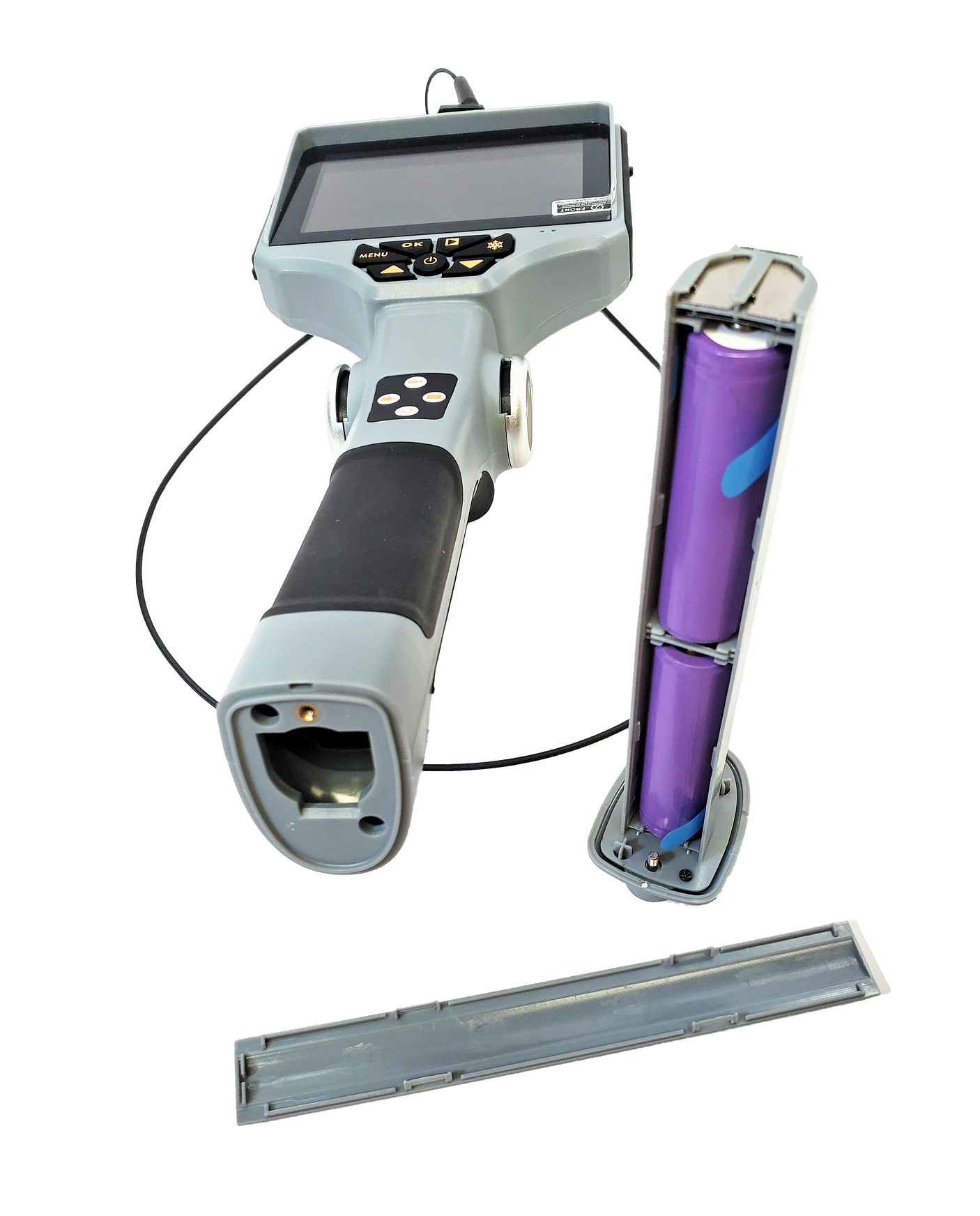

Rechargeable battery

More pictures:

Here is video taken with NP-0-09510 video borescope:

And another video taken with NP-0-1411 borescope, 1.4mm diameter:

A short video about NP-0-2011 and a clip of video taken with NP-0-2011:
