Vividia C-360WP39 Replacement Pan Tilt Camera Head for TVS-360-WP Pole Inspection Camera
Vividia C-360WP39 Replacement Pan Tilt Camera Head for TVS-360-WP Pole Inspection Camera - Aluminum alloy waterproof PT camera head (Part #: C-360WP39AL) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Products in stock will ship within 48 hours of order. All orders in the domestic United States over $70 will receive free shipping, while costs for other areas will be calculated by distance and weight.
Vividia C-360WP39 Replacement Pan Tilt Camera Head for TVS-360-WP P...

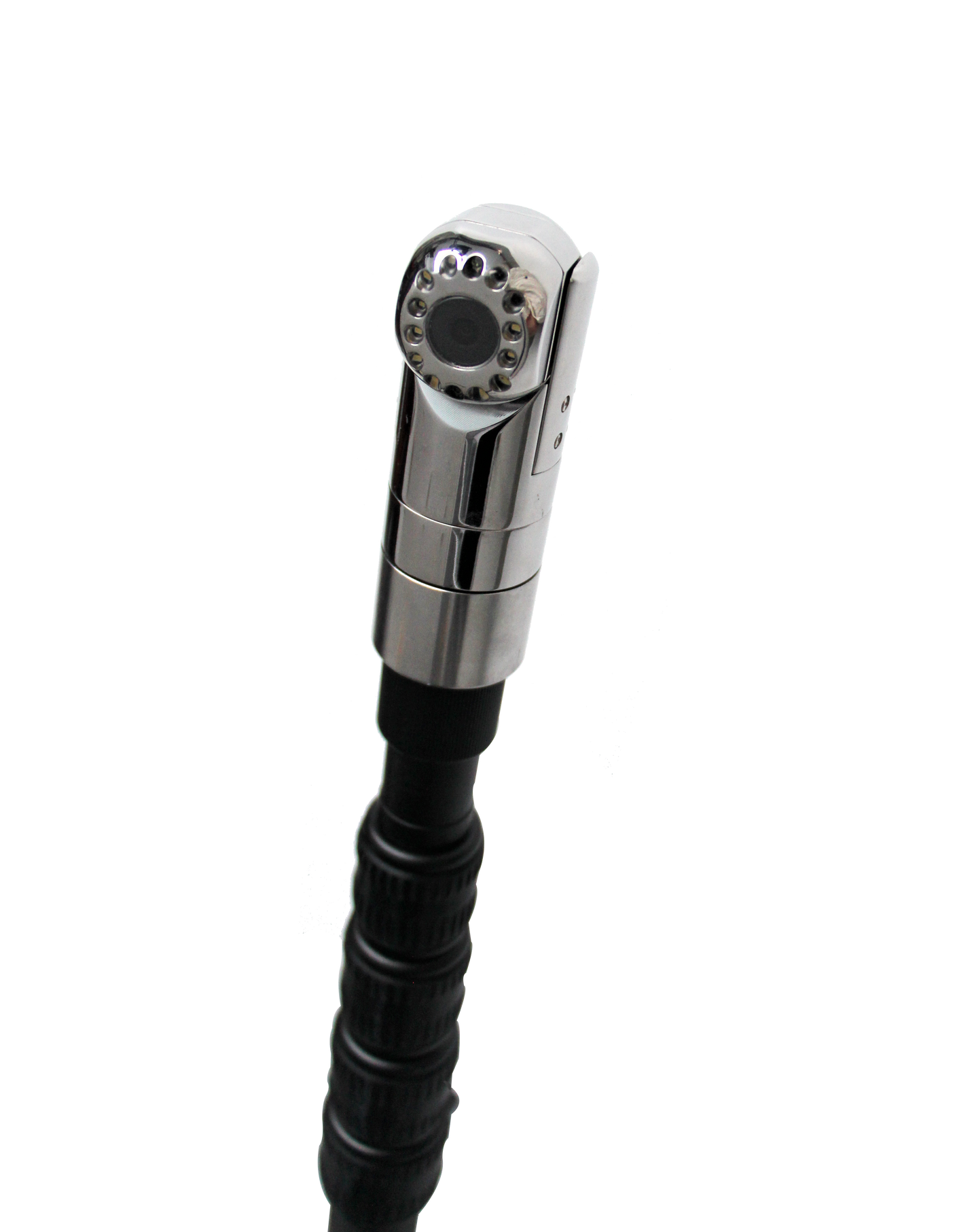

These are the replacement camera head for TVS-360-WP50 and TVS-360-WP85.
There are two type of pan-tilt camera heads

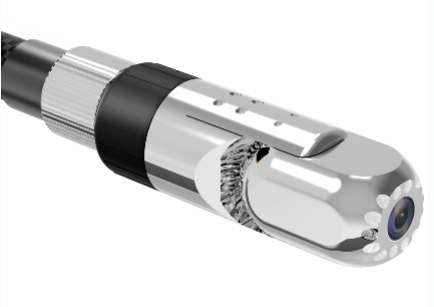

- Stainless steel type (Part #: C-360WP39SS)

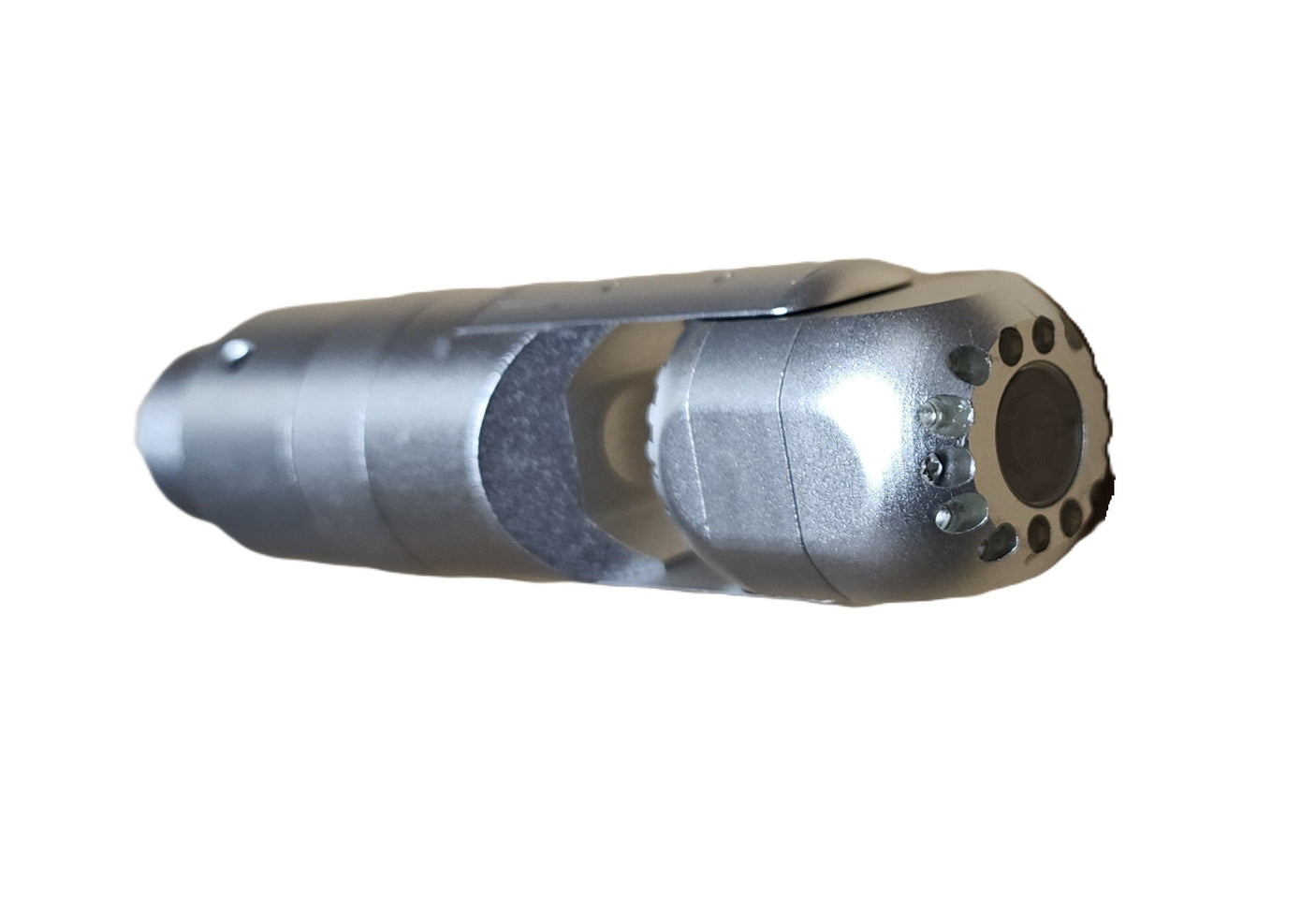

- Aluminum alloy type (Part #: C-360WP39SS)
The camera heads specs are the same, only the contruction materials are different and the totoal weights are different.
Camera Head:

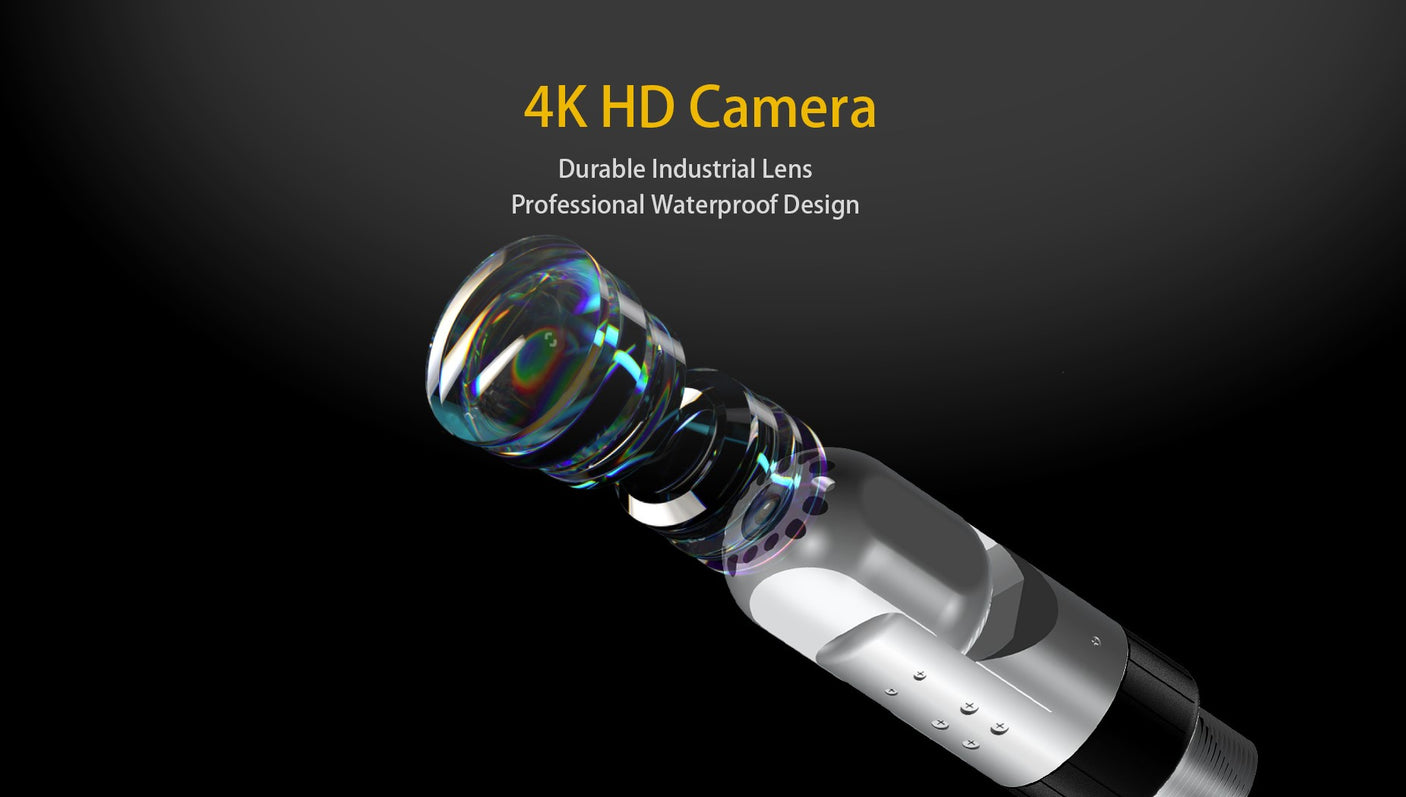

Sensor: CMOS, Sony
Resolution: 5MP, 2560×1944

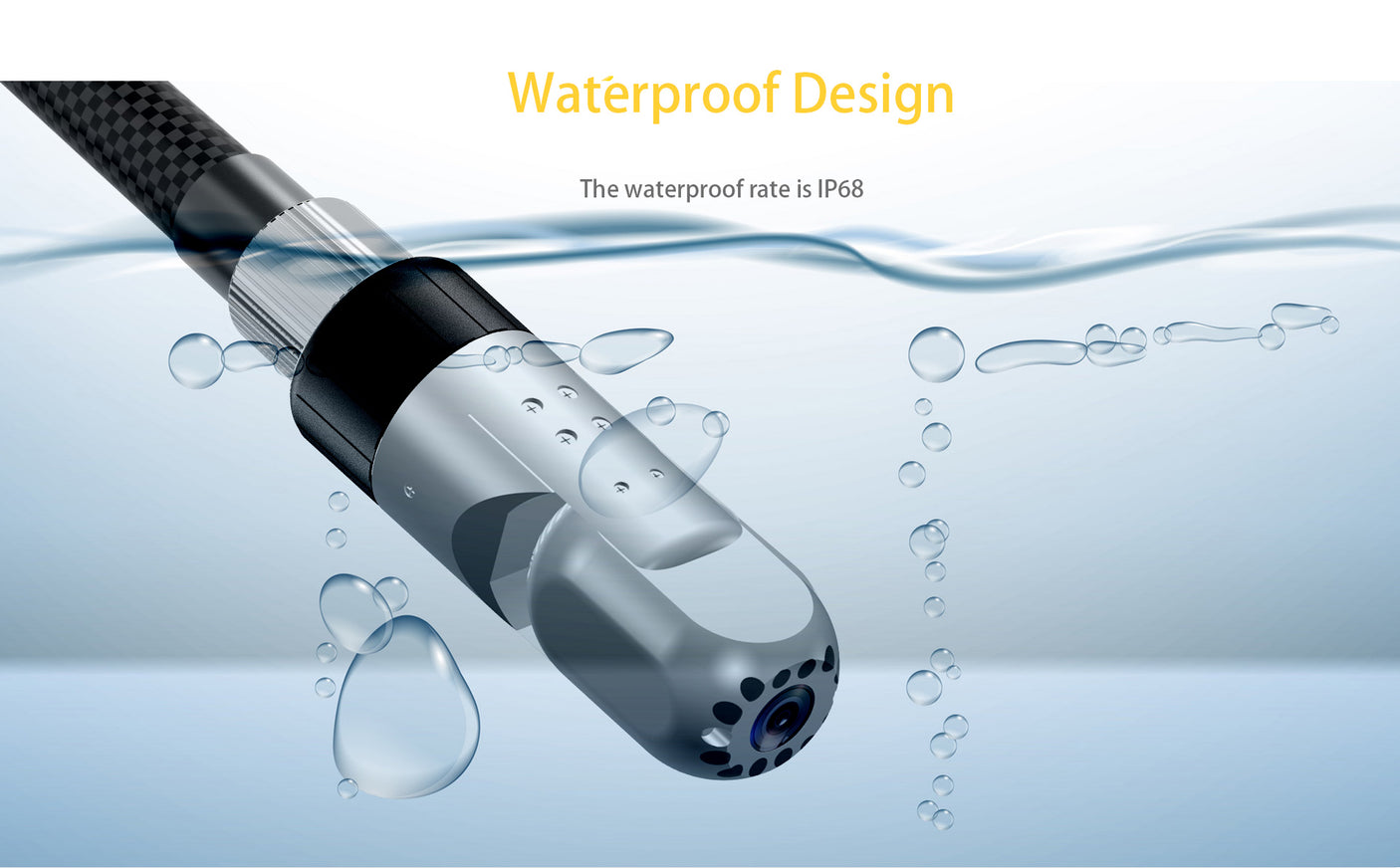

Waterproof rating: IP68, underwater ~5m
Camera housing: 304 stainless steel for C-360WP39SS; Aluminum alloy for C-360WP39AL
Lighting" 12 LED white light -7 brightness levels

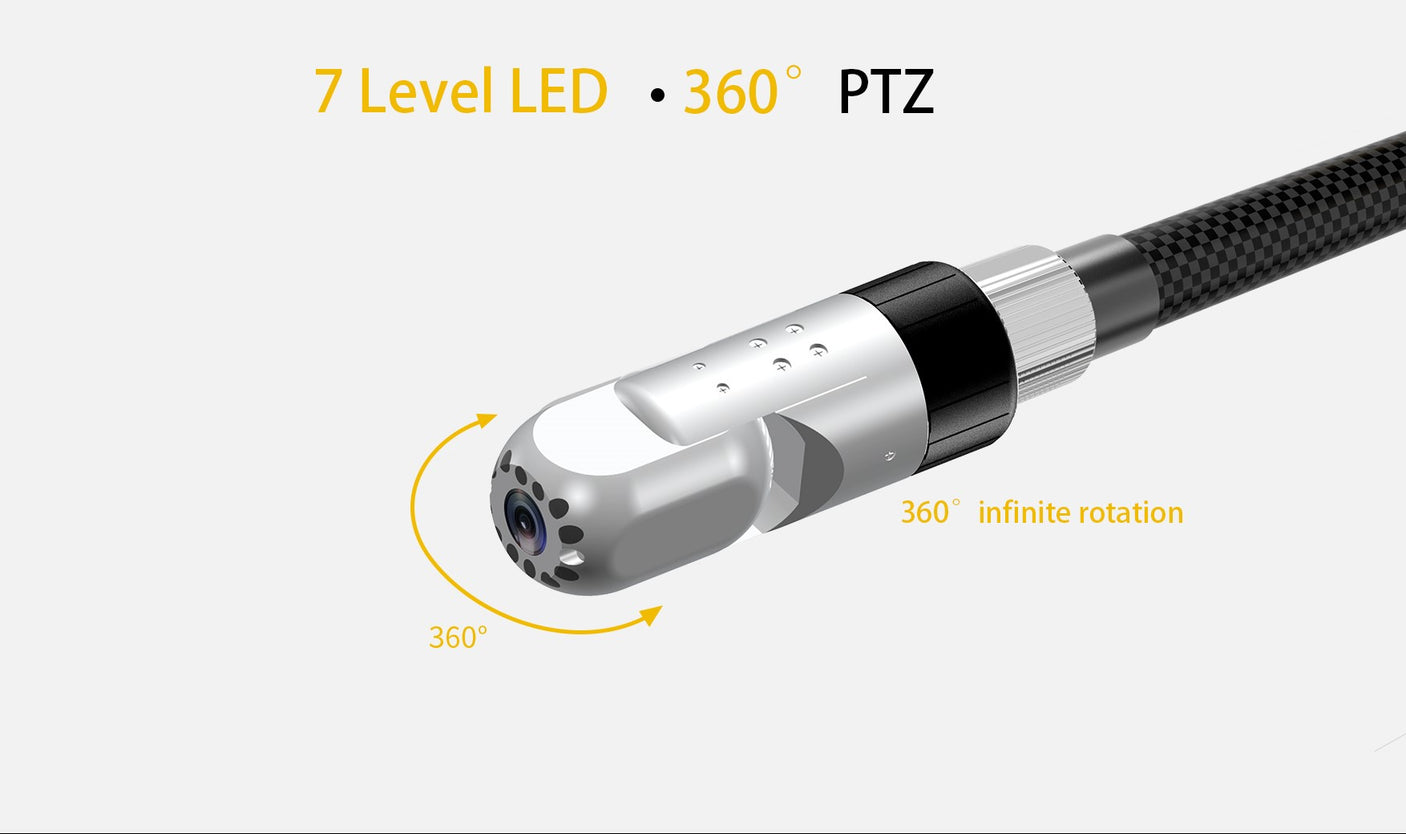

Pan & Tilt: Pan 360° continuous, Tilt ~180°
Rotation Rate: 10r/min (fixed speed)
FOV: 128 degrees
Focus range: 0.3m to 10m (fixed focus)
Camera diameter: 39mm / 1.54"
Camera head length: 42mm / 1.65"
Weight of camera: 1.5lbs for stainless steel version; 0.7lbs for the aluminum version.
