Oasis Scientific  |  SKU: B-AV-YE8010

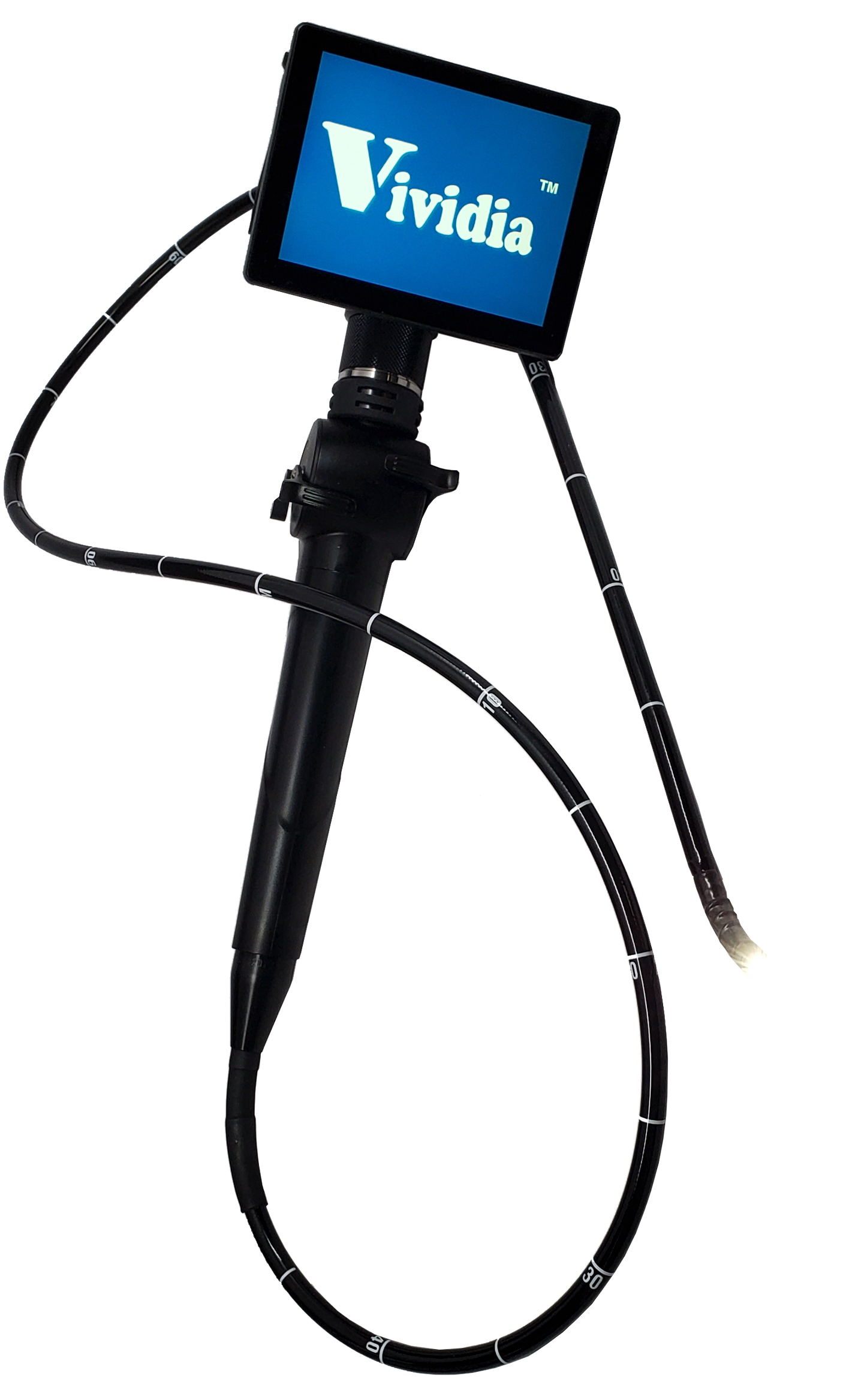

Vividia YE-4-8015 Portable Veterinary Flexible 4-Way Articulating Video Endoscope with 8mm Probe and 2.6mm Working Channel

$4,899.00 USD
Shipping calculated at checkout.
Probe Length Options

Delivery and Shipping

Products in stock will ship within 2 days of order placement. All orders in the domestic United States over $75 will receive free shipping, while costs for other areas & purchases under $75 will have shipping calculated by distance and weight.

Total four choices for 8mm Endoscopes:

YE-4-8010       1.0m long peobw for air way endoscopy
YE-4-8015       1.5m long  probe for air way endoscopy
YE-4-8030       3m long probe for horse gastroscopy
YE-4-8035       3.5m long probe for horse gastroscopy

Vividia YE-4-8015 Four-Way Articulating Veterinary Endoscope Videoscope Borescope Inspection Camera.is specially designed to be used by veterinarians on animals, such as horse, cows, pig, dog, cat, and sheep. The YE-4-8015 4-Way Articulating Veterinary Endoscope Videoscope has a replaceable 4-way articulation probe, which is 1.5 meter long and the diameter is 8mm, and working channel has inner diameter of 2.8mm. Air and water can be delivered through air/water valve. The out layer of the probe is covered with medical-grade polyethylene tubing. The rotatable 5" LCD monitor can display live video. Pictures and videos can be saved on a microSD card. The resolution of the camera is 1280x720 and the built-in 5W white LED light source deliver illumination to the front of probe camera by optical fibers.

One application for Vividia YE-4-8015 is equine upper airway endoscopy for horses. Another industrial application is for precision equipment where a plastic flexible probe is required to avoid unnecessary wear and tear from a metal probe.

Tech Specs:

Monitor:

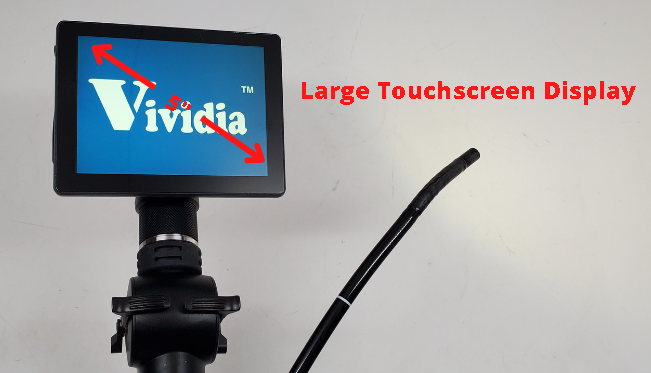

Screen Size                  5" LCD touchscreen
Screen Resolution         1280x720
Charging Port               Micro USB
File Storage                 TF Card max. 64GB
Video Output                HDMI port
Rechargeable Battery    Lithium 4200mAh
Image Selection           Mirror images; preview
Buttons:                      Menu; Video; Snap; BRT
Exposure Adjustment   Automatic
White Balance             Automatic
Brightness of LED        Manual adjustment
Languages                  10 supported languages
Weight                        0.7 kg

Probe:

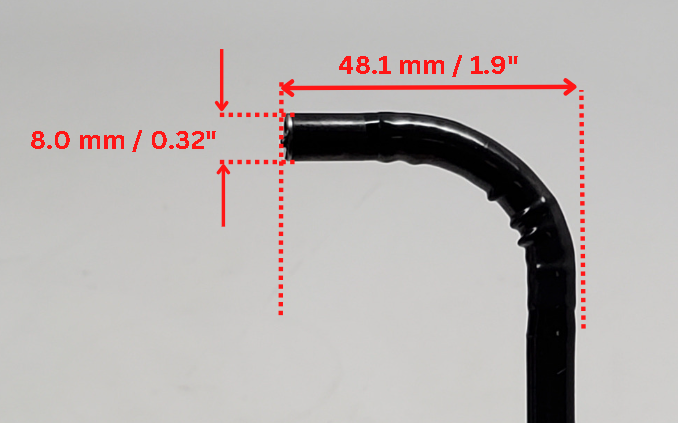

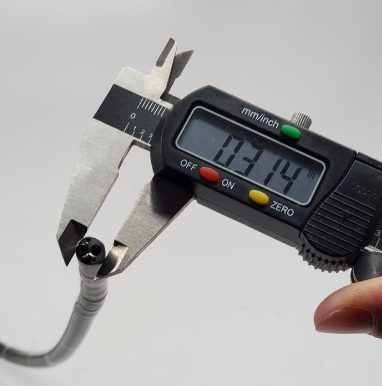

Probe diameter              8.0mm / 0.32"
Camera head length      13mm
Camera pixels               1280 x 720
Focus Range                 5mm to 100mm
View Angle                    90 degree
Articulating Directions   4-way; ~130 degree max. for each direction
Illumination:                 5W fiber optics built-in
Probe Length                1.5 meter / 5 ft
Probe out layer             Polyurethane tube, medical grade
Articulation radius        ~45mm max.
Work channel                2.6mm
Water and air channel       Yes
Waterproof                      IP68
YE_series_user_manual.pdf
Download File

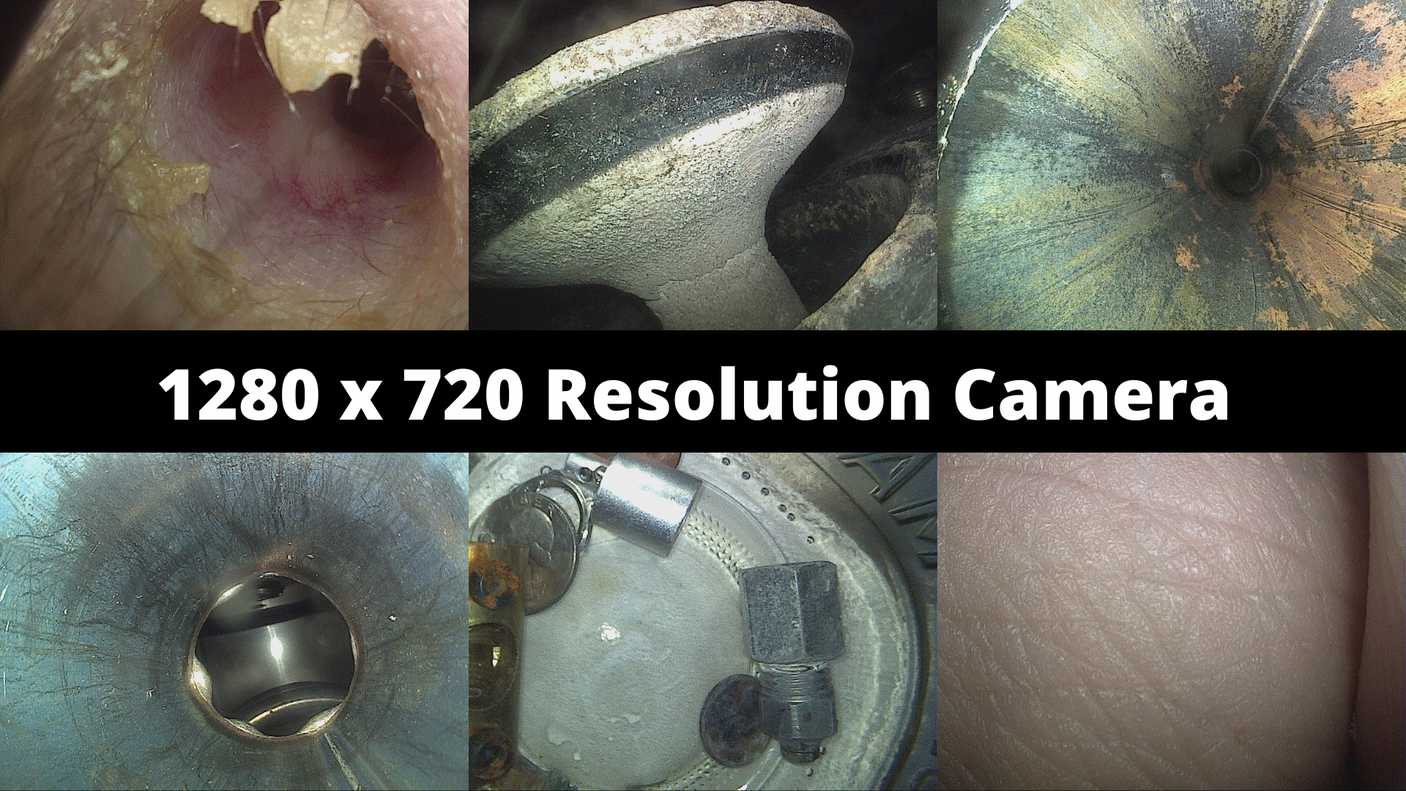

Pictures taken with Vividia YE-4-8015 endoscope:




A video about Vividia YE-4-8015:
